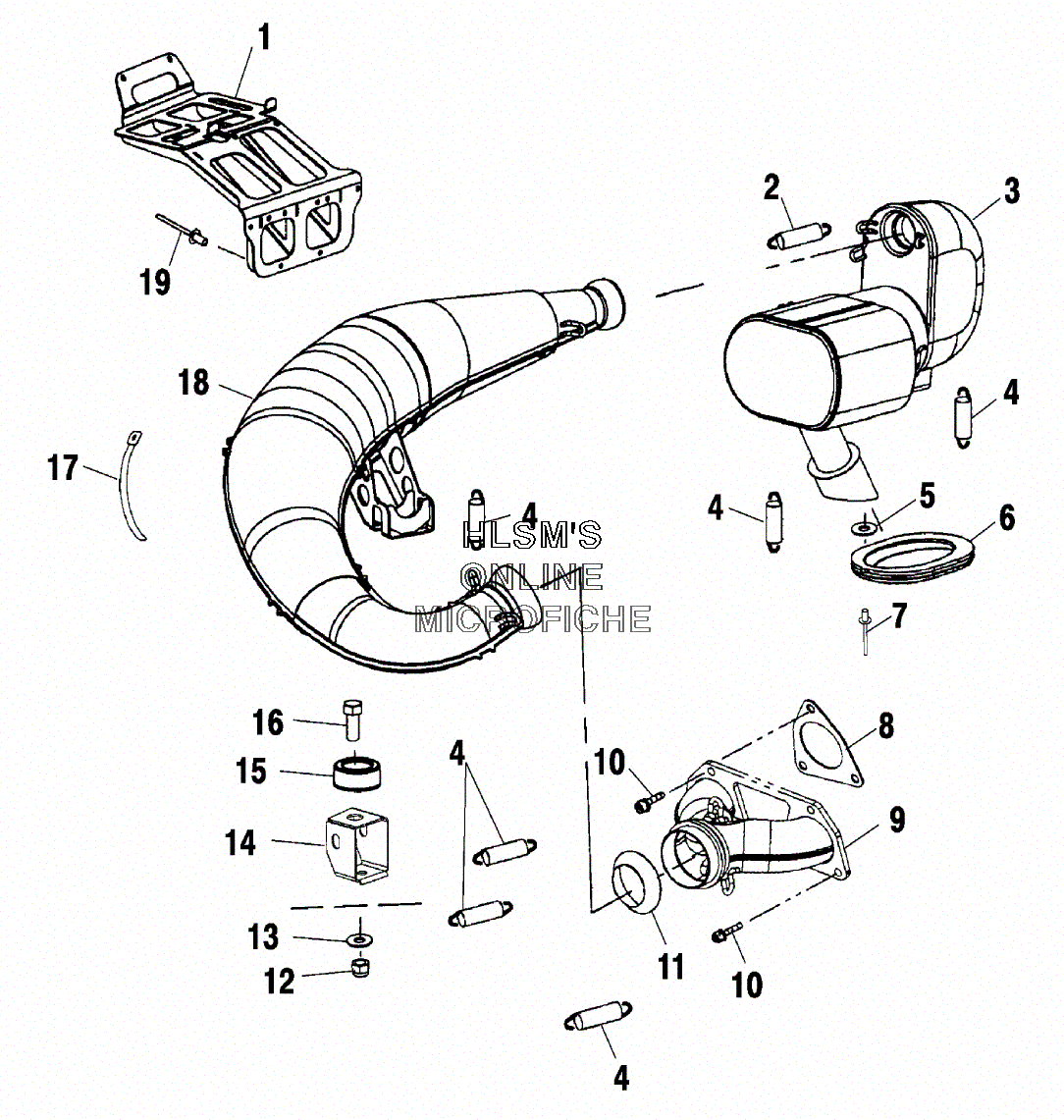

EXHAUST SYSTEM для Polaris 700 EV XC SP EDGE (S01NP7CS) - 2001 года выпуска
-
№АртикулНазвание
-
11261157-029 WELD, BRACKET CHASSIS/RESONATOR, (BK)WELD, BRACKET CHASSIS/RESONATOR, (BK)
-
27042029 SPRING, EXHAUSTSPRING, EXHAUST
-
31261009-029 RESONATOR, (BLACK)RESONATOR, (BLACK)
-
47041687 SPRING, EXHAUSTSPRING, EXHAUST
-
57555904 BURR, RIVETBURR, RIVET
-
65411684 BOOT, EXHAUST, OUTLETBOOT, EXHAUST, OUTLET
-
77621467 RIVET, BLINDRIVET, BLIND
-
85811799 GASKET, EXHAUSTGASKET, EXHAUST
-
91261124-029 WELD, MANIFOLD, (BLACK)WELD, MANIFOLD, (BLACK)
-
107517322 SCREWSCREW
-
113610046 SEAL, EXH.SOCKETSEAL, EXH.SOCKET
-
127542451 NUT, NYLOCNUT, NYLOC
-
137556153 WASHER, (3/8 FW)WASHER, (3/8 FW)
-
145245498 BRACKET, CHASSIS/PIPEBRACKET, CHASSIS/PIPE
-
155433576 DAMPENER, VIBRATIONSDAMPENER, VIBRATIONS
-
167515440 BOLTBOLT
-
177080739 CLAMP, WORM (.44 X 3.13)CLAMP, WORM (.44 X 3.13)
-
177080740 CLAMP, WORM (.44 X 3.69)CLAMP, WORM (.44 X 3.69)
-
177080741 CLAMP, WORM (.44 X 4.25)CLAMP, WORM (.44 X 4.25)
-
177080742 CLAMP, WORM (.44 X 6.38)CLAMP, WORM (.44 X 6.38)
-
181261123 TUNED PIPE ASSY.TUNED PIPE ASSY.
-
185241720 COVER, TUNED PIPE, TOPCOVER, TUNED PIPE, TOP
-
185245403 COVER, TUNED PIPE, TOPCOVER, TUNED PIPE, TOP
-
185830111 MATTE, SOUNDMATTE, SOUND
-
185830209 MATTE, SOUND, BOTTOMMATTE, SOUND, BOTTOM
-
197661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
