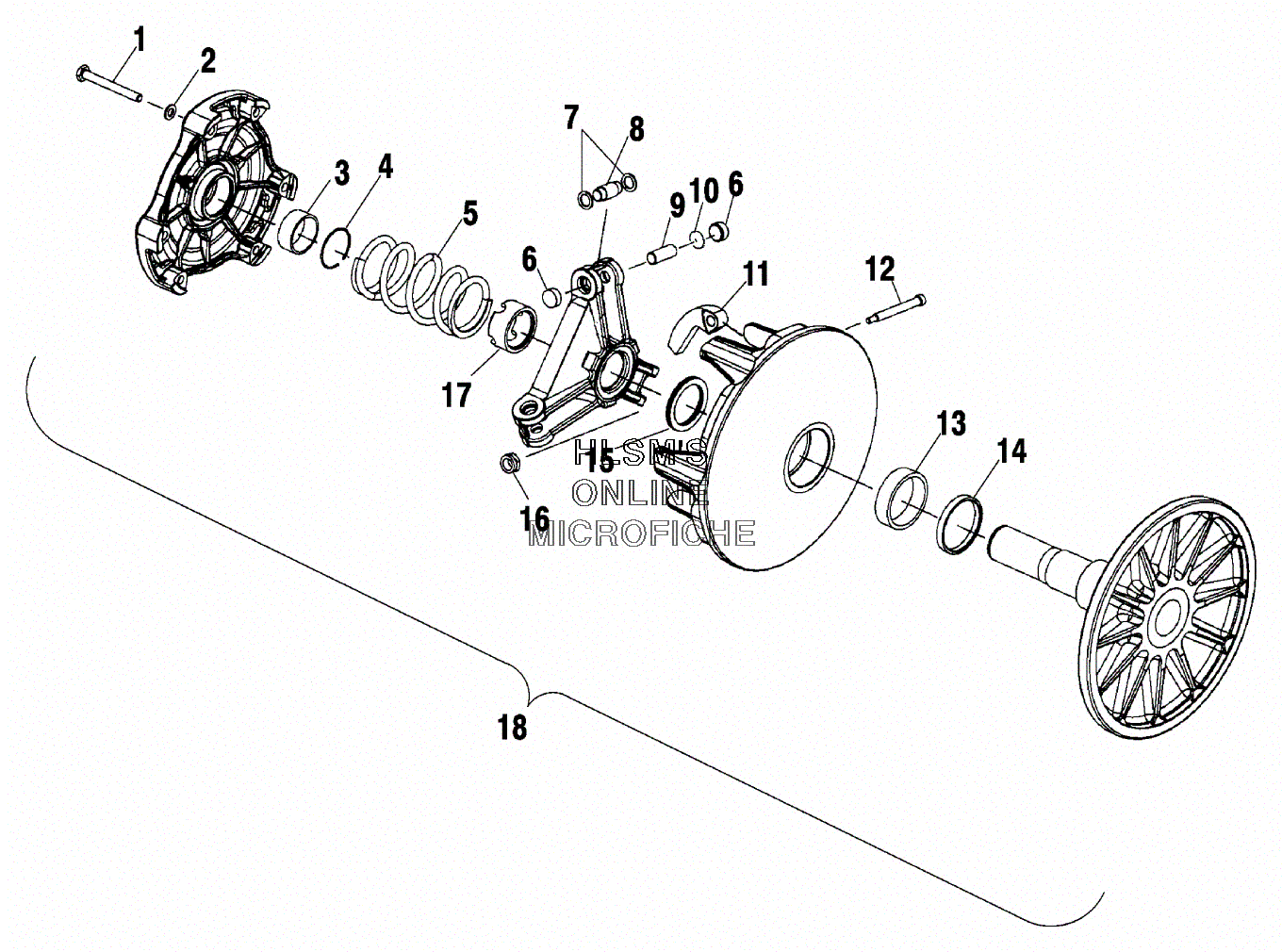

CLUTCH - DRIVE для Polaris 700 EV XC SP EDGE (S01NP7CS) - 2001 года выпуска

№

Артикул

Название
1

7512265 BOLT

BOLT

630 ₽
2

7552801 LOCK WASHER

LOCK WASHER

460 ₽
3

3576516 COVER, BEARING, (GARMAX)

COVER, BEARING, (GARMAX)

4 160 ₽
4

7710417 RING, RETAINING, BOLT

RING, RETAINING, BOLT

150 ₽
5

7041988 SPRING, CLUTCH DRIVE (ALMOND/RED)

SPRING, CLUTCH DRIVE (ALMOND/RED)

9 780 ₽
6

5430445 BUTTON, GUIDE

BUTTON, GUIDE

1 460 ₽
7

5430945 WASHER

WASHER

420 ₽
8

1321622 ROLLER AND BUSHING ASSY.

ROLLER AND BUSHING ASSY.

8 110 ₽
9

5020422 PIN, ROLLER

PIN, ROLLER

670 ₽
10

2200387 SHIM, DRIVE CLUTCH KIT

SHIM, DRIVE CLUTCH KIT

2 910 ₽
11

1321586 WT/BUSH. ASSY., (10, 62)

WT/BUSH. ASSY., (10, 62)

6 240 ₽
12

7515105 PIN, WT., HARDENED

PIN, WT., HARDENED

1 870 ₽
13

3576502 SLEEVE, BEARING

SLEEVE, BEARING

4 990 ₽
14

5010188 BUSHING, RETAINER

BUSHING, RETAINER

1 520 ₽
15

5210754 SPACER (.050MM)

SPACER (.050MM)

580 ₽
15

5210753 SPACER (.032MM)

SPACER (.032MM)

420 ₽
15

5242981 SPACER (.025MM)

SPACER (.025MM)

260 ₽
15

5210752 SPACER (.020MM)

SPACER (.020MM)

110 ₽
16

7541906 NUT FLEX LOC

NUT FLEX LOC

250 ₽
17

5020425 NUT, JAM

NUT, JAM

4 370 ₽
18

1321928 DRIVE CLUTCH ASSY., BASIC, (114 W/B) (INCL. ALL LESS 5, 11)

DRIVE CLUTCH ASSY., BASIC, (114 W/B) (INCL. ALL LESS 5, 11)

122 780 ₽
