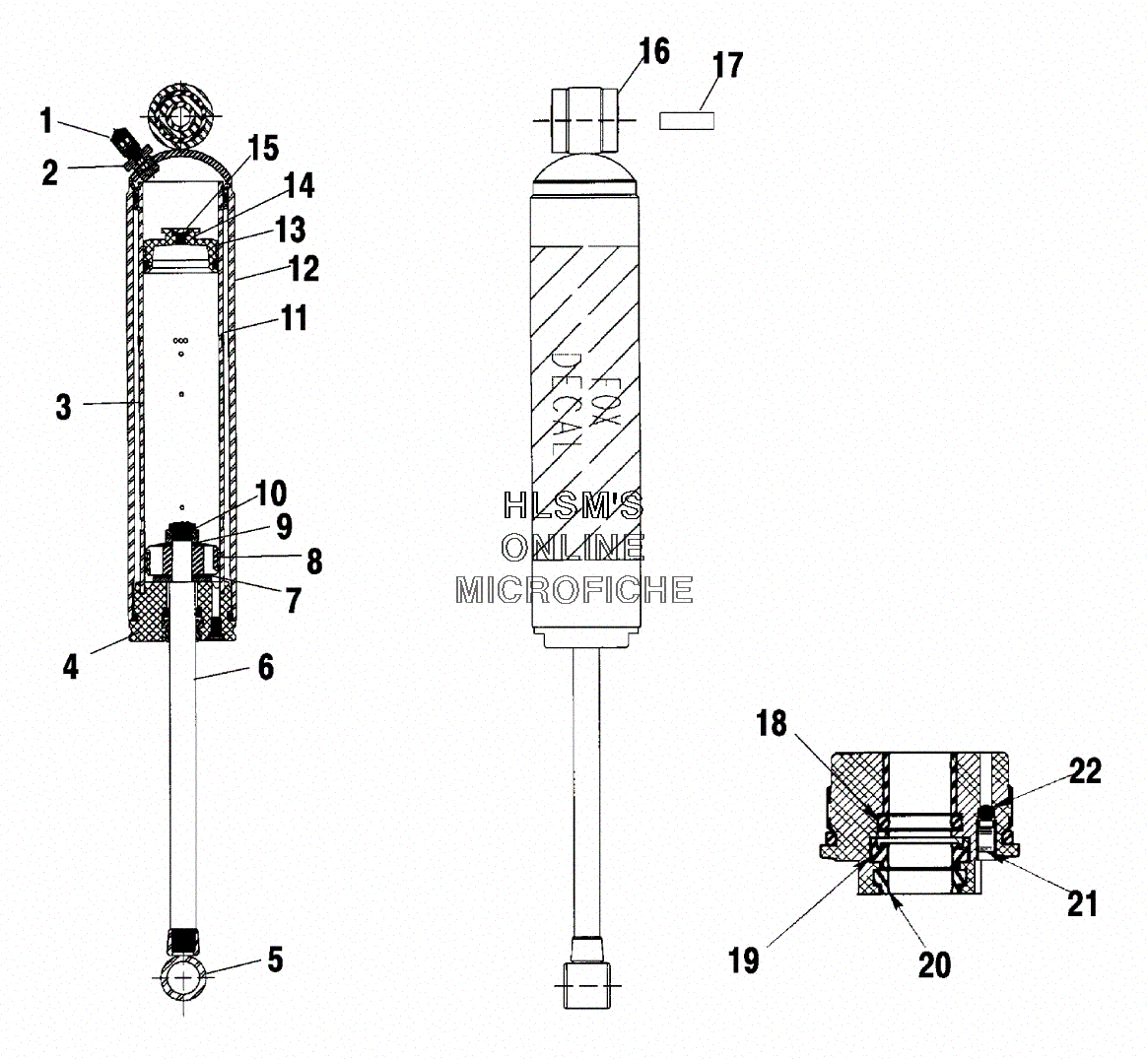

SUSPENSION - FOX SHOCK - GAS- REAR TRACK для Polaris 700 EV XC SP EDGE (S01NP7CS) - 2001 года выпуска
-
№АртикулНазвание
-
1A7041846 SHOCK, (R/T, FOX, PPS)SHOCK, (R/T, FOX, PPS)
-
11500210 CAP, SHRADER VALVECAP, SHRADER VALVE
-
21500206 VALVE, AIR, COMPLETEVALVE, AIR, COMPLETE
-
21500019 SCREWSCREW
-
21500023 O-RING, OUTERO-RING, OUTER
-
31500306 VALVE, CHECK, (NBR DURO A 90)VALVE, CHECK, (NBR DURO A 90)
-
41500334 BEARING, W/P.S. GROOVEBEARING, W/P.S. GROOVE
-
51500302 EYELET, (.88W 1.38TLG 808-05-002)EYELET, (.88W 1.38TLG 808-05-002)
-
61500333 SHAFT, (.5X8.35 TLG)SHAFT, (.5X8.35 TLG)
-
71500017 PLATE, TOP OUTPLATE, TOP OUT
-
81500002 DAMPER, PISTONRING, FOXDAMPER, PISTONRING, FOX
-
91500015 BUSHING, BACKUPBUSHING, BACKUP
-
101500016 NUT, LOCKNUT, LOCK
-
111500331 BODY, ASSY., (INNER P.S.)BODY, ASSY., (INNER P.S.)
-
121500332 BODY, ASSY., (OUTER P.S.)BODY, ASSY., (OUTER P.S.)
-
131500006 RING, PISTON, FLOATING, FOXRING, PISTON, FLOATING, FOX
-
141500187 PISTON, FLOATINGPISTON, FLOATING
-
141500018 SCREWSCREW
-
141500022 O-RING, DRUM OUTERO-RING, DRUM OUTER
-
151500161 SCREW/O-RING ASSY.SCREW/O-RING ASSY.
-
161500307 BUSHING, (.35ILG, .63TLG)BUSHING, (.35ILG, .63TLG)
-
171500311 SLEEVE, (.56X.81X1.28)SLEEVE, (.56X.81X1.28)
-
181500021 O-RING INNERO-RING INNER
-
191500266 U-CUP, (4300 URETH, 036-01-006)U-CUP, (4300 URETH, 036-01-006)
-
201500024 WIPER, CLR, OUTERWIPER, CLR, OUTER
-
211500070 SCREWSCREW
-
221500071 BALL, (FOX)BALL, (FOX)
