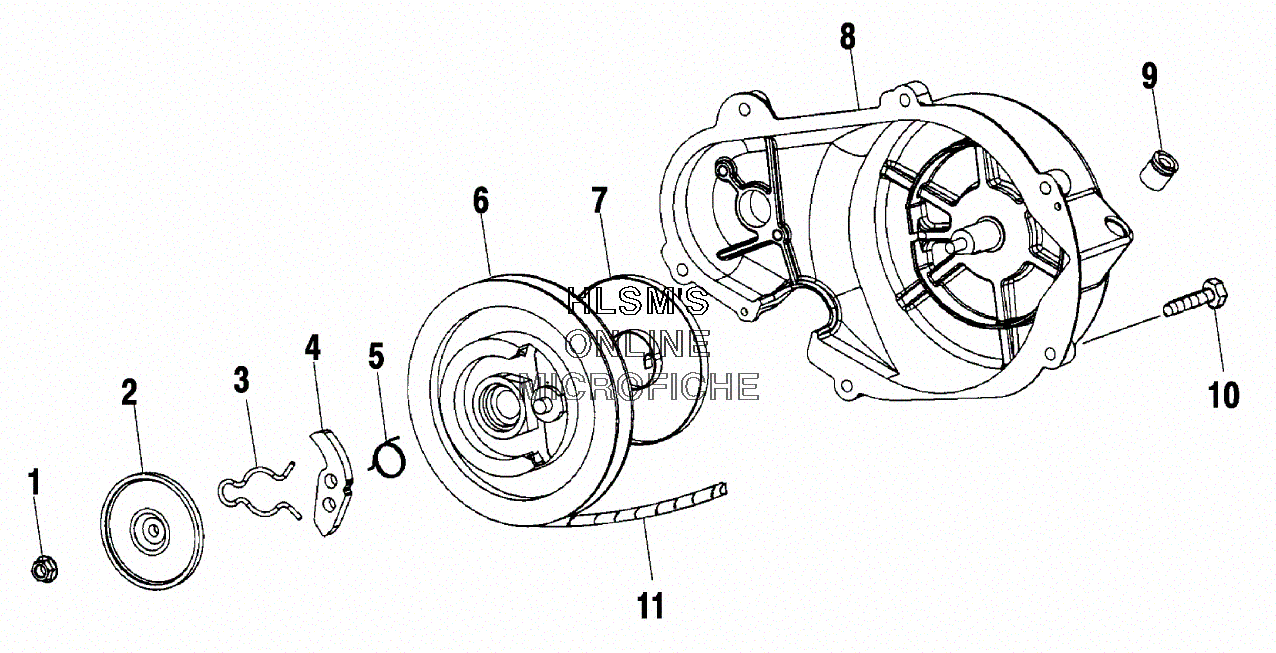

STARTER - RECOIL ASSEMBLY для Polaris 700 EV XC SP EDGE (S01NP7CS) - 2001 года выпуска
-
№АртикулНазвание
-
1A1201814 RECOIL ASSY. (INCL. 1, 9, 11 AND STARTING PULLEY)RECOIL ASSY. (INCL. 1, 9, 11 AND STARTING PULLEY)
-
13083381 NUT, FLANGENUT, FLANGE
-
23083464 PLATE, FRICTIONPLATE, FRICTION
-
33083379 SPRING, FRICTIONSPRING, FRICTION
-
43040165 RATCHETRATCHET
-
53083463 SPRING, RETURNSPRING, RETURN
-
63040168 REELREEL
-
73083376 SPRING, SPIRALSPRING, SPIRAL
-
81201814 RECOIL E/R,SHEILD ASSY.RECOIL E/R,SHEILD ASSY.
-
93083107 GUIDE, ROPEGUIDE, ROPE
-
107516823 SCREWSCREW
-
113040169 ROPE, STARTERROPE, STARTER
