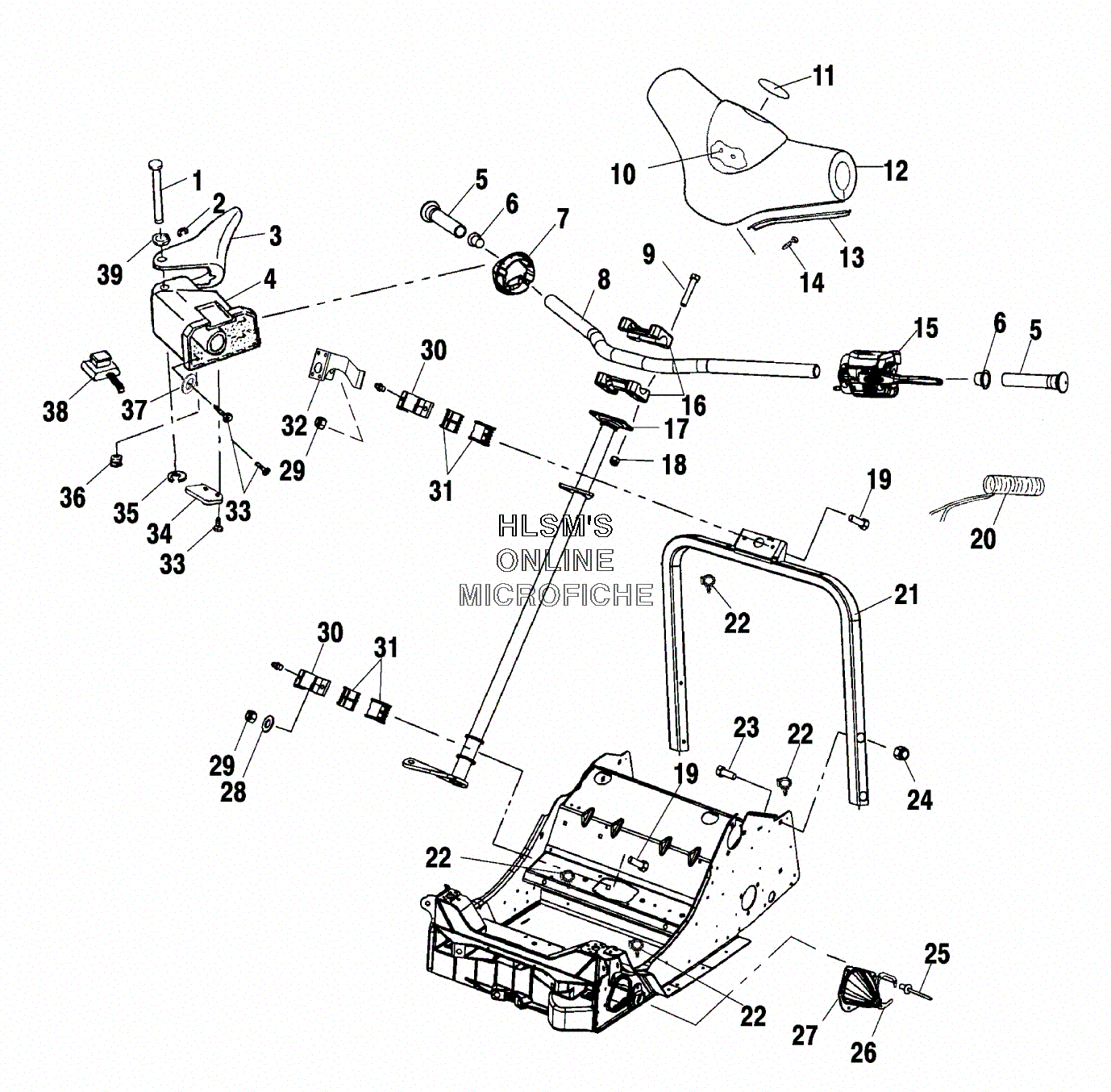

HANDLEBAR ASSEMBLY для Polaris 700 EV XC SP EDGE (S01NP7CS) - 2001 года выпуска
-
№АртикулНазвание
-
17661624 PIN, HINGEPIN, HINGE
-
27710503 RETAINING RINGRETAINING RING
-
35432970 THROTLE, LEVER, (35.5MM)THROTLE, LEVER, (35.5MM)
-
32010171 LEVER ASSY., (HTR, HI/LO 35.5MM)LEVER ASSY., (HTR, HI/LO 35.5MM)
-
45431592 BLOCK, THROTTLE/BRAKEBLOCK, THROTTLE/BRAKE
-
55432634 GRIP, H'BAR, SNOWGRIP, H'BAR, SNOW
-
65431096 PLUG, OVERFLOWPLUG, OVERFLOW
-
75433345 ADAPTER, BLOCK, THROTTLEADAPTER, BLOCK, THROTTLE
-
85243355-067 HANDLE BAR, (BLACK)HANDLE BAR, (BLACK)
-
97517238 SCREWSCREW
-
107670106 NUT, PUSH ON, .(170, .180, Y)NUT, PUSH ON, .(170, .180, Y)
-
115433754 EMBLEM, ''STAR'', CHR.BEZEL, HNDLBREMBLEM, ''STAR'', CHR.BEZEL, HNDLBR
-
125433159-070 COVER, HANDLEBAR, (BLACK)COVER, HANDLEBAR, (BLACK)
-
135433160-070 SLIDE, HANDLEBAR COVER, (BLACK)SLIDE, HANDLEBAR COVER, (BLACK)
-
144010287 DART, CLIP NYLON, (BLACK)DART, CLIP NYLON, (BLACK)
-
165630187-067 BLOCK, HANDLEBARBLOCK, HANDLEBAR
-
171820965-067 WELD, STEERING POST, EDGE, (BLACK)WELD, STEERING POST, EDGE, (BLACK)
-
187542122 NUT, LOCKNUT, LOCK
-
197517579 BOLT, CARR (5/16, X1''GR5 Y LO)BOLT, CARR (5/16, X1''GR5 Y LO)
-
202460677 HEATER, GRIP, LO/MED/HIHEATER, GRIP, LO/MED/HI
-
211013602-067 WELD, STEERING HOOP, (REV, BLACK)WELD, STEERING HOOP, (REV, BLACK)
-
224020139 CLIP, PLASTICCLIP, PLASTIC
-
237512377 BOLTBOLT
-
247542343 NUT, NYLOCKNUT, NYLOCK
-
257661637 RIVET, INTERLOCK, ZRIVET, INTERLOCK, Z
-
265244470 PLATE, TIE ROD BOOTPLATE, TIE ROD BOOT
-
275433532 BOOT, TIE ROD, (LEFT)BOOT, TIE ROD, (LEFT)
-
275433533 BOOT, TIE ROD, (RIGHT)BOOT, TIE ROD, (RIGHT)
-
287558402 WASHER STEELWASHER STEEL
-
297542324 NUTNUT
-
305131841 BRACKET, STEER.POSTBRACKET, STEER.POST
-
307080424 FITTING, LUBE.FITTING, LUBE.
-
315432785 BUSHING, STEER.POSTBUSHING, STEER.POST
-
325244829 BRACKET, CONSOLE SUPPORTBRACKET, CONSOLE SUPPORT
-
337511848 SCREW, SEMSSCREW, SEMS
-
345432261 HOLDER, WIREHOLDER, WIRE
-
357710401 'E' RING'E' RING
-
367512465 SCREWSCREW
-
377555727 RIVET BURRRIVET BURR
-
384110106 SWITCH, AUX.SHUT, OFFSWITCH, AUX.SHUT, OFF
-
397555730 WASHERWASHER
