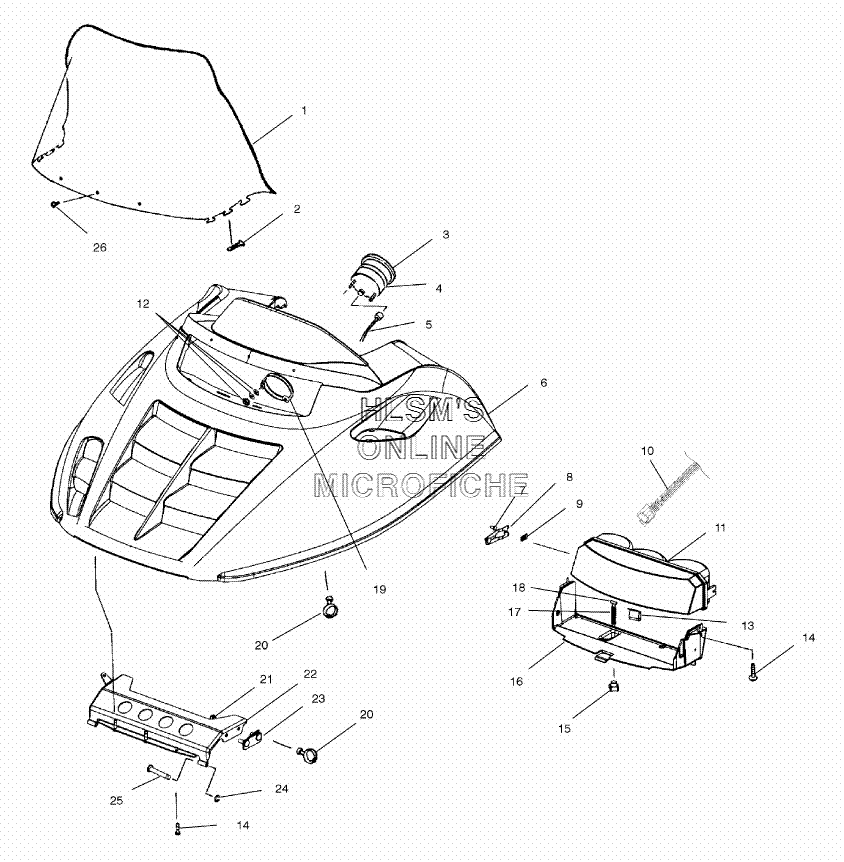

HOOD ASSEMBLY W/ WINDSHIELD для Polaris INDY 340 TOURING (S02LT3AS) - 2002 года выпуска
-
№АртикулНазвание
-
15432842 WINDSHIELD, TALL (CLEAR)WINDSHIELD, TALL (CLEAR)
-
25410970 RETAINER, WINDSHIELDRETAINER, WINDSHIELD
-
33280304 SPEEDO ASSY., 5'' (120MPH 90DEG.)SPEEDO ASSY., 5'' (120MPH 90DEG.)
-
43280209 CUSHION, TACH/SPEEDO RUBBERCUSHION, TACH/SPEEDO RUBBER
-
53280275 CABLE, SPEEDO (45 DEG 80 IN)CABLE, SPEEDO (45 DEG 80 IN)
-
62632095-342 HOOD ASSY. SVC, W/O SCR (S RED) (INCLUDES FOAM, FOIL, WARNING DECALS)HOOD ASSY. SVC, W/O SCR (S RED) (INCLUDES FOAM, FOIL, WARNING DECALS)
-
77515107 BOLTBOLT
-
81011944-067 MOUNT, WELD HEADLIGHTMOUNT, WELD HEADLIGHT
-
97670057 NUT, SPEEDNUT, SPEED
-
102460636 HARNESS, HEADLAMPHARNESS, HEADLAMP
-
112431008 HEADLIGHT ASSY., 3-BULBHEADLIGHT ASSY., 3-BULB
-
114030048 BULB, HI-BEAMBULB, HI-BEAM
-
112870448 BULB, QUARTZ. HEADLIGHTBULB, QUARTZ. HEADLIGHT
-
123280157 WASHER, FLATWASHER, FLAT
-
123280156 WASHER, SPLIT LOCKWASHER, SPLIT LOCK
-
123280158 NUTNUT
-
137670040 CLIP, U TYPECLIP, U TYPE
-
147517441 SCREWSCREW
-
157080887 KNOB, HEADLIGHT ADJUST LOCKING BKNOB, HEADLIGHT ADJUST LOCKING B
-
165432669 MOUNT, HEADLIGHT LITEMOUNT, HEADLIGHT LITE
-
177041308 SPRING, HEADLIGHT ADJUSTSPRING, HEADLIGHT ADJUST
-
187517746 BOLT, TEE ADJUSTERBOLT, TEE ADJUSTER
-
193280210 BRACKET, TACH/SPEEDO 5''BRACKET, TACH/SPEEDO 5''
-
204020149 CLIP, ROSEBUDCLIP, ROSEBUD
-
217542122 NUT, NYLOCKNUT, NYLOCK
-
225242252-067 HINGE (UPPER) (BLACK)HINGE (UPPER) (BLACK)
-
231012637 PLATE, HINGE STUDPLATE, HINGE STUD
-
247710474 RING, RETAINING EXTERNALRING, RETAINING EXTERNAL
-
257661647 PIN, RETAININGPIN, RETAINING
-
267621509 RIVET, PLASTICRIVET, PLASTIC
