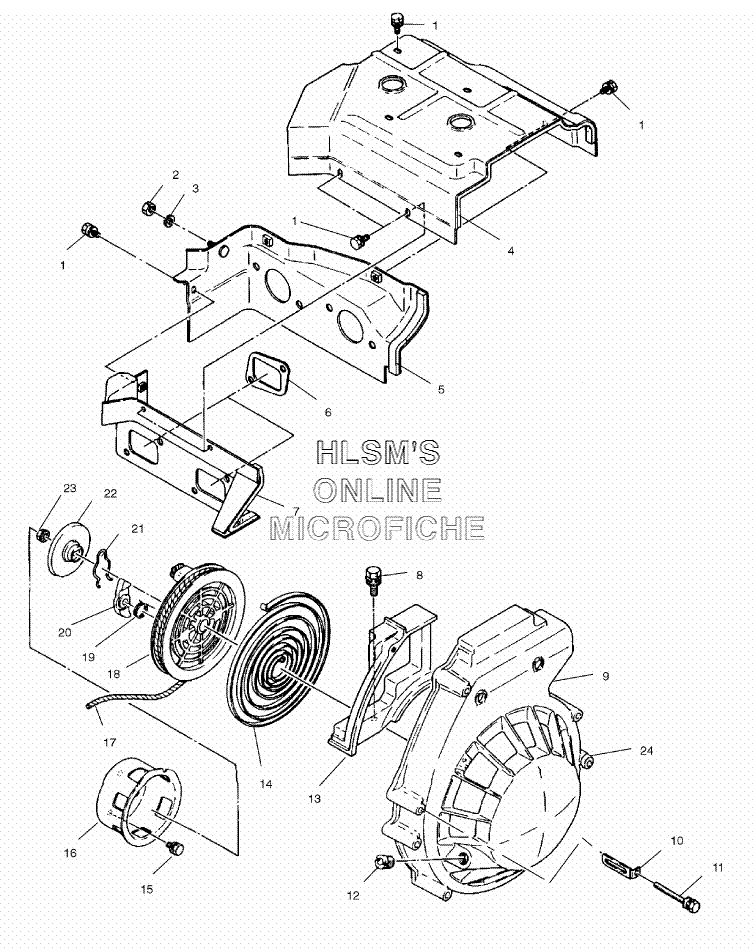

STARTER - RECOIL ASSEMBLY W/ BLOWER HOUSING для Polaris INDY 340 TOURING (S02LT3AS) - 2002 года выпуска
-
№АртикулНазвание
-
13083715 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
23084375 NUTNUT
-
33080077 WASHER SPRINGWASHER SPRING
-
43084420 BAFFLE #1, CYLINDER ASSY.BAFFLE #1, CYLINDER ASSY.
-
53084421 BAFFLE #2, CYLINDER ASSY.BAFFLE #2, CYLINDER ASSY.
-
63085846 GASKET, INTAKEGASKET, INTAKE
-
73085847 BAFFLE #3, CYLINDER ASSY. (INCL. 6, 7)BAFFLE #3, CYLINDER ASSY. (INCL. 6, 7)
-
83081663 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
93083588 RECOIL STARTER (INCL. 9, 12, 14, 17, 23)RECOIL STARTER (INCL. 9, 12, 14, 17, 23)
-
93083589 CASE, STARTER ASSY.CASE, STARTER ASSY.
-
103083590 CLAMPCLAMP
-
113083729 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
123083107 GUIDE, ROPEGUIDE, ROPE
-
133083591 HOUSING, BLOWER #2HOUSING, BLOWER #2
-
143083376 SPRING, SPIRALSPRING, SPIRAL
-
153081665 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
163083108 PULLEY, STARTINGPULLEY, STARTING
-
172870621 ROPE NYLON STARTER (100 FT) (BULK CUT TO FIT)ROPE NYLON STARTER (100 FT) (BULK CUT TO FIT)
-
183083377 REEL ASSY.REEL ASSY.
-
193083463 SPRING, RETURNSPRING, RETURN
-
203083378 RATCHETRATCHET
-
213083379 SPRING, FRICTIONSPRING, FRICTION
-
223083464 PLATE, FRICTIONPLATE, FRICTION
-
233083381 NUT, FLANGENUT, FLANGE
-
247080367 CLAMP, CABLECLAMP, CABLE
