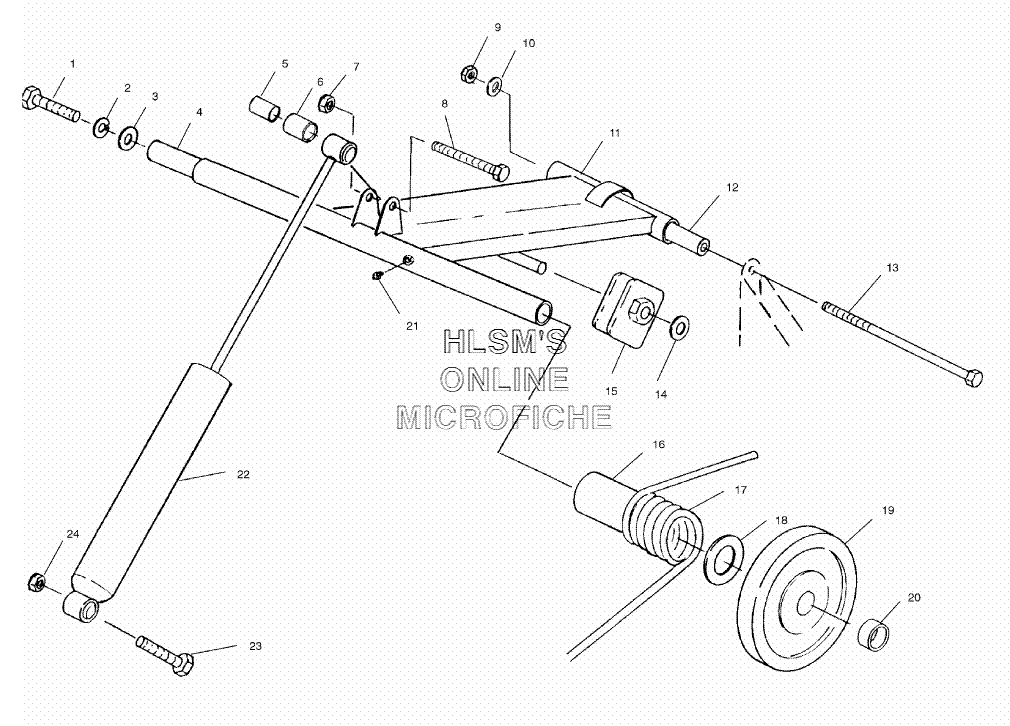

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris INDY 340 TOURING (S02LT3AS) - 2002 года выпуска
-
№АртикулНазвание
-
17517435 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555893 WASHER, FLATWASHER, FLAT
-
45131996 SHAFT, MOUNTING (REAR)SHAFT, MOUNTING (REAR)
-
55430537 BUSHINGBUSHING
-
65333030 BUSHING, SHOCK (REAR)BUSHING, SHOCK (REAR)
-
77542324 NUT, NYLOCKNUT, NYLOCK
-
87512329 BOLTBOLT
-
97542319 NUT FLEX LOCNUT FLEX LOC
-
107558402 WASHER FLATWASHER FLAT
-
111541105-067 ARM, TORQ ARM (REAR) (BLACK)ARM, TORQ ARM (REAR) (BLACK)
-
125333483 TUBETUBE
-
137517757 SCREWSCREW
-
147080394 CLIP, PUSH ONCLIP, PUSH ON
-
155433211 ROLLER, SPRING, ADJUST SQUAREROLLER, SPRING, ADJUST SQUARE
-
165521234 TUBE, SPRINGTUBE, SPRING
-
177041856-067 SPRING, TORSION (LEFT) (BLACK) (.359/85)SPRING, TORSION (LEFT) (BLACK) (.359/85)
-
177041857-067 SPRING, TORSION (RIGHT) (BLACK) (.359/85)SPRING, TORSION (RIGHT) (BLACK) (.359/85)
-
187555877 WASHER, THRUSTWASHER, THRUST
-
191543022 WHEEL, CARRIER ASSY.WHEEL, CARRIER ASSY.
-
193513504 BEARING (5/8I.D.) (1 PER)BEARING (5/8I.D.) (1 PER)
-
197710403 RETAINER (1 PER)RETAINER (1 PER)
-
205332730 SPACER, CARRIER WHEELSPACER, CARRIER WHEEL
-
217080424 FITTING, LUBE.FITTING, LUBE.
-
227041740 SHOCK, TRACK (REAR)SHOCK, TRACK (REAR)
-
237515433 SCREWSCREW
-
247542411 NUT, FLEXLOCNUT, FLEXLOC
