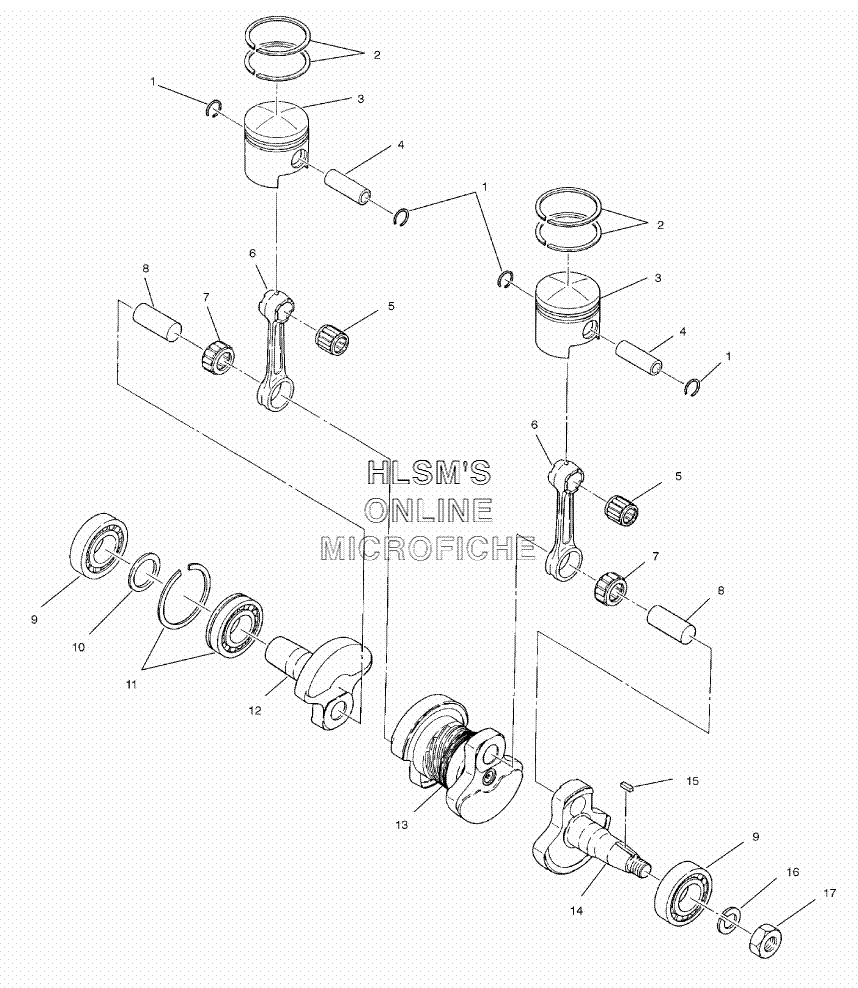

PISTON AND CRANKSHAFT для Polaris INDY 340 TOURING (S02LT3AS) - 2002 года выпуска
-
№АртикулНазвание
-
13084456 CLIP, PISTON PINCLIP, PISTON PIN
-
23083587 RING, PISTON (STANDARD)RING, PISTON (STANDARD)
-
23084319 RING, PISTON (.25MM/.010'' OVERSIZE) (OPT)RING, PISTON (.25MM/.010'' OVERSIZE) (OPT)
-
23083719 RING, PISTON (.50MM/.020'' OVERSIZE) (OPT)RING, PISTON (.50MM/.020'' OVERSIZE) (OPT)
-
33085840 PISTON, ASSY (STANDARD)PISTON, ASSY (STANDARD)
-
33085841 SET, PISTON (.25MM/.010'' OVERSIZE) (OPT)SET, PISTON (.25MM/.010'' OVERSIZE) (OPT)
-
33085842 SET, PISTON (.50MM/.020'' OVERSIZE) (OPT)SET, PISTON (.50MM/.020'' OVERSIZE) (OPT)
-
43084455 PIN, PISTONPIN, PISTON
-
53080998 BEARING, SMALL ENDBEARING, SMALL END
-
63083581 ROD, CONNECTINGROD, CONNECTING
-
73083583 BEARING, LARGE ENDBEARING, LARGE END
-
83083582 PIN, CRANKPIN, CRANK
-
93084580 BEARING, BALLBEARING, BALL
-
103083399 SPACERSPACER
-
113084602 BEARING, BALLBEARING, BALL
-
123083580 CRANKSHAFT #3CRANKSHAFT #3
-
133083579 CRANKSHAFT ASSY #2 (INCL. 8)CRANKSHAFT ASSY #2 (INCL. 8)
-
143083577 CRANKSHAFT ASSY. (INCL. 6, 14)CRANKSHAFT ASSY. (INCL. 6, 14)
-
143083578 CRANKSHAFT #1CRANKSHAFT #1
-
153081447 KEYKEY
-
163083094 WASHER, SPRINGWASHER, SPRING
-
173083093 NUTNUT
