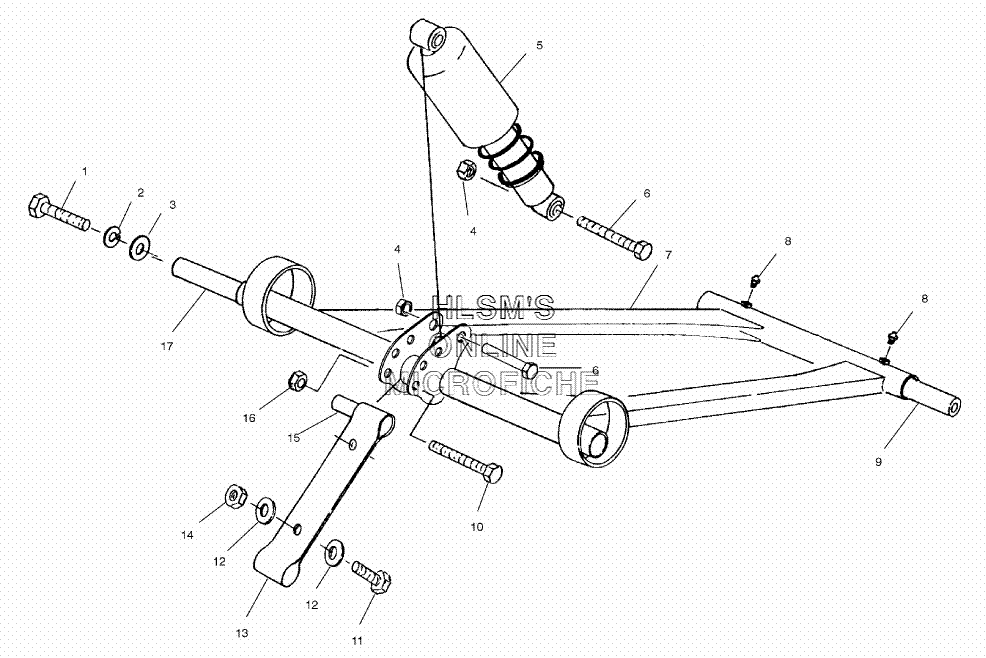

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris INDY 340 TOURING (S02LT3AS) - 2002 года выпуска
-
№АртикулНазвание
-
17517435 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555893 WASHER, FLATWASHER, FLAT
-
47542439 NUT, NYLOCKNUT, NYLOCK
-
57041929 SHOCK TRACK (FRONT)SHOCK TRACK (FRONT)
-
55241276-067 RETAINER, SPRING GAB PLATEDRETAINER, SPRING GAB PLATED
-
55430671 SHIELD, SPRINGSHIELD, SPRING
-
57041570-067 SPRING, COMPRESSIONSPRING, COMPRESSION
-
55630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
67515433 SCREWSCREW
-
71541522-067 ARM, TORQUE (BLACK) (FRONT)ARM, TORQUE (BLACK) (FRONT)
-
87080424 FITTING, LUBE.FITTING, LUBE.
-
95333511 SHAFTSHAFT
-
107515319 BOLTBOLT
-
117517313 SCREWSCREW
-
127556175 WASHERWASHER
-
135811524 STRAP, LIMITERSTRAP, LIMITER
-
147542344 NUT, NYLOCKNUT, NYLOCK
-
155333897 BUSHINGBUSHING
-
167542324 NUT, NYLOCKNUT, NYLOCK
-
175020908 SHAFTSHAFT
