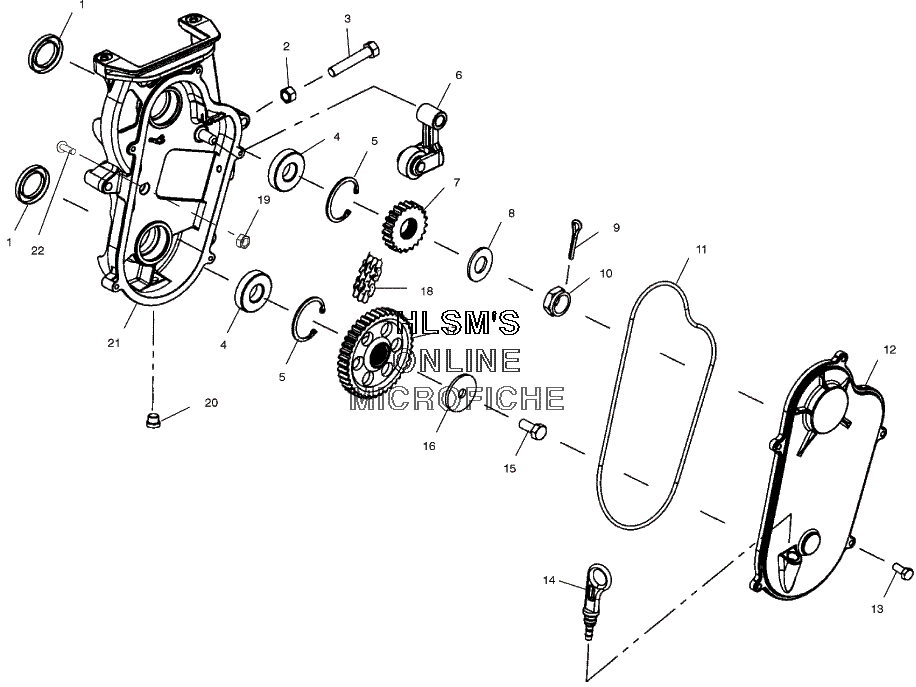

CHAINCASE ASSEMBLY для Polaris 600 RMK 144 (S03NK6ES) - 2003 года выпуска
-
№АртикулНазвание
-
13610030 SEAL, OILSEAL, OIL
-
25132237 NUT CHAIN ADJUSTERNUT CHAIN ADJUSTER
-
37512470 SCREWSCREW
-
43514309 BEARING, BALLBEARING, BALL
-
57718406 RING, RETAININGRING, RETAINING
-
61332213 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
63553002 BEARINGBEARING
-
65630123 WHEEL, C/C IDLERWHEEL, C/C IDLER
-
67558702 WASHER THRUSTWASHER THRUST
-
67662210 PIN, CHAIN TIGHTENERPIN, CHAIN TIGHTENER
-
65630958 TIGHTENER, CHAINCASETIGHTENER, CHAINCASE
-
73221095 SPROCKET (19T, 3/4W, 15 SPLINE HYVO PM)SPROCKET (19T, 3/4W, 15 SPLINE HYVO PM)
-
87571620 WASHER, SPRINGWASHER, SPRING
-
97661401 PIN, COTTERPIN, COTTER
-
107542811 NUT 5/8-18 THIN, NYLON INSERT-YNUT 5/8-18 THIN, NYLON INSERT-Y
-
115411497 GASKET, O-RINGGASKET, O-RING
-
125132368 COVER CHNCASE, ALUM (7.92 CD)COVER CHNCASE, ALUM (7.92 CD)
-
137512242 SCREWSCREW
-
141332250 DIPSTICK, W/MAGNET EDGE ASSYDIPSTICK, W/MAGNET EDGE ASSY
-
157517979 SCREW HEXAGON HEAD/NYL GR8-PSCREW HEXAGON HEAD/NYL GR8-P
-
167571618 WASHER, SPRINGWASHER, SPRING
-
173222108 SPROCKET (39T/15T, 3/4W, HYVO PM)SPROCKET (39T/15T, 3/4W, HYVO PM)
-
183221110 CHAIN, HYVO (72P, 3/4W)CHAIN, HYVO (72P, 3/4W)
-
197542451 NUT, NYLOKNUT, NYLOK
-
207052115 PLUGPLUG
-
215132773 CHAINCASE ALUM (7.92 CD)CHAINCASE ALUM (7.92 CD)
-
227515477 SCREW, CARRIAGESCREW, CARRIAGE
