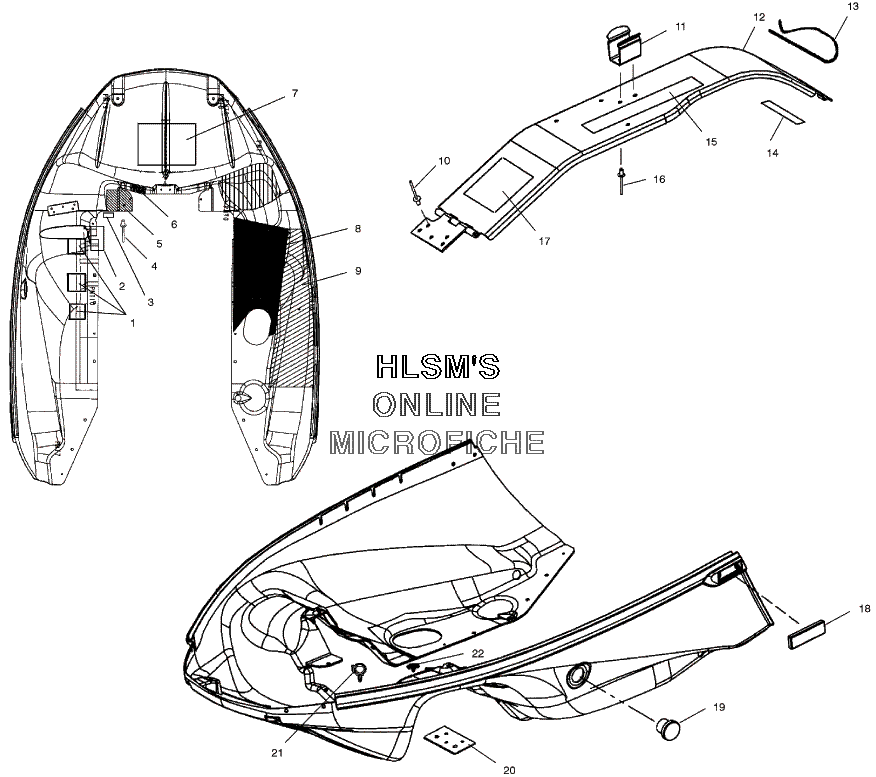

NOSEPAN ASSEMBLY #1 для Polaris 600 RMK 144 (S03NK6ES) - 2003 года выпуска
-
№АртикулНазвание
-
17670130 SPEEDOMETER CLIP "U" TYPE (C-53791-014)SPEEDOMETER CLIP "U" TYPE (C-53791-014)
-
25811948 FOILFOIL
-
37080963 RETAINER "J" CLIPRETAINER "J" CLIP
-
47621435 RIVETRIVET
-
55812020 FOIL, TAPEFOIL, TAPE
-
65810949 FOIL, TAPEFOIL, TAPE
-
75812036 FOILFOIL
-
85812019 FOIL, TAPE (LOWER/RIGHT)FOIL, TAPE (LOWER/RIGHT)
-
95812018 FOIL, TAPE (UPPER/RIGHT)FOIL, TAPE (UPPER/RIGHT)
-
107621402 RIVET, POPRIVET, POP
-
115222769 CLIP, BELT RETAINERCLIP, BELT RETAINER
-
121013069 GUARD, CLUTCH ASSYGUARD, CLUTCH ASSY
-
137080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
145812352 PAD CLUTCH GUARDPAD CLUTCH GUARD
-
157075350 DECAL, ENGINE AND CLUTCH (CPSC)DECAL, ENGINE AND CLUTCH (CPSC)
-
167621429 RIVETRIVET
-
177170043 DECAL TROUBLE SHOOTDECAL TROUBLE SHOOT
-
182670134 REFLECTOR ASSY (AMBER)REFLECTOR ASSY (AMBER)
-
195433926 PLUG, OBLONGPLUG, OBLONG
-
205211722 PLATE, BACKERPLATE, BACKER
-
214020149 CLIP (ROSEBUD)CLIP (ROSEBUD)
-
227670131 PLUG NYLONPLUG NYLON
