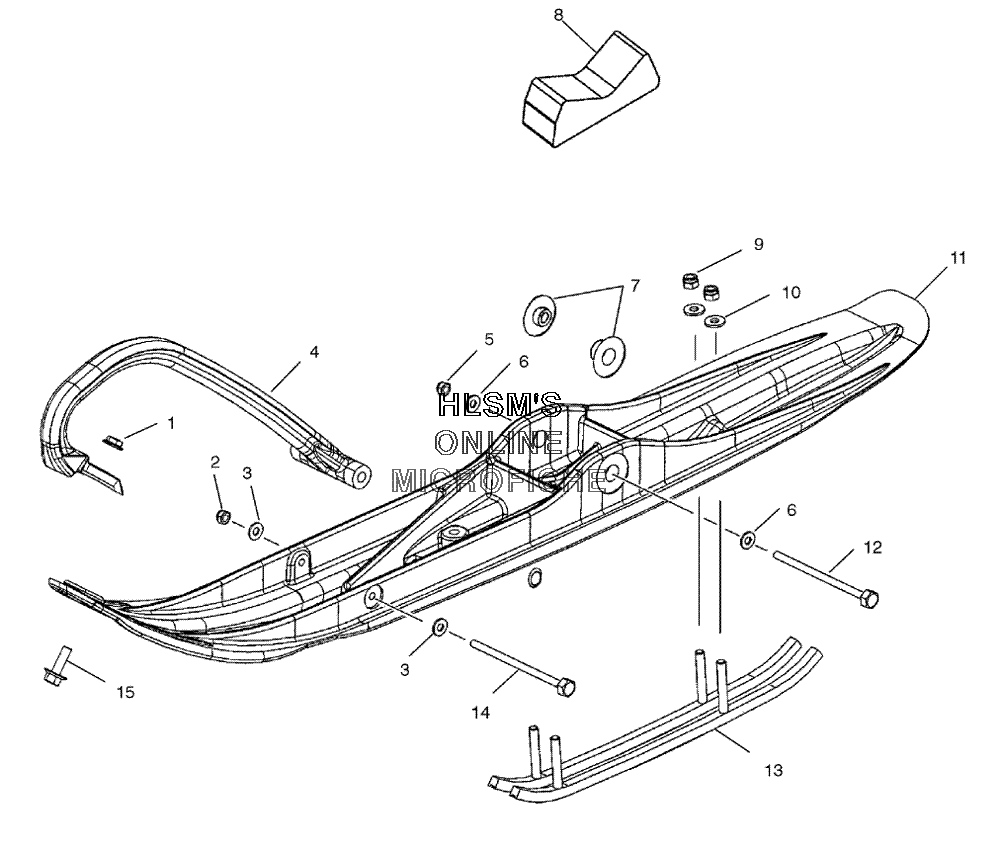

SKI ASSEMBLY для Polaris 600 RMK 144 (S03NK6ES) - 2003 года выпуска
-
№АртикулНазвание
-
17542321 NUT, FLANGENUT, FLANGE
-
27542122 NUT NYLOKNUT NYLOK
-
37558301 WASHER, FLATWASHER, FLAT
-
45434618-070 TOE-PLASTIC SKI (BLACK)TOE-PLASTIC SKI (BLACK)
-
57542439 NUT, NYLOKNUT, NYLOK
-
67556130 WASHERWASHER
-
75132637 BUSHING, METAL (.390 ID)BUSHING, METAL (.390 ID)
-
85412018 STOP, RUBBERSTOP, RUBBER
-
97542324 NUT, NYLOKNUT, NYLOK
-
107555843 WASHER, WROUGHTWASHER, WROUGHT
-
111821335-070 SKI SERVICE ASSY (LEFT/BLACK)SKI SERVICE ASSY (LEFT/BLACK)
-
111821336-070 SKI SERVICE ASSY (RIGHT/BLACK)SKI SERVICE ASSY (RIGHT/BLACK)
-
127517968 SCREW HEXAGON/CAP-YSCREW HEXAGON/CAP-Y
-
132874334 SKAG, CARBURETORIDE, 4" 60Ш KITSKAG, CARBURETORIDE, 4" 60Ш KIT
-
147518047 BOLT HEXAGON/CAP GRSBOLT HEXAGON/CAP GRS
-
157518070 SCREWSCREW
