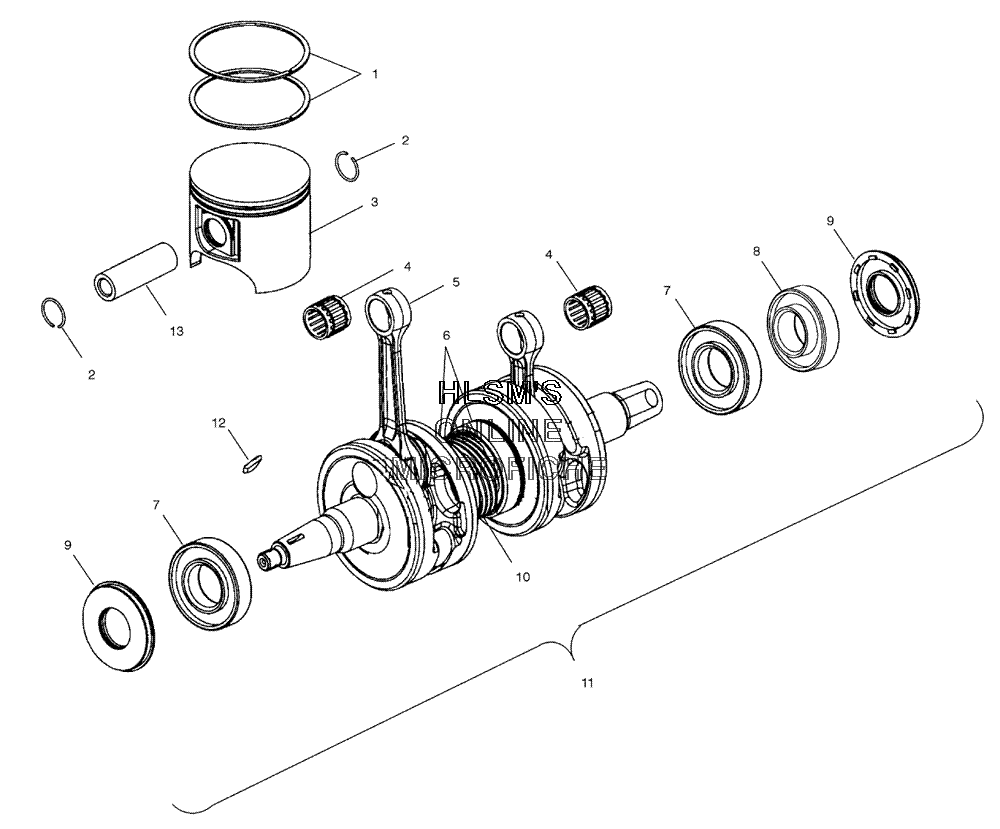

PISTON AND CRANKSHAFT для Polaris 600 RMK 144 (S03NK6ES) - 2003 года выпуска
-
№АртикулНазвание
-
12201256 PISTON RINGS C KITPISTON RINGS C KIT
-
23022950 CIRCLIP, PISTON (20MM)CIRCLIP, PISTON (20MM)
-
32202258 PISTON GRAFAL KIT (INCL. 1, 2, 13)PISTON GRAFAL KIT (INCL. 1, 2, 13)
-
43514365 BEARING PNPIN, KOYOBEARING PNPIN, KOYO
-
52201132 CONNECT ROD KIT ASSYCONNECT ROD KIT ASSY
-
63513508 BEARING, BALLBEARING, BALL
-
73585503 BEARING, BALLBEARING, BALL
-
83514310 BEARING, BALL, EXTRACEBEARING, BALL, EXTRACE
-
95411394 SEAL, FLANGEDSEAL, FLANGED
-
105131373 GEAR, PUMP DRIVEGEAR, PUMP DRIVE
-
112202257 CRANKSHAFT 2@64X128 KIT (INCL. 6-10)CRANKSHAFT 2@64X128 KIT (INCL. 6-10)
-
127721117 KEY, WOODRUFFKEY, WOODRUFF
Все узлы модели:
- BRAKE ASSEMBLY
- CARBURETOR ASSEMBLY
- CARBURETOR LINKAGE ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS #1
- FRAME - CHASSIS #2
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLIGHT
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL TANK W/ AIR BOX ASSEMBLY
- • PISTON AND CRANKSHAFT
- RAIL ASSEMBLY W/ IDLER WHEELS
- SEAT W/ GAS TANK ASSEMBLY
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STEERING ASSEMBLY
- STEERING POST ASSEMBLY
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - REAR TRACK
- TOOL KIT
- WATER PUMP/OIL PUMP
- WINDSHIELD W/ GUAGES AND HOOD RETAINER
