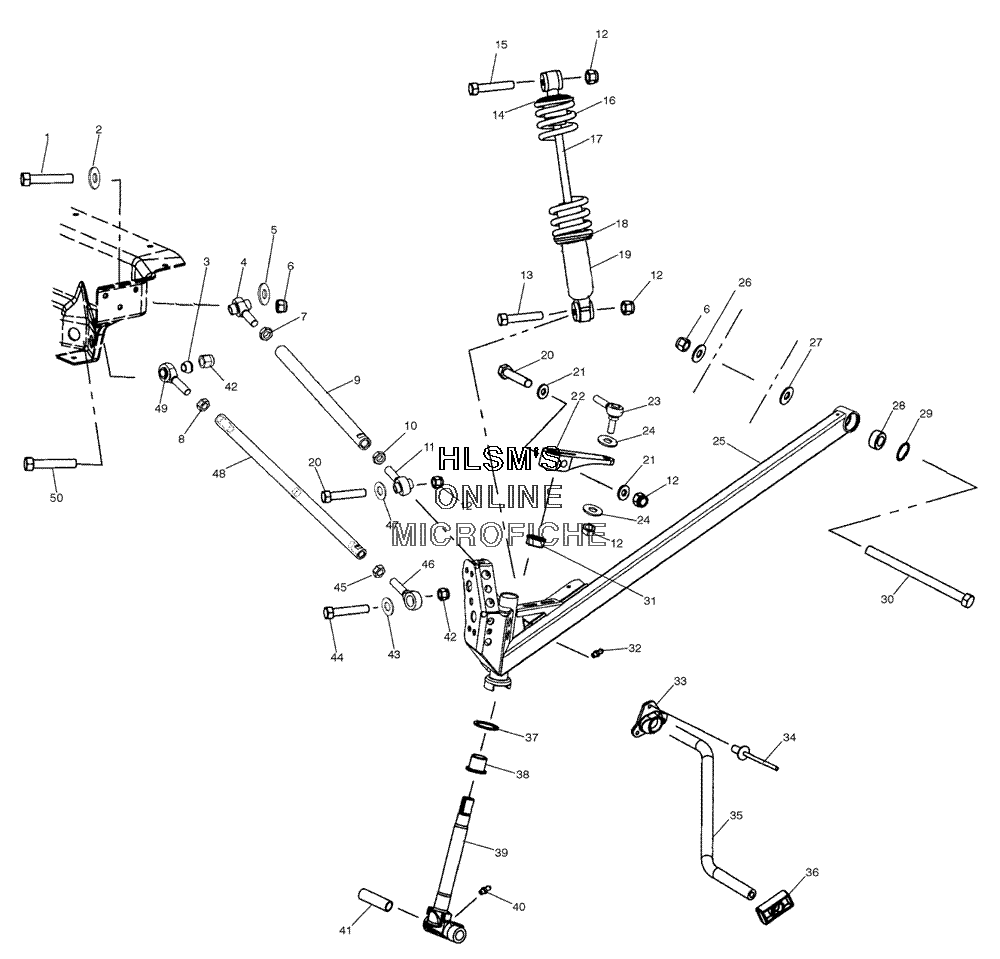

SUSPENSION - FRONT для Polaris 600 RMK 144 (S03NK6ES) - 2003 года выпуска
-
№АртикулНазвание
-
17517980 BOLT HEXAGON CAP GR5-YBOLT HEXAGON CAP GR5-Y
-
27556212 WASHER 7/16 SAE, STF THRU-HRD-YWASHER 7/16 SAE, STF THRU-HRD-Y
-
35132454 BUSHING, SPACERBUSHING, SPACER
-
47061081 ROD END RADIUS, 7/16 (LEFT)ROD END RADIUS, 7/16 (LEFT)
-
57555852 WASHER, FLATWASHER, FLAT
-
67547066 NUT 7/16-20, NYLOK, YNUT 7/16-20, NYLOK, Y
-
77547117 NUT (LEFT)NUT (LEFT)
-
87547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
95133543-385 TUBE RADIUS ROD (UPPER/CLOUD SILVER)TUBE RADIUS ROD (UPPER/CLOUD SILVER)
-
107542520 NUT, JAMNUT, JAM
-
117061061 ROD END RADIUS 7/16ROD END RADIUS 7/16
-
127542439 NUT, NYLOKNUT, NYLOK
-
137515433 SCREWSCREW
-
145630580 RETAINER, SPRING SLOTTEDRETAINER, SPRING SLOTTED
-
157515415 SCREWSCREW
-
167041551-067 SPRING COMP, IFS (BLACK) (NITREX)SPRING COMP, IFS (BLACK) (NITREX)
-
177042197 SHOCK IFS, NITREXSHOCK IFS, NITREX
-
185431734 RING, SPRING PRELOAD ADJUSTRING, SPRING PRELOAD ADJUST
-
191500063 RETAINER, SPRING BODY THREADEDRETAINER, SPRING BODY THREADED
-
207517583 SCREW HEXAGON/CAP GR5-Y-SPSCREW HEXAGON/CAP GR5-Y-SP
-
217555832 WASHERWASHER
-
225133060 ARM STEERING MACHINEDARM STEERING MACHINED
-
237061086 ROD END (RIGHT)ROD END (RIGHT)
-
247555797 WASHER, FLATWASHER, FLAT
-
251821201-293 TRAILING ARM SERVICE ASSY (LEFT/RED) (INCL. 28, 29)TRAILING ARM SERVICE ASSY (LEFT/RED) (INCL. 28, 29)
-
251821202-293 TRAILING ARM SERVICE ASSY (RIGHT/RED) (INCL. 28, 29)TRAILING ARM SERVICE ASSY (RIGHT/RED) (INCL. 28, 29)
-
267555820 WASHER, FLATWASHER, FLAT
-
275132364 CUP, TRAILING ARM MOUNTCUP, TRAILING ARM MOUNT
-
287061042 BEARING SPHERICAL, PLASTICBEARING SPHERICAL, PLASTIC
-
297710437 RING, RETAININGRING, RETAINING
-
307512099 SCREWSCREW
-
313573909 BUSHING FLANGEBUSHING FLANGE
-
327080433 FITTING, LUBRICATION THREADEDFITTING, LUBRICATION THREADED
-
335433814 BUSHING, TORSION BAR 9/16"BUSHING, TORSION BAR 9/16"
-
347621452 RIVETRIVET
-
355245217-067 BAR TORSION, 9/16 EDGE RMK (BLACK)BAR TORSION, 9/16 EDGE RMK (BLACK)
-
365434371 SLIDE TORSION BAR, 9/16 ANTIRATTLESLIDE TORSION BAR, 9/16 ANTIRATTLE
-
377556509 BUSHINGBUSHING
-
383574208 BUSHING, FLANGEDBUSHING, FLANGED
-
396230225-067 SHAFT SPINDLE, W/STEER STOP (BLACK)SHAFT SPINDLE, W/STEER STOP (BLACK)
-
407080306 FITTING, LUBE.W/BALL CHECKFITTING, LUBE.W/BALL CHECK
-
415010158 BUSHING, PIVOTBUSHING, PIVOT
-
427547216 NUT 1/2-70, NYLOK-GR8-YNUT 1/2-70, NYLOK-GR8-Y
-
437556213 WASHER HH-YWASHER HH-Y
-
447517906 BOLT HEXAGON CAP GR5-YBOLT HEXAGON CAP GR5-Y
-
457542711 NUT JAMNUT JAM
-
467061052 ROD END RADIUS (RIGHT/LOWER)ROD END RADIUS (RIGHT/LOWER)
-
477556153 WASHER, 3/8 FWWASHER, 3/8 FW
-
485132953 TUBE RADIUS ROD (LOWER)TUBE RADIUS ROD (LOWER)
-
497061087 ROD END RADIUS (LEFT/LOWER)ROD END RADIUS (LEFT/LOWER)
-
507518041 BOLT HEXAGON CAP, GR8-YBOLT HEXAGON CAP, GR8-Y
