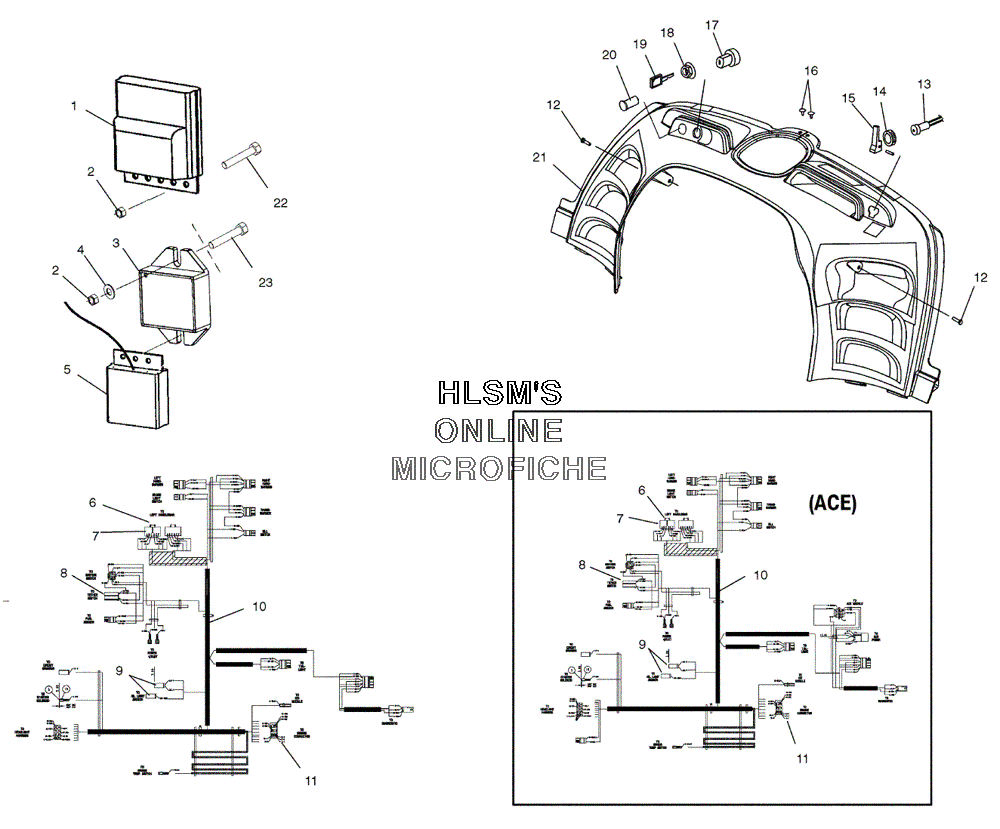

CONSOLE для Polaris 500 CLASSIC (S04ND4BS) - 2004 года выпуска
-
№АртикулНазвание
-
14010597 CONTROLLER ELECTRICCONTROLLER ELECTRIC
-
27541925 NUT, NYLOKNUT, NYLOK
-
34010794 REGULATOR AC/DCREGULATOR AC/DC
-
47555746 WASHERWASHER
-
54010730 REGULATOR RCTFR, 1/2WAVE WITH CONN (M-10 ACE)REGULATOR RCTFR, 1/2WAVE WITH CONN (M-10 ACE)
-
64010193 HOUSING CONNECTORHOUSING CONNECTOR
-
74010192 SOCKET PACKARDSOCKET PACKARD
-
84020063 HOUSING, PACKHOUSING, PACK
-
94020153 HOUSING, 1 CIRCUITHOUSING, 1 CIRCUIT
-
102461147 HARNESS MAIN EDGE NONTPS FS DIAGHARNESS MAIN EDGE NONTPS FS DIAG
-
102461163 HARNESS MAIN (M-10 ACE)HARNESS MAIN (M-10 ACE)
-
114020057 HOUSINGHOUSING
-
127515199 SCREWSCREW
-
137080753 CABLE CHOKE (INCL. 14, 15)CABLE CHOKE (INCL. 14, 15)
-
145432944 NUT, CHOKENUT, CHOKE
-
155432943 CHOKE LEVER REPAIR KIT (INCL. PIN)CHOKE LEVER REPAIR KIT (INCL. PIN)
-
167670088 CLIP, PLASTIC DART NYLONCLIP, PLASTIC DART NYLON
-
172200358 IGNITION SWITCH KITIGNITION SWITCH KIT
-
187547035 NUT, IGNITIONNUT, IGNITION
-
195410611 N/A,USE COMPONENTS SEE NOTE:N/A,USE COMPONENTS SEE NOTE:
-
204010638 RECEPTACLE POD MOUNT, 12 VOLTRECEPTACLE POD MOUNT, 12 VOLT
-
215434483-070 CONSOLENOIDE, SRP WITH ACC (BLACK)CONSOLENOIDE, SRP WITH ACC (BLACK)
-
227512050 SCREW, WITH WASHERSCREW, WITH WASHER
