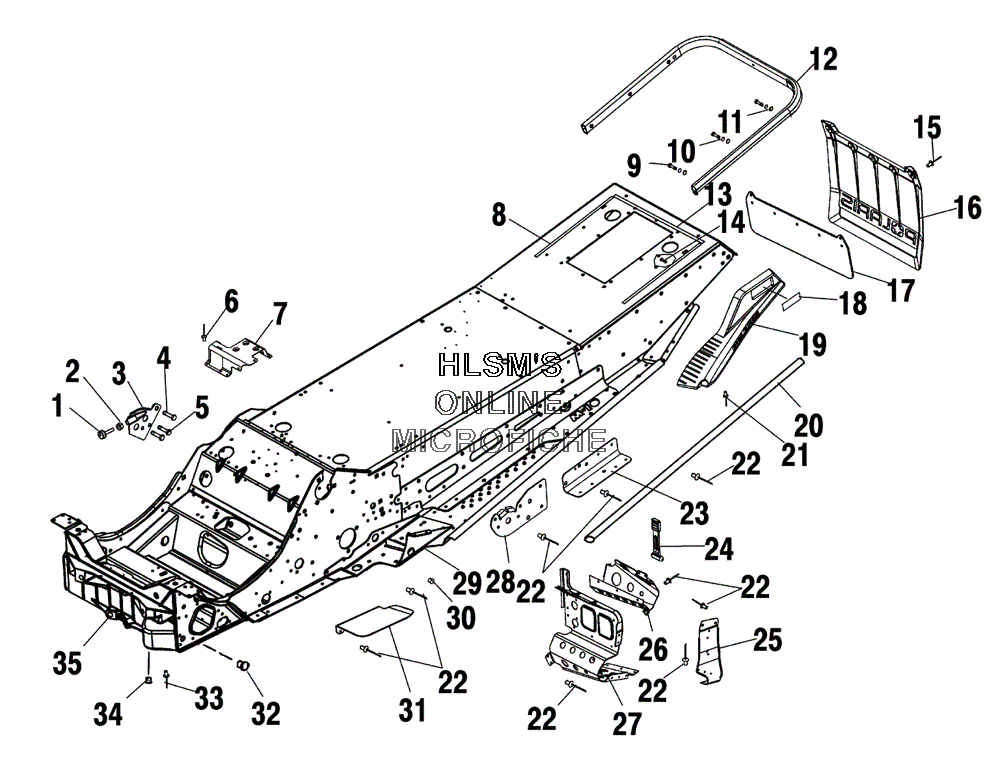

FRAME - CHASSIS для Polaris 500 CLASSIC (S04ND4BS) - 2004 года выпуска
-
№АртикулНазвание
-
13021104 STOP, TORQUE COURSE (3/8 16)STOP, TORQUE COURSE (3/8 16)
-
27542404 NUTNUT
-
31013399 WELD TORQUE STOPWELD TORQUE STOP
-
47517632 SCREWSCREW
-
57517854 SCREWSCREW
-
67621432 RIVET (3/16X.402)RIVET (3/16X.402)
-
75246330 BRACKET OIL TANK/HOSE SUPPORTBRACKET OIL TANK/HOSE SUPPORT
-
85812290 GASKET SEAT BASE (ST AND ARD)GASKET SEAT BASE (ST AND ARD)
-
97512232 BOLTBOLT
-
107552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
117558301 WASHER, FLATWASHER, FLAT
-
122632165-309 BUMPER ASSY (REAR)BUMPER ASSY (REAR)
-
135812525 SEAL SEAT (REAR)SEAL SEAT (REAR)
-
147517441 SCREWSCREW
-
157621418 RIVET, POPRIVET, POP
-
165434847-1106 FLAP SNOW EDGE (BLACK/WHITE)FLAP SNOW EDGE (BLACK/WHITE)
-
175812430 BACKER SNOW FLAPBACKER SNOW FLAP
-
182670133 REFLECTOR ASSY (RED)REFLECTOR ASSY (RED)
-
192632443-070 SNOWSKIRT/REFLECTOR ASSY (BLACK/LEFT)SNOWSKIRT/REFLECTOR ASSY (BLACK/LEFT)
-
192632444-070 SNOWSKIRT/REFLECTOR ASSY (BLACK/RIGHT)SNOWSKIRT/REFLECTOR ASSY (BLACK/RIGHT)
-
205245118-067 BRACE TUNNEL ROLL (BLACK)BRACE TUNNEL ROLL (BLACK)
-
217621472 RIVETRIVET
-
227661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
235244997-067 BRACE TUNNEL (LOWER/BLACK/LEFT)BRACE TUNNEL (LOWER/BLACK/LEFT)
-
235244998-067 BRACE TUNNEL (LOWER/BLACK/RIGHT)BRACE TUNNEL (LOWER/BLACK/RIGHT)
-
245433150 STRAPSTRAP
-
255246310-067 SUPPORT FOOTREST (BLACK/LEFT)SUPPORT FOOTREST (BLACK/LEFT)
-
255246311-067 SUPPORT FOOTREST (BLACK/RIGHT)SUPPORT FOOTREST (BLACK/RIGHT)
-
265245457-067 MOUNT CONSOLENOIDE, TOE CLIP (BLACK/LEFT)MOUNT CONSOLENOIDE, TOE CLIP (BLACK/LEFT)
-
265245458-067 MOUNT CONSOLENOIDE, TOE CLIP (BLACK/RIGHT)MOUNT CONSOLENOIDE, TOE CLIP (BLACK/RIGHT)
-
275245288-067 FOOTREST (BLACK/LEFT)FOOTREST (BLACK/LEFT)
-
275247205-067 FOOTREST (BLACK/RIGHT)FOOTREST (BLACK/RIGHT)
-
285244999-067 PAD SUSPENSION (FRONT/BLACK/LEFT)PAD SUSPENSION (FRONT/BLACK/LEFT)
-
285245001-067 PAD SUSPENSION (FRONT/BLACK/RIGHT)PAD SUSPENSION (FRONT/BLACK/RIGHT)
-
292202059 MOUNT, TRAILING ARM KIT (LEFT)MOUNT, TRAILING ARM KIT (LEFT)
-
292202598 MOUNT, TRAILING ARM KIT (RIGHT)MOUNT, TRAILING ARM KIT (RIGHT)
-
307081085 PLUG BARBEDPLUG BARBED
-
305412276 GROMMET WIRE (M-10 ACE)GROMMET WIRE (M-10 ACE)
-
315246066 GUARD BELTGUARD BELT
-
327080416 PLUG, HOLEPLUG, HOLE
-
337661130 RIVETRIVET
-
347081076 PLUG HOLEPLUG HOLE
-
355132292 BULKHEAD MACH (FRONT)BULKHEAD MACH (FRONT)
-
351014172-067 CHASSIS, ASSY SERVICE M010 (STD) (BLACK)CHASSIS, ASSY SERVICE M010 (STD) (BLACK)
