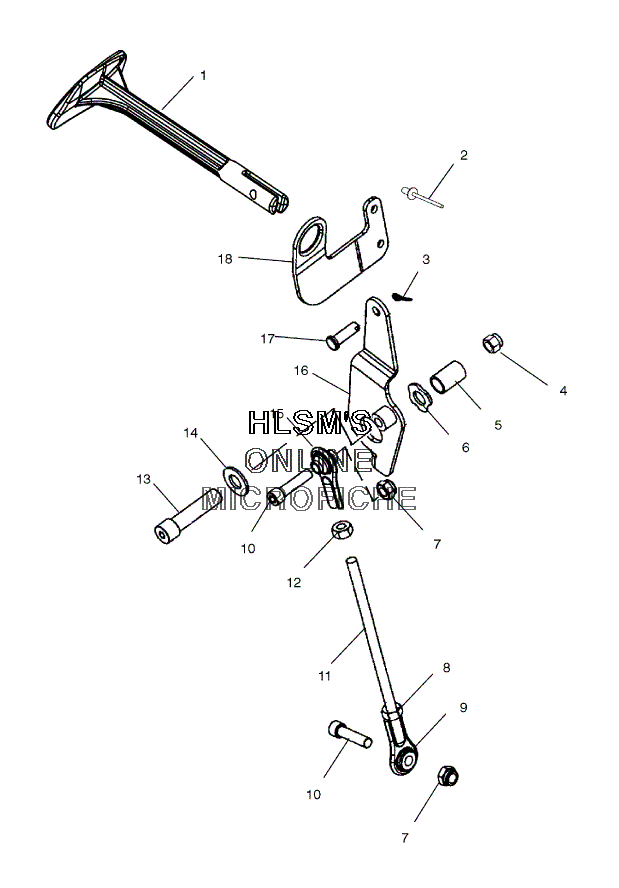

SHIFTER ASSEMBLY для Polaris 500 CLASSIC (S04ND4BS) - 2004 года выпуска
-
№АртикулНазвание
-
15435115 HANDLE REVERSEHANDLE REVERSE
-
27661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
37661010 PIN, COTTERPIN, COTTER
-
47542439 NUT, NYLOKNUT, NYLOK
-
55334131 BUSHINGBUSHING
-
67555933 WASHERWASHER
-
77542122 NUT NYLOKNUT NYLOK
-
87542129 NUTNUT
-
97061097 ROD END (RIGHT)ROD END (RIGHT)
-
107512163 BOLTBOLT
-
115132361 ROD, THREADEDROD, THREADED
-
127547088 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
137515415 SCREWSCREW
-
147555806 WASHER, FLATWASHER, FLAT
-
157061030 ROD END (LEFT)ROD END (LEFT)
-
161341429 WELD SHIFT ACTUATORWELD SHIFT ACTUATOR
-
177661843 PIN CLEVISPIN CLEVIS
-
185245707 BRACKET, SHIFT LEVER GUIDEBRACKET, SHIFT LEVER GUIDE
