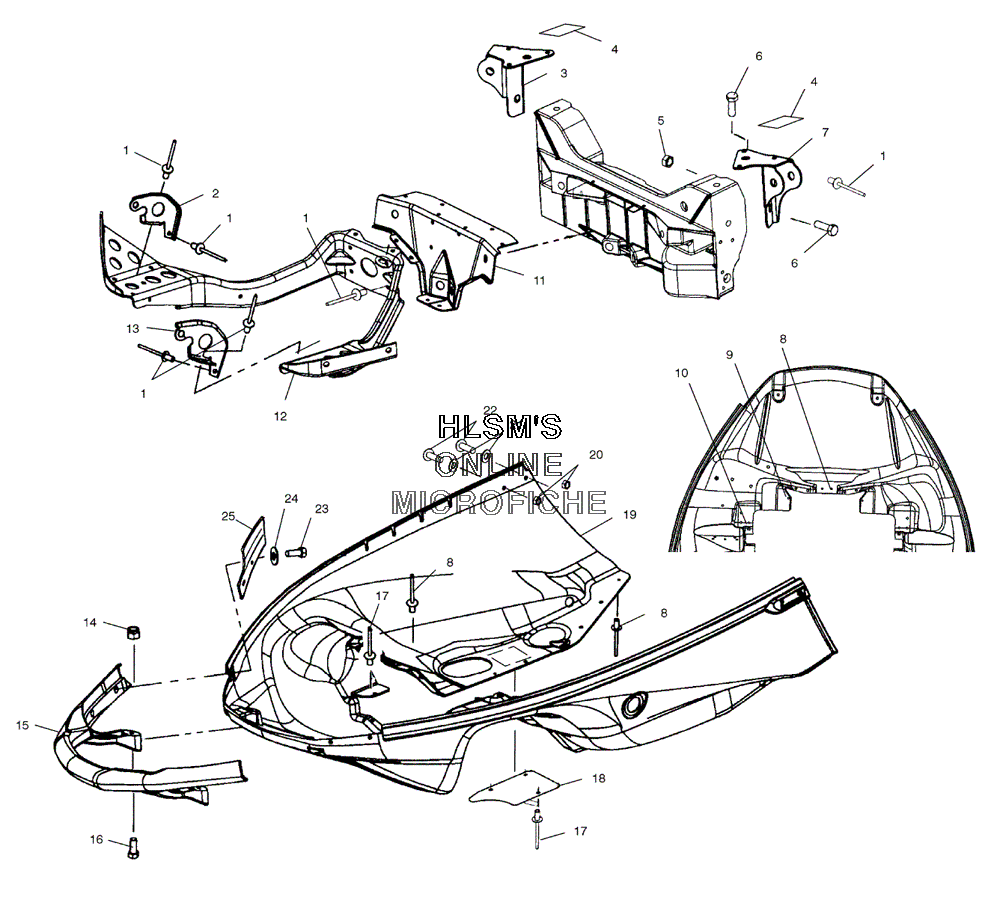

NOSEPAN ASSEMBLY #1 для Polaris 500 CLASSIC (S04ND4BS) - 2004 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
25243992-067 HINGE PIVOT (LOWER/BLACK/RIGHT)HINGE PIVOT (LOWER/BLACK/RIGHT)
-
35243978 MOUNT, SHOCK BULK HEAD (UPPER/RIGHT)MOUNT, SHOCK BULK HEAD (UPPER/RIGHT)
-
45810947 FOAM, SEALFOAM, SEAL
-
57547180 NUT FLANGEDNUT FLANGED
-
67517935 SCREW HEXAGONSCREW HEXAGON
-
75243977 MOUNT SHOCK, BLACKHEAD (UPPER/LEFT)MOUNT SHOCK, BLACKHEAD (UPPER/LEFT)
-
87621467 RIVET, BLINDRIVET, BLIND
-
97621431 RIVETRIVET
-
107661136 REVET 3/16REVET 3/16
-
115244049-067 BRACKET, RADIATOR ROD SUPPORT (BLACK)BRACKET, RADIATOR ROD SUPPORT (BLACK)
-
125244050 BRACE, PAN (LOWER)BRACE, PAN (LOWER)
-
135243991-067 HINGE PIVOT (LOWER/LEFT/BLACK)HINGE PIVOT (LOWER/LEFT/BLACK)
-
147542153 NUT, NYLOK FLANGEDNUT, NYLOK FLANGED
-
155433518-070 BUMPER ASSY (FRONT/BLACK)BUMPER ASSY (FRONT/BLACK)
-
167512163 BOLTBOLT
-
177621472 RIVETRIVET
-
185245853 SHIELD, HEAT EXTENDEDSHIELD, HEAT EXTENDED
-
195434343-070 NOSEPAN GAS ASSIST (BLACK)NOSEPAN GAS ASSIST (BLACK)
-
207542122 NUT NYLOKNUT NYLOK
-
217555827 WASHERWASHER
-
227515166 SCREWSCREW
-
237517312 SCREWSCREW
-
247552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
255244888 GUIDE HOOD (LEFT)GUIDE HOOD (LEFT)
-
255244889 GUIDE, HOOD (RIGHT)GUIDE, HOOD (RIGHT)
