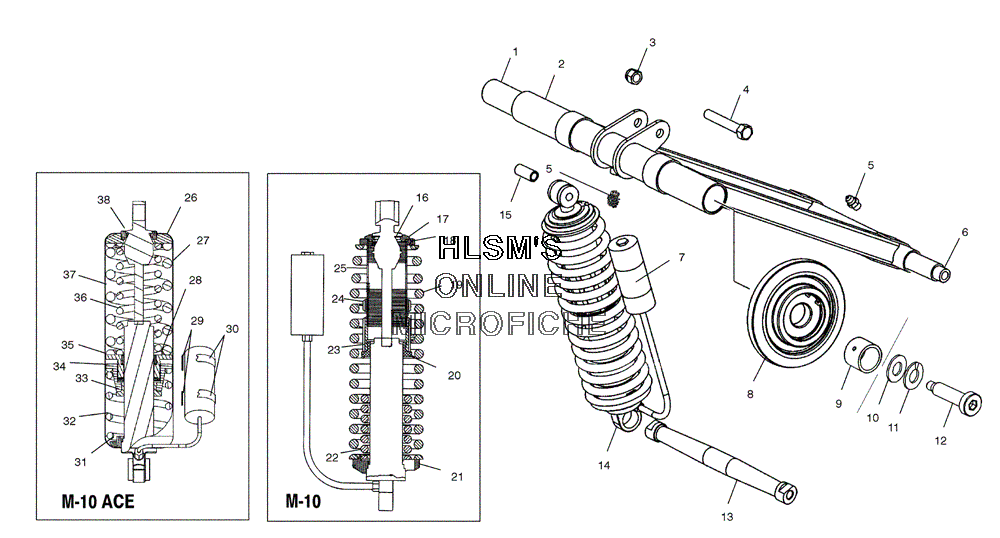

SUSPENSION - REAR TORQUE ARM ASSEMBLY для Polaris 500 CLASSIC (S04ND4BS) - 2004 года выпуска
-
№АртикулНазвание
-
15132578 SHAFT (UPPER)SHAFT (UPPER)
-
21541527-067 TORQUE ARM (BLACK) (M-10)TORQUE ARM (BLACK) (M-10)
-
21541894-067 WELD TORQUE ARM (BLACK) (ACE)WELD TORQUE ARM (BLACK) (ACE)
-
37542439 NUT, NYLOKNUT, NYLOK
-
47515415 SCREWSCREW
-
57080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
65133093 SHAFT (LOWER)SHAFT (LOWER)
-
77079432 DECALDECAL
-
81590308 WHEEL, OFF SET ASSYWHEEL, OFF SET ASSY
-
83514330 BEARINGBEARING
-
95132582 COLLAR BEARING LOCK (REAR)COLLAR BEARING LOCK (REAR)
-
97512257 SCREW SOCKETSETSCREW SOCKETSET
-
107555984 WASHER, FLATWASHER, FLAT
-
117552614 WASHER, LOCKWASHER, LOCK
-
127517815 SCREW SOC HEADSCREW SOC HEAD
-
147042216 SHOCK TRACK (REAR) (SEE SUSPENSION - FRONT TRACK FOR DETAILS)SHOCK TRACK (REAR) (SEE SUSPENSION - FRONT TRACK FOR DETAILS)
-
147042149 SHOCK TRACK (REAR) (SEE SUSPENSION - REAR TRACK FOR DETAILS)SHOCK TRACK (REAR) (SEE SUSPENSION - REAR TRACK FOR DETAILS)
-
155333905 SLEEVESLEEVE
-
165244747 CAP ICE (M-10)CAP ICE (M-10)
-
175020618 RETAINER, SPRING SLOTTED (M-10)RETAINER, SPRING SLOTTED (M-10)
-
185132645 NUT PRELOAD (M-10)NUT PRELOAD (M-10)
-
197041935-067 SPRING SHOCK (REAR/BLACK) (M-10)SPRING SHOCK (REAR/BLACK) (M-10)
-
205433882 BUSHING OVER LOAD DEPRESSORBUSHING OVER LOAD DEPRESSOR
-
215133032 RETAINER REAR SPRINGRETAINER REAR SPRING
-
227041936-067 SPRING OVER/LOAD (REAR/BLACK) (M-10)SPRING OVER/LOAD (REAR/BLACK) (M-10)
-
235132625 RING ADJUSTER (M-10)RING ADJUSTER (M-10)
-
245132643 NUT RING ADJUSTER (M-10)NUT RING ADJUSTER (M-10)
-
255132794 SLEEVE OVER LOAD DEPRESSOR (M-10)SLEEVE OVER LOAD DEPRESSOR (M-10)
-
265133746 RETAINER SPRING (LOWER) (M-10 ACE)RETAINER SPRING (LOWER) (M-10 ACE)
-
277042208-067 SPRING COM (BLACK) (M-10 ACE)SPRING COM (BLACK) (M-10 ACE)
-
285434896 BUSHING NYLON, PRELOAD COLLAR (M-10 ACE)BUSHING NYLON, PRELOAD COLLAR (M-10 ACE)
-
295812432 PAD FOAM, ADHESIVE (1/2X4") (M-10 ACE)PAD FOAM, ADHESIVE (1/2X4") (M-10 ACE)
-
307081119 CLAMP HOSE (2.0") (M-10 ACE)CLAMP HOSE (2.0") (M-10 ACE)
-
315133747 RETAINER SPRING (UPPER) (M-10 ACE)RETAINER SPRING (UPPER) (M-10 ACE)
-
327042207-067 SPRING COM (BLACK) (M-10 ACE)SPRING COM (BLACK) (M-10 ACE)
-
335433882 BUSHING OVER LOAD DEPRESSOR (M-10 ACE)BUSHING OVER LOAD DEPRESSOR (M-10 ACE)
-
345133744 RETAINER SPRING, PRELOAD ADJUST (M-10 ACE)RETAINER SPRING, PRELOAD ADJUST (M-10 ACE)
-
355133745 COLLAR SPRING, PRELOAD ADJUST (M-10 ACE)COLLAR SPRING, PRELOAD ADJUST (M-10 ACE)
-
367042206-067 SPRING COM (BLACK) (M-10 ACE)SPRING COM (BLACK) (M-10 ACE)
-
372683223 COVER SPRING NYLON (M-10 ACE)COVER SPRING NYLON (M-10 ACE)
-
385133778 COLLAR, SPRING SLOTTED (M-10 ACE)COLLAR, SPRING SLOTTED (M-10 ACE)
