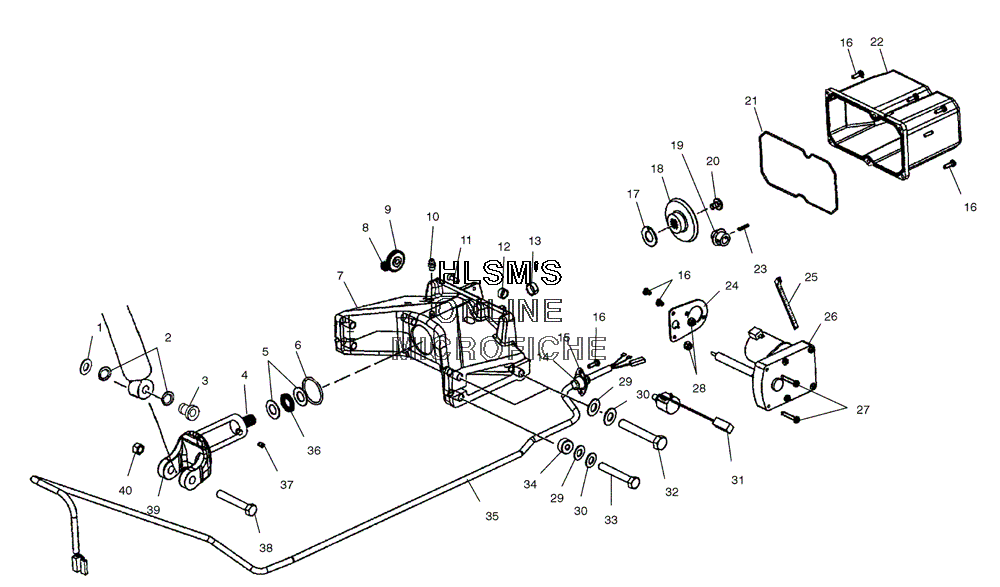

ELECTRIC MODULE для Polaris 500 CLASSIC (S04ND4BS) - 2004 года выпуска
-
№АртикулНазвание
-
15133403 BUSHINGBUSHING
-
25411092 O-RINGO-RING
-
35133402 BUSHING FLANGEBUSHING FLANGE
-
45133159 SHAFT SCREWSHAFT SCREW
-
53514388 BEARING RACEWAYBEARING RACEWAY
-
65412229 O-RINGO-RING
-
71541692 CASTING, ELEC ASSY (INCL. 6, 10, 12, 13)CASTING, ELEC ASSY (INCL. 6, 10, 12, 13)
-
85434728 GEAR PLASTIC, 12T SPURGEAR PLASTIC, 12T SPUR
-
95434727 GEAR PLASTIC, 32T SPURGEAR PLASTIC, 32T SPUR
-
107080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
117518088 SCREW HEXAGON HEAD YSCREW HEXAGON HEAD Y
-
123514385 BEARING PLAINBEARING PLAIN
-
133514403 BEARING PLAINBEARING PLAIN
-
145434492 GROMMET WIRE, M-10 ACE ELECGROMMET WIRE, M-10 ACE ELEC
-
155222998 PLATE, GROMMETPLATE, GROMMET
-
167511866 SCREWSCREW
-
177556201 WASHER THRUSTWASHER THRUST
-
183221135 GEAR BEVEL, LARGEGEAR BEVEL, LARGE
-
193221136 GEAR BEVEL, SMALLGEAR BEVEL, SMALL
-
207518152 SCREWSCREW
-
215434293 SEAL COVERSEAL COVER
-
225434292 COVER MOTOR, ELECTRICCOVER MOTOR, ELECTRIC
-
237661161 PIN DRIVLOKPIN DRIVLOK
-
245246536 PLATE MOTOR SUPPORTPLATE MOTOR SUPPORT
-
257080138 CABLE TIECABLE TIE
-
264010596 MOTOR ELECTRICMOTOR ELECTRIC
-
277518087 SCREW HEADSCREW HEAD
-
287547004 NUTNUT
-
297556042 WASH FLATWASH FLAT
-
307552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
314010780 POTENTIOMETER 10 TURNPOTENTIOMETER 10 TURN
-
327518006 SCREW HEXAGONSCREW HEXAGON
-
337518005 SCREW HEXAGONSCREW HEXAGON
-
345133351 SPACERSPACER
-
352461104 HARNESS WIRE, ELECTRIC (INCL. 14)HARNESS WIRE, ELECTRIC (INCL. 14)
-
363514387 BEARING THRUSTBEARING THRUST
-
377518037 SCREW SETSCREW SET
-
387515438 BOLTBOLT
-
395133325 CLEVIS MACHINEDCLEVIS MACHINED
-
407542439 NUT, NYLOKNUT, NYLOK
