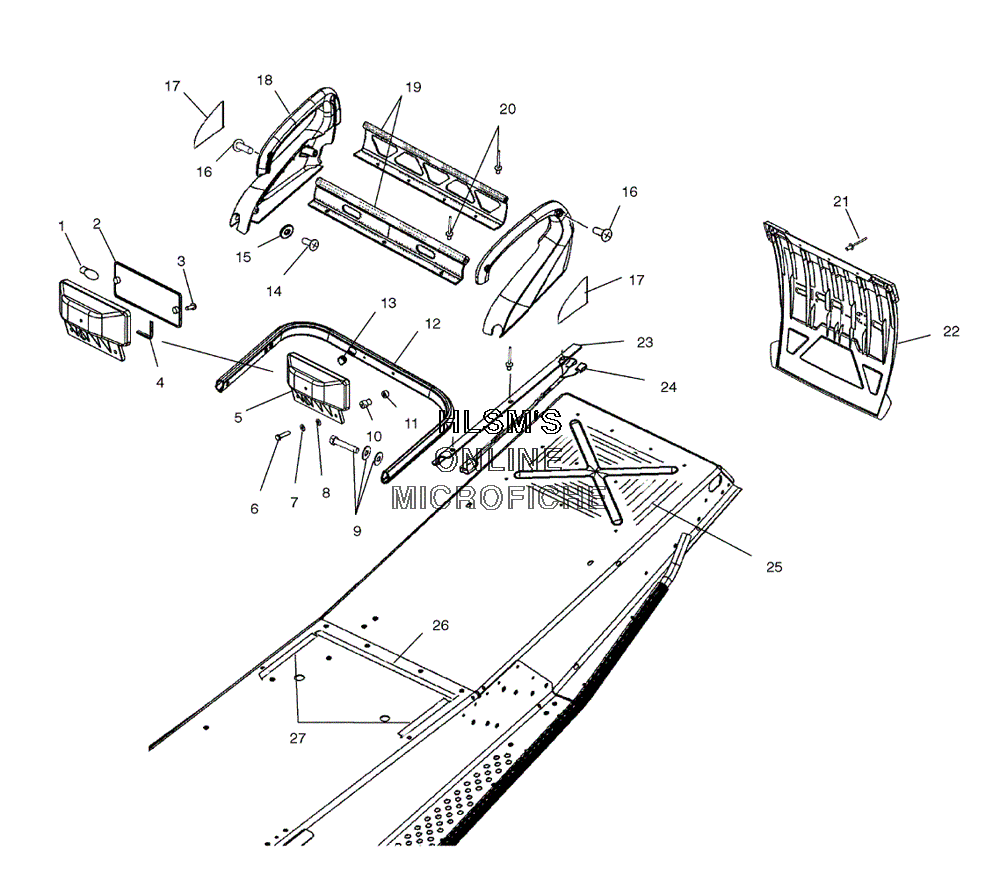

FRAME - CHASSIS #1 для Polaris TRAIL RMK 136 (S04NJ5BS) - 2004 года выпуска
-
№АртикулНазвание
-
14030043 BULBBULB
-
24032014 LENSLENS
-
37518019 SCREW PIN/HI-LOW (BLACK)SCREW PIN/HI-LOW (BLACK)
-
44032015 GASKETGASKET
-
52410307 TAILLIGHT ASSY (INCL. 1-4)TAILLIGHT ASSY (INCL. 1-4)
-
67515140 SCREWSCREW
-
77552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
87556033 WASHERWASHER
-
97512113 BOLTBOLT
-
97552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
97558301 WASHER, FLATWASHER, FLAT
-
103021186 MOUNT, RUBBER DURO 55MOUNT, RUBBER DURO 55
-
117555916 WASHER, NYLONWASHER, NYLON
-
122632460-309 BUMPER ASSY (REAR)BUMPER ASSY (REAR)
-
137081039 BUSHING-SNAPBUSHING-SNAP
-
147512094 SCREWSCREW
-
157558301 WASHER, FLATWASHER, FLAT
-
167517686 SCREWSCREW
-
177079667 DECAL-REFLECTOR (RED/LEFT)DECAL-REFLECTOR (RED/LEFT)
-
177079668 DECAL-REFLECTOR (RED/RIGHT)DECAL-REFLECTOR (RED/RIGHT)
-
182873764-293 SNOW SKIRT KIT (RED)SNOW SKIRT KIT (RED)
-
195133058 RACK MACHINED (FRONT)RACK MACHINED (FRONT)
-
195133059 RACK MACHINED (REAR)RACK MACHINED (REAR)
-
207661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
217621467 RIVET, BLINDRIVET, BLIND
-
225434356-1106 FLAP SNOW (BLACK/WHITE)FLAP SNOW (BLACK/WHITE)
-
235245726 GUARD WIRE TAILLIGHT (INCL. RIVETS)GUARD WIRE TAILLIGHT (INCL. RIVETS)
-
237661079 RIVET (.039-250)RIVET (.039-250)
-
242461065 JUMPER-SEAT, TAILLIGHTJUMPER-SEAT, TAILLIGHT
-
255412033 PROTECTOR BED (FRONT/REAR)PROTECTOR BED (FRONT/REAR)
-
255412074 PROTECTOR, BED (LEFT)PROTECTOR, BED (LEFT)
-
255412134 PROTECTOR, BED (RIGHT)PROTECTOR, BED (RIGHT)
-
265812360 GASKET SEAT BASE (1/4")GASKET SEAT BASE (1/4")
-
275812290 GASKET SEAT BASEGASKET SEAT BASE
