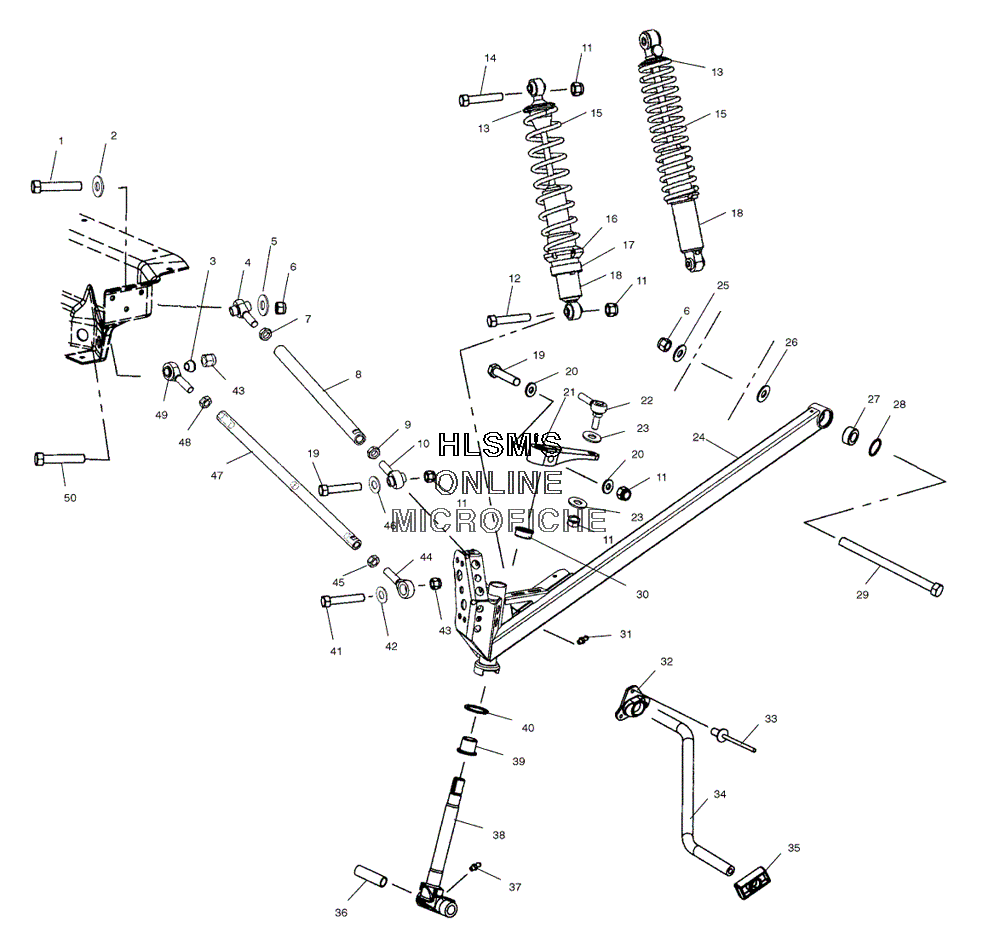

SUSPENSION - FRONT для Polaris TRAIL RMK 136 (S04NJ5BS) - 2004 года выпуска
-
№АртикулНазвание
-
17517980 BOLT HEXAGON CAPBOLT HEXAGON CAP
-
27556212 WASHER 7/16 SAEWASHER 7/16 SAE
-
35132454 BUSHING, SPACERBUSHING, SPACER
-
47061081 ROD END RADIUS (LEFT)ROD END RADIUS (LEFT)
-
57555852 WASHER, FLATWASHER, FLAT
-
67547066 NUT NYLOK YNUT NYLOK Y
-
77547117 NUT (LEFT)NUT (LEFT)
-
85133543-385 TUBE RADIUS ROD (UPPER/CLOUD SILVER)TUBE RADIUS ROD (UPPER/CLOUD SILVER)
-
85133691 TUBE RADIUS ROD (UPPER) (VERTICAL ESCAPE)TUBE RADIUS ROD (UPPER) (VERTICAL ESCAPE)
-
97542520 NUT, JAMNUT, JAM
-
107061061 ROD END, RADIUS (7/16)ROD END, RADIUS (7/16)
-
107061104 ROD END 7/16 (RIGHT) (VERTICAL ESCAPE)ROD END 7/16 (RIGHT) (VERTICAL ESCAPE)
-
117542439 NUT, NYLOKNUT, NYLOK
-
127515433 SCREWSCREW
-
135630580 RETAINER SPRING SLOTTEDRETAINER SPRING SLOTTED
-
147515415 SCREWSCREW
-
157041551-067 SPRING COMPRESSION, IFS (BLACK) (NITREX) (IF BUILT BEFORE 7/14/03)SPRING COMPRESSION, IFS (BLACK) (NITREX) (IF BUILT BEFORE 7/14/03)
-
157041552-067 SPRING COMPRESSION, IFS (BLACK) (IF BUILT AFTER 7/14/03)SPRING COMPRESSION, IFS (BLACK) (IF BUILT AFTER 7/14/03)
-
157041613-067 SPRING COMPRESSION, IFS (BLACK) (IFP)SPRING COMPRESSION, IFS (BLACK) (IFP)
-
157042315-293 SPRING COMPRESSION (RED)SPRING COMPRESSION (RED)
-
165431734 RING, SPRING PRELOAD ADJUSTER (NITREX)RING, SPRING PRELOAD ADJUSTER (NITREX)
-
171500063 RETAINER, SPRING BODY THREADED (NITREX)RETAINER, SPRING BODY THREADED (NITREX)
-
187042197 SHOCK IFS (NITREX)SHOCK IFS (NITREX)
-
187042249 SHOCK IFS, ARVIN (SEE SUSPENSION - SHOCK IFS FOR DETAILS)SHOCK IFS, ARVIN (SEE SUSPENSION - SHOCK IFS FOR DETAILS)
-
197517583 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
207555832 WASHERWASHER
-
215133060 ARM STEERING MACHINEDARM STEERING MACHINED
-
227061086 ROD END 3/8 (RIGHT)ROD END 3/8 (RIGHT)
-
237555797 WASHER, FLATWASHER, FLAT
-
241821201-293 TRAILING ARM, SVC ASSY (LEFT/RED) (INCL. 27, 28)TRAILING ARM, SVC ASSY (LEFT/RED) (INCL. 27, 28)
-
241821202-293 TRAILING ARM, SVC ASSY (RIGHT/RED) (INCL. 27, 28)TRAILING ARM, SVC ASSY (RIGHT/RED) (INCL. 27, 28)
-
241821260-293 TRAILING ARM, SVC ASSY (LEFT/RED) (INCL. 27, 28) (VERTICAL ESCAPE)TRAILING ARM, SVC ASSY (LEFT/RED) (INCL. 27, 28) (VERTICAL ESCAPE)
-
241821261-293 TRAILING ARM, SVC ASSY (RIGHT/RED) (INCL. 27, 28) (VERTICAL ESCAPE)TRAILING ARM, SVC ASSY (RIGHT/RED) (INCL. 27, 28) (VERTICAL ESCAPE)
-
257555820 WASHER, FLATWASHER, FLAT
-
265132364 CUP, TRAILING ARM MOUNTCUP, TRAILING ARM MOUNT
-
277061042 BEARING SPHERICAL, PLASTICBEARING SPHERICAL, PLASTIC
-
287710437 RING, RETAININGRING, RETAINING
-
297512099 SCREWSCREW
-
303573909 BUSHING FLANGEBUSHING FLANGE
-
317080433 FITTING LUBRICATION THREADEDFITTING LUBRICATION THREADED
-
325433814 BUSHING, TORSION BAR (9/16")BUSHING, TORSION BAR (9/16")
-
337621452 RIVETRIVET
-
345245217-067 BAR TORSION (BLACK)BAR TORSION (BLACK)
-
345246871-067 BAR TORSION (BLACK) (VERTICAL ESCAPE)BAR TORSION (BLACK) (VERTICAL ESCAPE)
-
355434371 SLIDE TORSION BAR, 9/16 ANTIRATTLESLIDE TORSION BAR, 9/16 ANTIRATTLE
-
355412063 SLIDE SWAY BAR 9/16 (VERTICAL ESCAPE)SLIDE SWAY BAR 9/16 (VERTICAL ESCAPE)
-
365010158 BUSHING, PIVOTBUSHING, PIVOT
-
377080306 FITTING, LUBE WITH BALL CKFITTING, LUBE WITH BALL CK
-
386230225-067 SHAFT SPINDLE WITH STEER STOP (BLACK)SHAFT SPINDLE WITH STEER STOP (BLACK)
-
393574208 BUSHING, FLANGEDBUSHING, FLANGED
-
407556509 BUSHINGBUSHING
-
417517906 BOLT HEXAGON CAPBOLT HEXAGON CAP
-
427556213 WASHERWASHER
-
437547216 NUT 1/2-70, NYLOKNUT 1/2-70, NYLOK
-
447061052 ROD END, RADIUS (RIGHT/LOWER)ROD END, RADIUS (RIGHT/LOWER)
-
447061103 ROD END, 1/2 (RIGHT) (VERTICAL ESCAPE)ROD END, 1/2 (RIGHT) (VERTICAL ESCAPE)
-
457542711 NUT JAMNUT JAM
-
467556153 WASHERWASHER
-
475132953 TUBE RADIUS ROD (LOWER)TUBE RADIUS ROD (LOWER)
-
487547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
497061087 ROD END RADIUS (LEFT/LOWER)ROD END RADIUS (LEFT/LOWER)
-
507518041 BOLT HEXAGON CAPBOLT HEXAGON CAP
