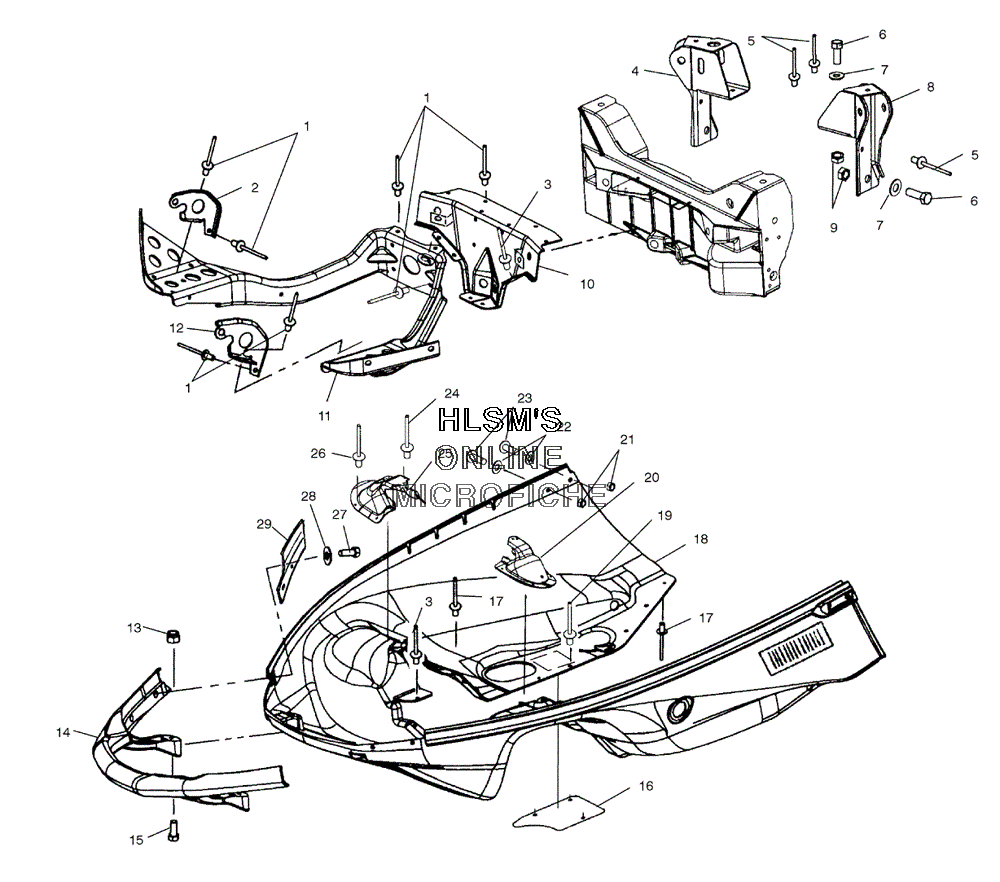

NOSEPAN ASSEMBLY #2 для Polaris TRAIL RMK 136 (S04NJ5BS) - 2004 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
25243992-067 HINGE PIVOT (LOWER/BLACK/RIGHT)HINGE PIVOT (LOWER/BLACK/RIGHT)
-
37621431 RIVETRIVET
-
41821108-067 WELD SHOCK TOWER 2.5 (RIGHT/BLACK)WELD SHOCK TOWER 2.5 (RIGHT/BLACK)
-
57661130 RIVETRIVET
-
67517935 SCREW HEXAGON SOCSCREW HEXAGON SOC
-
77556153 WASHER, 3/8 FWWASHER, 3/8 FW
-
81821107-067 WELD SHOCK TOWER 2.5 (LEFT/BLACK)WELD SHOCK TOWER 2.5 (LEFT/BLACK)
-
97547180 NUT FLANGED, 3/8-16 NYLON ZNUT FLANGED, 3/8-16 NYLON Z
-
105244049-067 BRACKET RAD ROD SUPPORT (BLACK)BRACKET RAD ROD SUPPORT (BLACK)
-
115244050 BRACE, PAN (LOWER)BRACE, PAN (LOWER)
-
125243991-067 HINGE PIVOT (LOWER/LEFT/BLACK)HINGE PIVOT (LOWER/LEFT/BLACK)
-
137542153 NUT, NYLOK FLANGEDNUT, NYLOK FLANGED
-
145433518-293 BUMPER ASSY (FRONT/BLACK)BUMPER ASSY (FRONT/BLACK)
-
157512163 BOLTBOLT
-
165245853 SHIELD, HEAT EXTENDEDSHIELD, HEAT EXTENDED
-
177621467 RIVET, BLINDRIVET, BLIND
-
185435270-070 NOSEPAN (BLACK)NOSEPAN (BLACK)
-
197621472 RIVETRIVET
-
205434346 COVER SHOCK TOWER (LEFT)COVER SHOCK TOWER (LEFT)
-
217542122 NUT, NYLOKNUT, NYLOK
-
227555827 WASHERWASHER
-
237515166 SCREWSCREW
-
247621418 RIVET, POPRIVET, POP
-
255434347 COVER SHOCK TOWER (RIGHT)COVER SHOCK TOWER (RIGHT)
-
255812271 FOILFOIL
-
267621485 RIVETRIVET
-
277517312 SCREWSCREW
-
287552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
295244888 GUIDE HOOD (LEFT)GUIDE HOOD (LEFT)
-
295244889 GUIDE HOOD (RIGHT)GUIDE HOOD (RIGHT)
