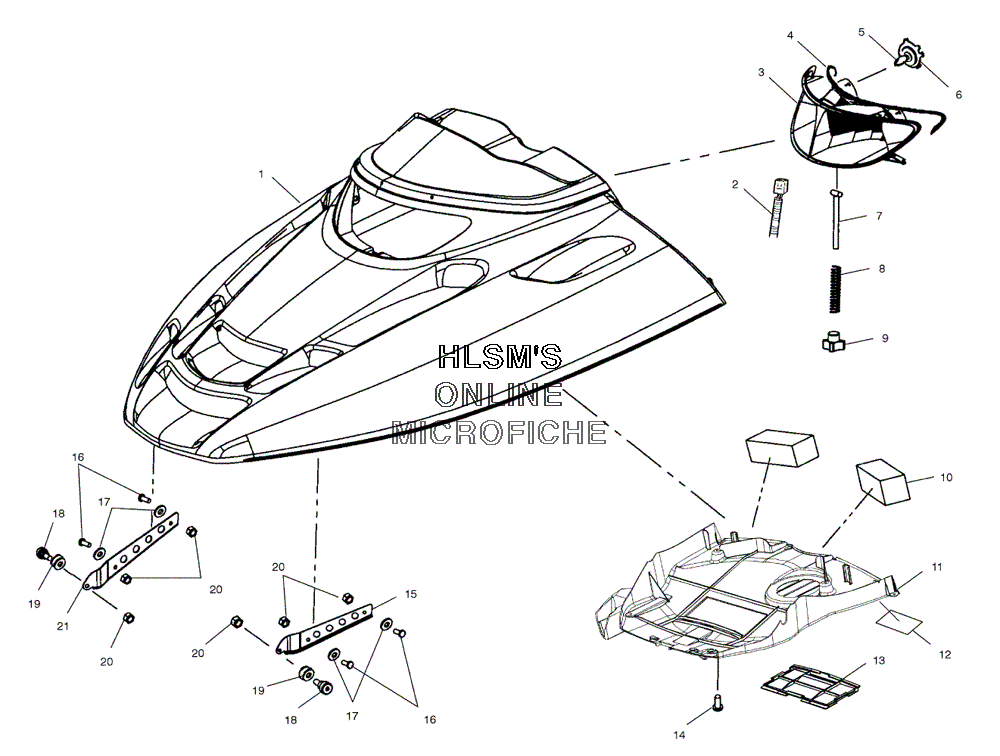

HOOD ASSEMBLY W/ HEADLIGHT для Polaris TRAIL RMK 136 (S04NJ5BS) - 2004 года выпуска
-
№АртикулНазвание
-
12632783-382 HOOD, SERVICE ASSY (SILVER VAPOR)HOOD, SERVICE ASSY (SILVER VAPOR)
-
22461015 HARNESS HEADLIGHT E/RHARNESS HEADLIGHT E/R
-
32410132 HEADLAMP, 2-BULB ASSY (INCL. BULBS)HEADLAMP, 2-BULB ASSY (INCL. BULBS)
-
45812450 SEAL HEADLIGHT, ONE PIECESEAL HEADLIGHT, ONE PIECE
-
52870448 BULB, QUARTZ. HEADLIGHTBULB, QUARTZ. HEADLIGHT
-
64032063 RETAINER, HEADLIGHT BULBRETAINER, HEADLIGHT BULB
-
77517872 BOLT TEE ADJUSTERBOLT TEE ADJUSTER
-
87041954 SPRING HEADLIGHT ADJUSTSPRING HEADLIGHT ADJUST
-
97080887 KNOB, HEADLIGHT ADJUST LOCKINGKNOB, HEADLIGHT ADJUST LOCKING
-
105811793 FOAM, PREFILTERFOAM, PREFILTER
-
112632491 PLENUM, FOIL ASSYPLENUM, FOIL ASSY
-
115812324 FOILFOIL
-
115811948 FOILFOIL
-
127170040 DECAL, SUSP SET-UPDECAL, SUSP SET-UP
-
135433660 COVER, HEADLIGHT ACCESSCOVER, HEADLIGHT ACCESS
-
147512068 SCREWSCREW
-
155243567-067 HINGE (UPPER/BLACK/LEFT)HINGE (UPPER/BLACK/LEFT)
-
167512240 BOLTBOLT
-
177558301 WASHER, FLATWASHER, FLAT
-
187512113 BOLTBOLT
-
195332403 SPACERSPACER
-
207542122 NUT, NYLOKNUT, NYLOK
-
215243568-067 HINGE (UPPER/BLACK/RIGHT)HINGE (UPPER/BLACK/RIGHT)
