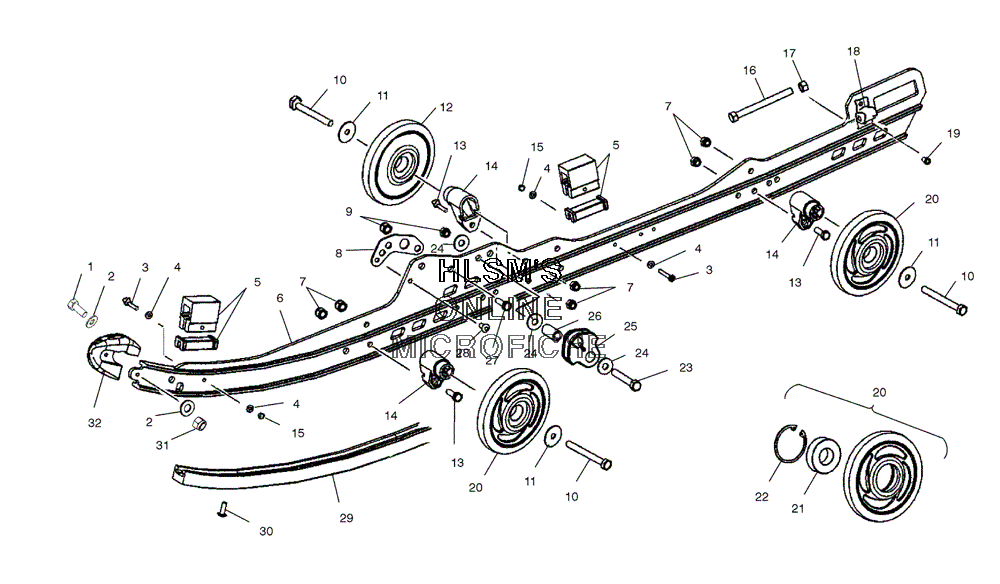

RAIL ASSEMBLY W/ IDLER WHEELS #1 для Polaris TRAIL RMK 136 (S04NJ5BS) - 2004 года выпуска
-
№АртикулНазвание
-
17512007 BOLTBOLT
-
27555792 WASHERWASHER
-
37510504 SCREWSCREW
-
47555783 WASHER, FLATWASHER, FLAT
-
55521498 BUMPER, JOUNCE REARBUMPER, JOUNCE REAR
-
55432946 LINER, BUMPERLINER, BUMPER
-
61541955 RAIL ASSY (LEFT) (INCL. 1-6, 18, 19, 31, 32)RAIL ASSY (LEFT) (INCL. 1-6, 18, 19, 31, 32)
-
61541956 RAIL ASSY (RIGHT) (INCL. 1-6, 18, 19, 31, 32)RAIL ASSY (RIGHT) (INCL. 1-6, 18, 19, 31, 32)
-
77542324 NUT, NYLOKNUT, NYLOK
-
85245411 BRACKET RAIL, REINFORCEMENTBRACKET RAIL, REINFORCEMENT
-
97542439 NUT, NYLOKNUT, NYLOK
-
107515346 SCREWSCREW
-
117556179 WASHER SPRING, CONWASHER SPRING, CON
-
121590317 WHEEL, BOGIE PLAIN ASSYWHEEL, BOGIE PLAIN ASSY
-
121590328 WHEEL, BOGIE PLAIN ASSYWHEEL, BOGIE PLAIN ASSY
-
137515317 BOLTBOLT
-
145631065 BLOCK WHEEL MOUNTBLOCK WHEEL MOUNT
-
157541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
167517227 SCREWSCREW
-
177542404 NUTNUT
-
185130530 BLOCK IDLER BOLT ADJUSTERBLOCK IDLER BOLT ADJUSTER
-
197621501 RIVETRIVET
-
201590318-293 WHEEL SCROLLED ASSY (RED) (INCL. 21, 22)WHEEL SCROLLED ASSY (RED) (INCL. 21, 22)
-
201590328 WHEEL, BOGIE ASSY (ESCAPE)WHEEL, BOGIE ASSY (ESCAPE)
-
213514303 BEARING (1 PER WHEEL)BEARING (1 PER WHEEL)
-
227718407 RING-RETAINING (1 PER WHEEL)RING-RETAINING (1 PER WHEEL)
-
237515438 BOLTBOLT
-
247555983 WASHER FLATWASHER FLAT
-
255434334 GUIDE SPRING SQUAREGUIDE SPRING SQUARE
-
257661123 PIN CLEVISPIN CLEVIS
-
257661644 PIN, HITCHPIN, HITCH
-
265333948 SPACERSPACER
-
277512457 BOLTBOLT
-
287661845 RIVETRIVET
-
295521632 SLIDER, .45/61" SERVICE BASICSLIDER, .45/61" SERVICE BASIC
-
307515199 SCREWSCREW
-
317541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
325434355 CAP RAIL TIPCAP RAIL TIP
