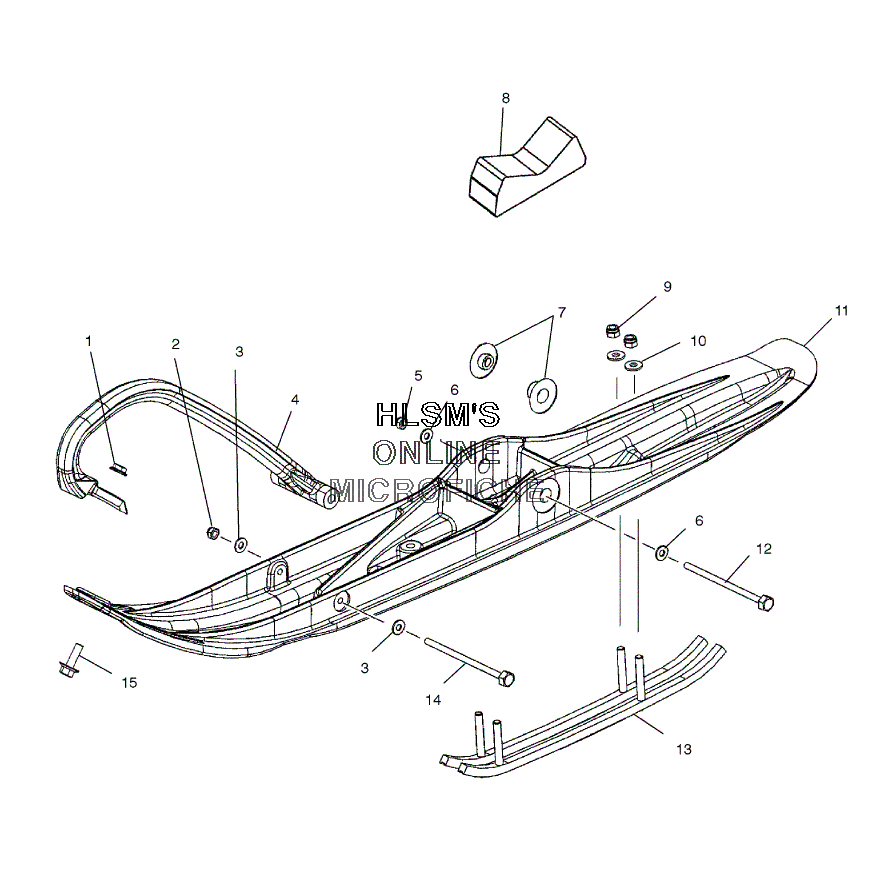

SKI ASSEMBLY для Polaris TRAIL RMK 136 (S04NJ5BS) - 2004 года выпуска
-
№АртикулНазвание
-
17542321 NUT, FLANGENUT, FLANGE
-
27542122 NUT, NYLOKNUT, NYLOK
-
37558301 WASHER, FLATWASHER, FLAT
-
45434618-293 TOE PLASTIC SKITOE PLASTIC SKI
-
57542439 NUT, NYLOKNUT, NYLOK
-
67556130 WASHERWASHER
-
75132637 BUSHING, METAL (.390 ID)BUSHING, METAL (.390 ID)
-
85412018 STOP, RUBBERSTOP, RUBBER
-
97542324 NUT, NYLOKNUT, NYLOK
-
107555843 WASHER WROUGHTWASHER WROUGHT
-
111821335-070 SKI, SVC ASSY (LEFT/BLACK) (INCL. 7)SKI, SVC ASSY (LEFT/BLACK) (INCL. 7)
-
111821336-070 SKI, SVC ASSY (RIGHT/BLACK) (INCL. 7)SKI, SVC ASSY (RIGHT/BLACK) (INCL. 7)
-
127517968 SCREW HEXAGON CAPSCREW HEXAGON CAP
-
132874334 SKAG, CARBIDE KIT (4")SKAG, CARBIDE KIT (4")
-
147518047 BOLT HEXAGON CAPBOLT HEXAGON CAP
-
157518070 SCREWSCREW
