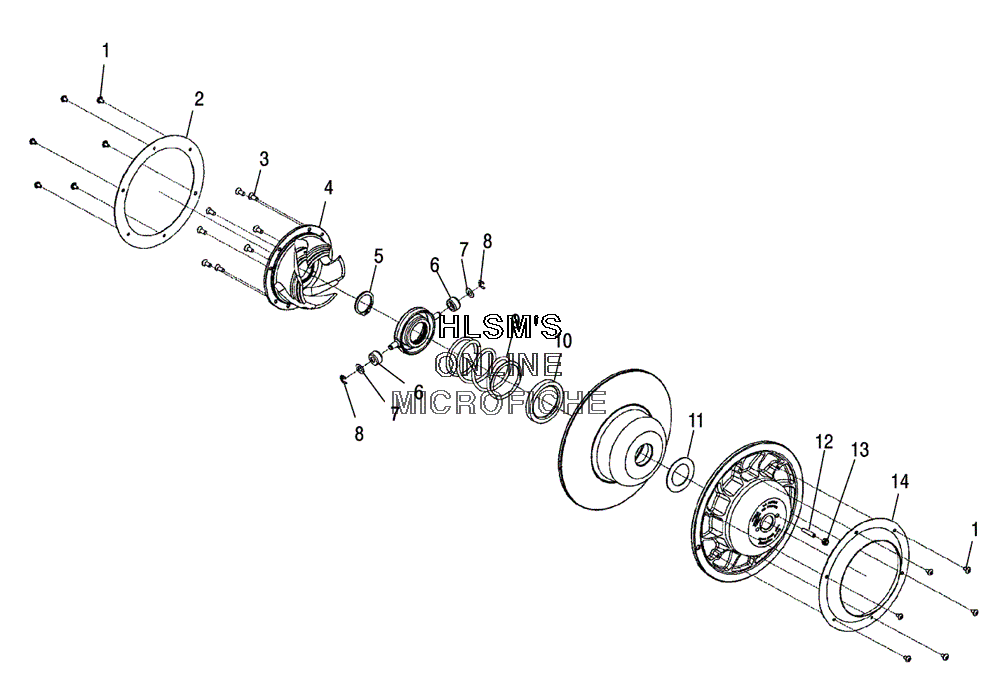

CLUTCH - DRIVEN для Polaris 440 IQ (S05MX4CS) - 2005 года выпуска
-
№АртикулНазвание
-
17518023 SCREW THEAD TEAM#105099SCREW THEAD TEAM#105099
-
25246216 PLATE WINDAGE MOV TEAM#430085PLATE WINDAGE MOV TEAM#430085
-
33233996 SCREW CAP TORXSCREW CAP TORX
-
45133721 RAMP DRIVENRAMP DRIVEN
-
57710522 RETAINING RING EXTENSIONRETAINING RING EXTENSION
-
65434534 ROLLERROLLER
-
77556226 WASHER THRUSTWASHER THRUST
-
87710523 RETAINING E-RING EXTENSIONRETAINING E-RING EXTENSION
-
97043057 SPRING DRIVEN CLUTCH (LEFT/RED/BLUE)SPRING DRIVEN CLUTCH (LEFT/RED/BLUE)
-
107556227 WASHER THRUSTWASHER THRUST
-
117556225 SPACERSPACER
-
127518024 SCREW SET HEXAGON SKTSCREW SET HEXAGON SKT
-
137542103 NUT, FLEXLOCNUT, FLEXLOC
-
145246217 PLATE WINDAGE STATPLATE WINDAGE STAT
-
141322433 DRIVEN CLUTCH ASSY (INCL. 1, 2, 5-9, 11-14)DRIVEN CLUTCH ASSY (INCL. 1, 2, 5-9, 11-14)
