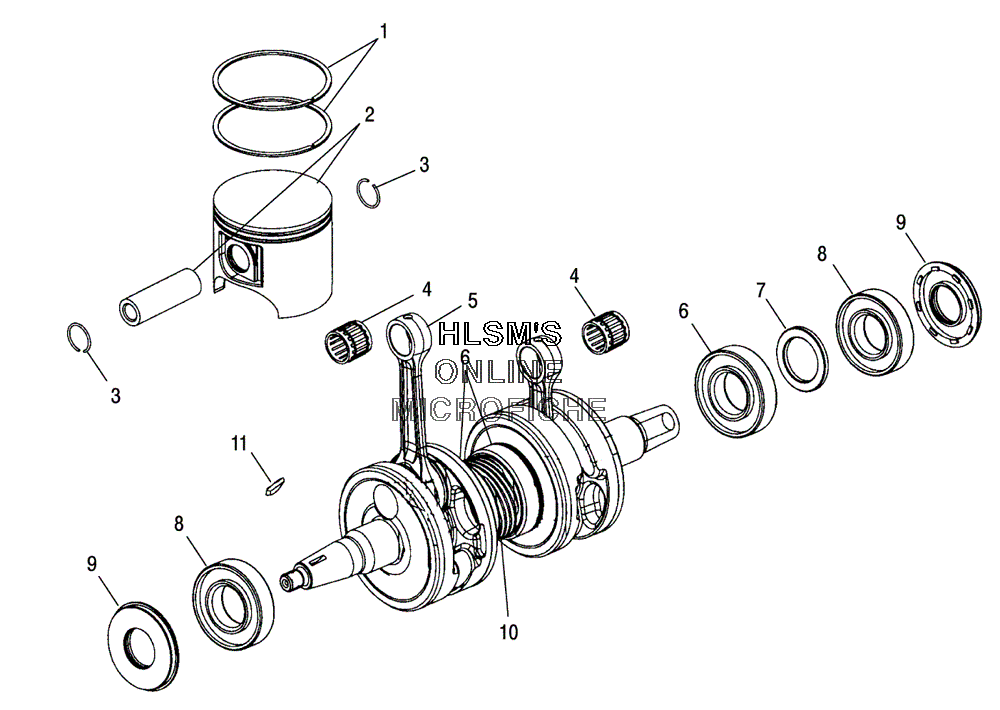

PISTON AND CRANKSHAFT для Polaris 440 IQ (S05MX4CS) - 2005 года выпуска
-
№АртикулНазвание
-
12202156 PISTON RING KIT (1/2K 1.2MM 66)PISTON RING KIT (1/2K 1.2MM 66)
-
22202155 PISTON KIT (INCL. 1, 3 AND PISTON PIN)PISTON KIT (INCL. 1, 3 AND PISTON PIN)
-
33022950 CIRCLIP, PISTON (20MM)CIRCLIP, PISTON (20MM)
-
43514365 BEARING PNPIN, KOYOBEARING PNPIN, KOYO
-
52201868 CONNECT ROD KITCONNECT ROD KIT
-
63514363 BEARING BALL, KOYOBEARING BALL, KOYO
-
75131899 SPACERSPACER
-
83585503 BEARING, BALLBEARING, BALL
-
95411394 SEAL, FLANGEDSEAL, FLANGED
-
105133689 GEAR PUMP DRIVE 10 STARTGEAR PUMP DRIVE 10 START
-
117721117 KEY, WOODRUFFKEY, WOODRUFF
-
112202688 CRANKSHAFT KIT (INCL. 6-10)CRANKSHAFT KIT (INCL. 6-10)
