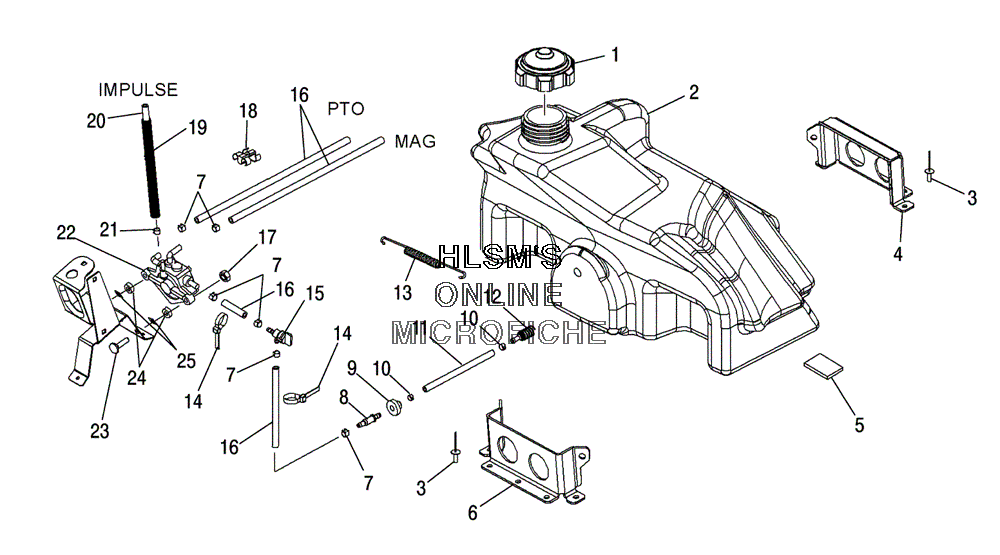

FUEL SYSTEM для Polaris 440 IQ (S05MX4CS) - 2005 года выпуска
-
№АртикулНазвание
-
12520296 CAP GAS, VENTEDCAP GAS, VENTED
-
22683578 TANK COVERTANK COVER
-
22520402 FUEL TANK ASSY (INCL. 12)FUEL TANK ASSY (INCL. 12)
-
37661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
45246117 BRACKET TANK HOLD DOWN (REAR)BRACKET TANK HOLD DOWN (REAR)
-
55810947 FOAM, SEALFOAM, SEAL
-
65246118 BRACKET TANK HOLD DOWN (FRONT)BRACKET TANK HOLD DOWN (FRONT)
-
77080307 CLAMP, HOSECLAMP, HOSE
-
87052375 FITTING STRAIGHTFITTING STRAIGHT
-
95435941 GROMMET 3/4" VITONGROMMET 3/4" VITON
-
107080402 RING, COMPRESSIONRING, COMPRESSION
-
118350019-600 FUEL LINE ESTERFUEL LINE ESTER
-
127052301 PICK UP FUEL, WITH FILTER 105MICRNPICK UP FUEL, WITH FILTER 105MICRN
-
137081061 SPRINGSPRING
-
147080138 CABLE TIECABLE TIE
-
157052249 VALVE FUEL, PLASTIC 90Ш (HOSEVALVE FUEL, PLASTIC 90Ш (HOSE
-
168350018-600 TUBING ETHER ERETHNE (160 CM)TUBING ETHER ERETHNE (160 CM)
-
177542122 NUT NYLOKNUT NYLOK
-
187080525 T-CLIPT-CLIP
-
198360052-305 TUBING, CONVOLUTEDTUBING, CONVOLUTED
-
208450040-600 LINE FUEL (1/4 ID/600 CM)LINE FUEL (1/4 ID/600 CM)
-
217080003 CLAMP, HOSECLAMP, HOSE
-
222520306 PUMP FUEL 2 OULET, MIKUNIPUMP FUEL 2 OULET, MIKUNI
-
237512275 BOLT CARRIAGEBOLT CARRIAGE
-
247555932 WASHER, NYLONWASHER, NYLON
-
257670021 NUT, SPEEDNUT, SPEED
