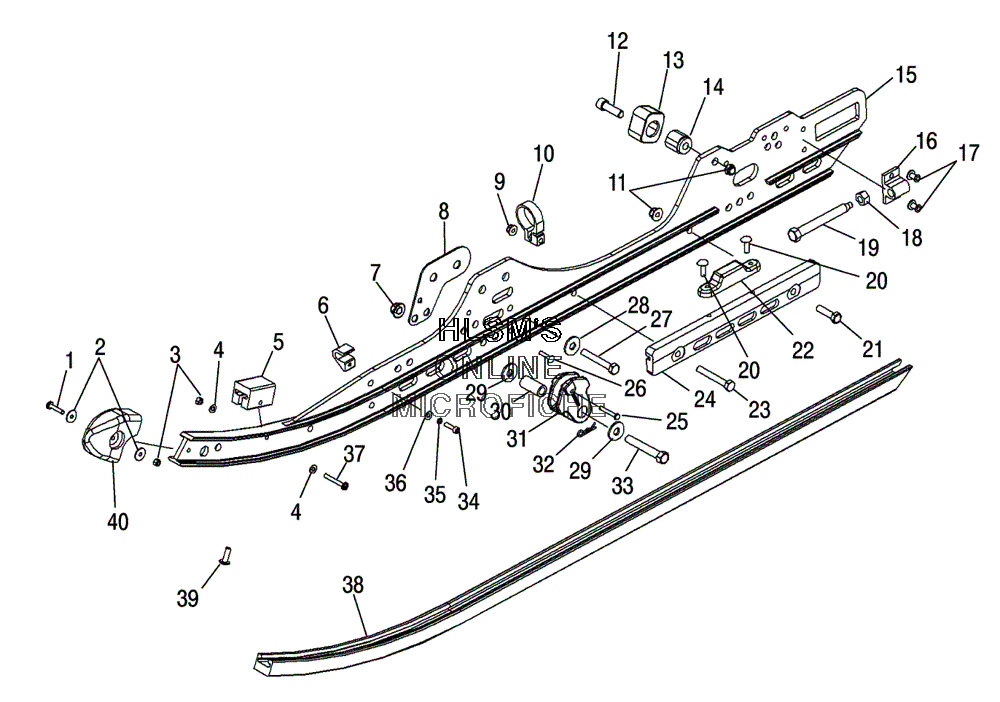

RAIL ASSEMBLY для Polaris 440 IQ (S05MX4CS) - 2005 года выпуска
-
№АртикулНазвание
-
17518335 BOLTBOLT
-
27555792 WASHERWASHER
-
37541925 NUT, NYLOK 10-24 YNUT, NYLOK 10-24 Y
-
47555783 WASHER, FLATWASHER, FLAT
-
55521499 BUMPER, JOUNCE (FRONT)BUMPER, JOUNCE (FRONT)
-
65132997 CLAMP HOSECLAMP HOSE
-
77547263 NUT NYLOKNUT NYLOK
-
85247759 BRACKET RAIL REINFORCEDBRACKET RAIL REINFORCED
-
97542343 NUT, FLANGENUT, FLANGE
-
105132832 CLAMP RESERVIORCLAMP RESERVIOR
-
117542411 NUT, FLEXLOCNUT, FLEXLOC
-
127515545 BOLTBOLT
-
135410925 BUMPER, PIVOT ARMBUMPER, PIVOT ARM
-
145131113 MOUNT, BUMPERMOUNT, BUMPER
-
151542119 RAIL 121, ASSY (LEFT) (INCL. 5, 16, 22, 40)RAIL 121, ASSY (LEFT) (INCL. 5, 16, 22, 40)
-
151542120 RAIL 121, ASSY (RIGHT) (INCL. 5, 16, 22, 40)RAIL 121, ASSY (RIGHT) (INCL. 5, 16, 22, 40)
-
165132444 BLOCK, IDLER BOLT ADJUSTER 7/16BLOCK, IDLER BOLT ADJUSTER 7/16
-
177621501 RIVETRIVET
-
187547156 NUTNUT
-
197517773 SCREW HEADSCREW HEAD
-
207515199 SCREWSCREW
-
217512392 BOLTBOLT
-
225432166 BUMPERBUMPER
-
237517581 SCREWSCREW
-
245134769 PLATE RAIL REINFORCED MODPLATE RAIL REINFORCED MOD
-
257661123 PIN CLEVISPIN CLEVIS
-
267661845 RIVETRIVET
-
277515319 BOLTBOLT
-
287558402 WASHER, FLATWASHER, FLAT
-
297555983 WASHER FLATWASHER FLAT
-
305333948 SPACERSPACER
-
315434389 GUIDE SPRING WIREGUIDE SPRING WIRE
-
327661644 PIN, HITCHPIN, HITCH
-
337515438 BOLTBOLT
-
347512014 SCREWSCREW
-
357552615 WASHER, LOCKWASHER, LOCK
-
367555783 WASHER, FLATWASHER, FLAT
-
377510504 SCREWSCREW
-
385521632 SLIDER, SERVICE BASICSLIDER, SERVICE BASIC
-
397515199 SCREWSCREW
-
405435527 CAP RAIL TIP, UHMWCAP RAIL TIP, UHMW
