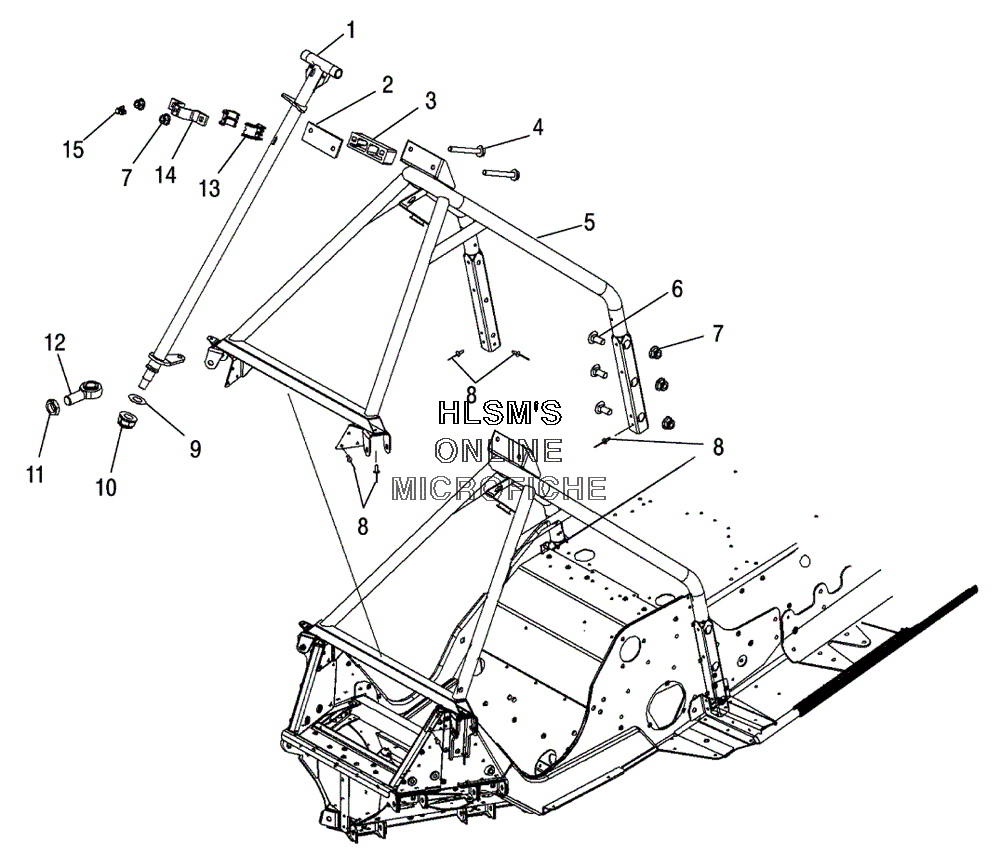

STEERING POST ASSEMBLY для Polaris 440 IQ (S05MX4CS) - 2005 года выпуска
-
№АртикулНазвание
-
11821531-067 STEERING POST, MOD (BLACK)STEERING POST, MOD (BLACK)
-
25249193 PLATE STEERING HOOPPLATE STEERING HOOP
-
35134766 BLOCK STEERINGBLOCK STEERING
-
47518340 BOLT HEXAGON FLANGEBOLT HEXAGON FLANGE
-
51014689-067 STEERING HOOP (BLACK)STEERING HOOP (BLACK)
-
67512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
77542343 NUT, FLANGENUT, FLANGE
-
87661637 RIVET, INTERLOCK ZRIVET, INTERLOCK Z
-
97555877 WASHER, THRUSTWASHER, THRUST
-
107547291 NUT NYLOK, SHOULDERNUT NYLOK, SHOULDER
-
117547292 NUT, JAMNUT, JAM
-
121822738 ROD END WITH BUSHINGROD END WITH BUSHING
-
135434775 BUSHING (.75)BUSHING (.75)
-
145132967 BRACKET STEERING POST ALUMINUMBRACKET STEERING POST ALUMINUM
-
157080510 FITTING, ZERK 90 DEGREEFITTING, ZERK 90 DEGREE
