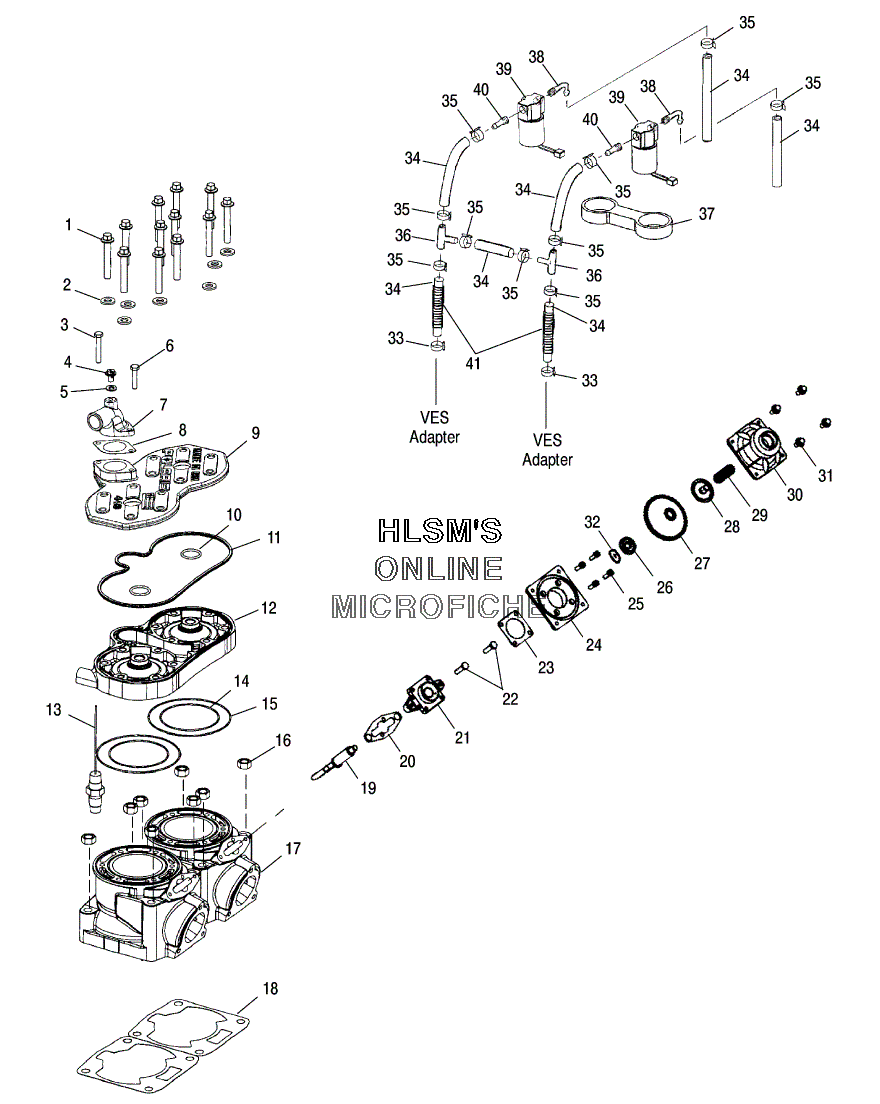

CYLINDER ASSEMBLY для Polaris 440 IQ (S05MX4CS) - 2005 года выпуска
-
№АртикулНазвание
-
17517281 SCREWSCREW
-
27556082 WASHERWASHER
-
37516818 SCREWSCREW
-
47517679 SCREW, HEXAGON FLANGESCREW, HEXAGON FLANGE
-
57555998 WASHER, FLATWASHER, FLAT
-
67516822 SCREWSCREW
-
75134756 COVER THERMOSTAT M6 BLEED MACHCOVER THERMOSTAT M6 BLEED MACH
-
85830159 GASKET, THERMOSTAT COVERGASKET, THERMOSTAT COVER
-
95631539-366 COVER HEAD (LIBERTY RED)COVER HEAD (LIBERTY RED)
-
105411411 O-RINGO-RING
-
115411465 SEALSEAL
-
123021651 HEAD CYLINDER (66MM) (HIGH OCTANE)HEAD CYLINDER (66MM) (HIGH OCTANE)
-
122202188 92 OCTANE CYLINDER HEAD KIT (INCL. 8, 10, 11, 14, 15 AND CLUTCH WEIGHTS)92 OCTANE CYLINDER HEAD KIT (INCL. 8, 10, 11, 14, 15 AND CLUTCH WEIGHTS)
-
134010398 SENSOR THERMISTERSENSOR THERMISTER
-
145411199 O-RINGO-RING
-
155411359 O-RINGO-RING
-
167547013 NUTNUT
-
173021604 CYLINDERCYLINDER
-
185812494 GASKET CYLINDER BASE, WEBGASKET CYLINDER BASE, WEB
-
191202159 GUILLOTINE ASSYGUILLOTINE ASSY
-
205812087 GASKETGASKET
-
211201919 HOUSING WITH BUSH H.DOWEL ASSYHOUSING WITH BUSH H.DOWEL ASSY
-
227516823 SCREWSCREW
-
235433375 GASKET, HOUSINGGASKET, HOUSING
-
241202037 ADAPTER ASSYADAPTER ASSY
-
257517314 SCREWSCREW
-
265132690 VALVE GUILLOTINE 800 MACHVALVE GUILLOTINE 800 MACH
-
275410000 BELLOWS EXHAUST MODIFIEDBELLOWS EXHAUST MODIFIED
-
285631381 CAP/NUT BELLOWS EXHAUST VALVE DOMCAP/NUT BELLOWS EXHAUST VALVE DOM
-
297041786-01 SPRNG COMPRESSION (RED/WHITE)SPRNG COMPRESSION (RED/WHITE)
-
301202640 HOUSING WITH BUSHING ASSYHOUSING WITH BUSHING ASSY
-
317516820 SCREWSCREW
-
325132950 WASHER BELLOWS, EXHAUST VALVE DOMWASHER BELLOWS, EXHAUST VALVE DOM
-
337080003 CLAMP, HOSECLAMP, HOSE
-
348450040-600 LINE FUEL (1/4 ID/600 CM)LINE FUEL (1/4 ID/600 CM)
-
357080138 CABLE TIECABLE TIE
-
367052075 FITTING, TEEFITTING, TEE
-
375412092 RETAINER SOLENOIDRETAINER SOLENOID
-
387052065 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
394010305 CONTROL, VALUE EV SOLENOIDCONTROL, VALUE EV SOLENOID
-
407052099 FITTINGFITTING
-
418360052-30 TUBING CONVOLUTED (.500 ID, 30CM)TUBING CONVOLUTED (.500 ID, 30CM)
