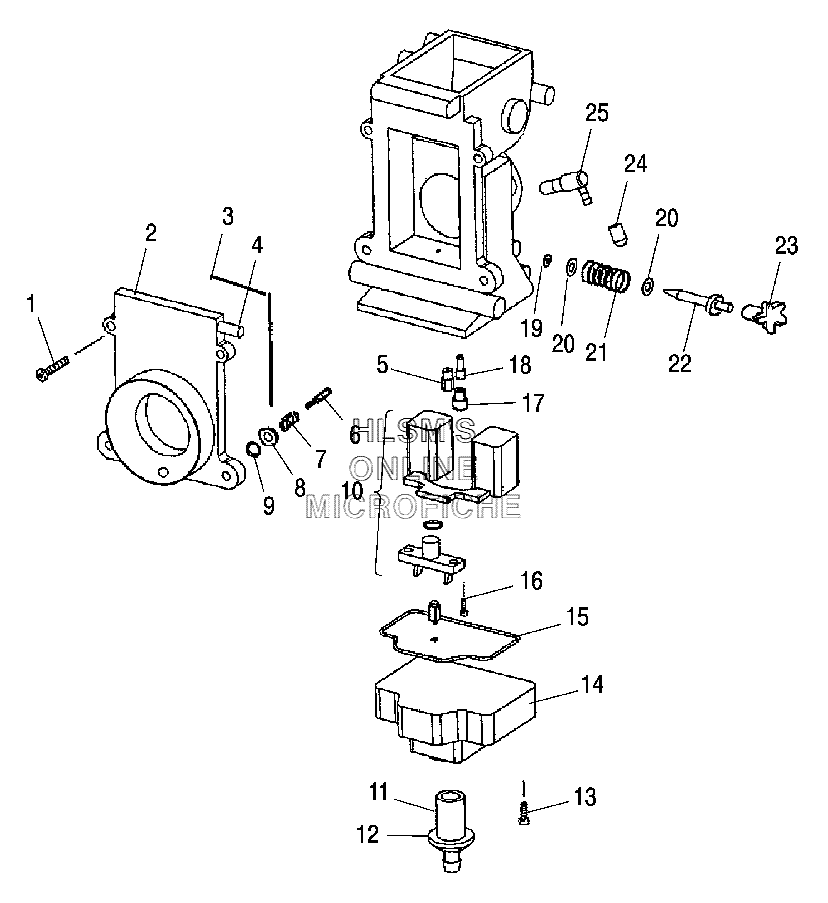

CARBURETOR - LOWER для Polaris 500 XC SP (S07NP5CS) - 2007 года выпуска
-
№АртикулНазвание
-
13130825 SCREWSCREW
-
23131335 FUNNEL ASSYFUNNEL ASSY
-
33131356 O-RING, LONG AIR FUNNELO-RING, LONG AIR FUNNEL
-
43130808 PINPIN
-
53130599 JET, MAIN (#410)JET, MAIN (#410)
-
63131336 SCREW AIRSCREW AIR
-
73131371 SPRINGSPRING
-
83131372 WASHERWASHER
-
93130522 O-RINGO-RING
-
103130859 FLOAT ASSYFLOAT ASSY
-
113131248 BOLT DRAINBOLT DRAIN
-
123130863 O-RINGO-RING
-
133130824 SCREWSCREW
-
143130858 FLOAT, BODYFLOAT, BODY
-
153130861 O-RINGO-RING
-
163130860 SCREWSCREW
-
173130068 JET, PILOT (#45)JET, PILOT (#45)
-
183130769 JET, STARTER (#VM11/22 145)JET, STARTER (#VM11/22 145)
-
193130835 PACKINGPACKING
-
203130837 WASHERWASHER
-
213130836 SPRINGSPRING
-
223130987 ADJUSTERADJUSTER
-
233130986 CAPCAP
-
243130479 CAPCAP
-
257051020 VALVE, CHECK, 90 DEG.VALVE, CHECK, 90 DEG.
-
1253444 CARBURETOR ASSYCARBURETOR ASSY
