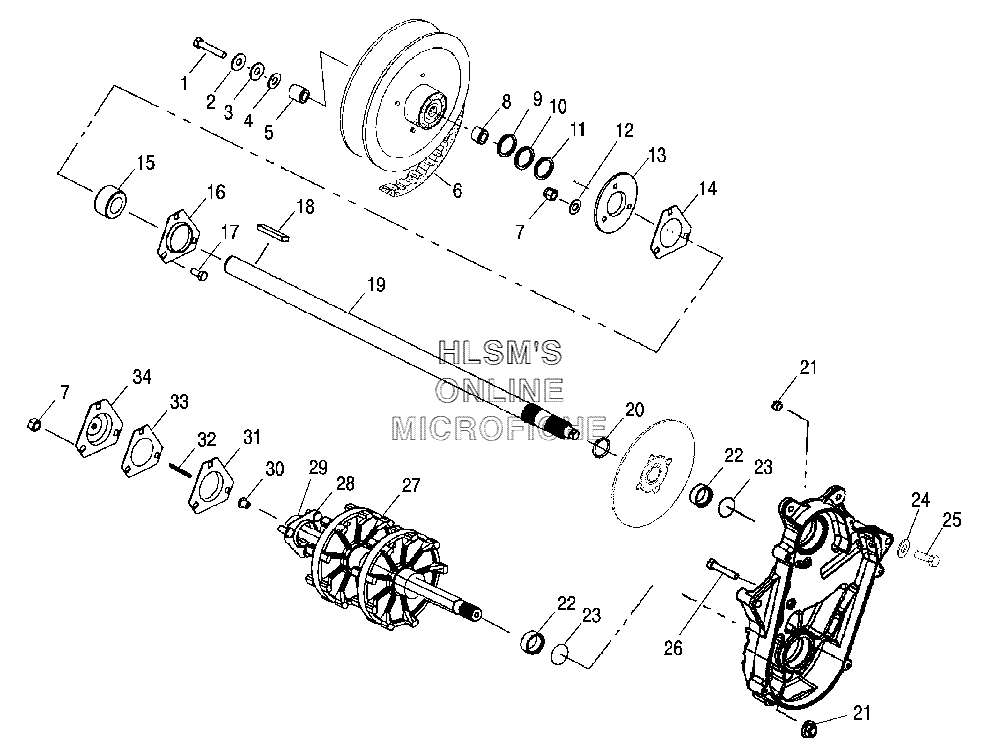

DRIVE TRAIN ASSEMBLY W/ DRIVE BELT для Polaris 500 XC SP (S07NP5CS) - 2007 года выпуска
-
№АртикулНазвание
-
17515369 BOLTBOLT
-
27555701 WASHER, FLATWASHER, FLAT
-
37555957 WASHERWASHER
-
47555734 WASHER, FLATWASHER, FLAT
-
55135621 BUSHINGBUSHING
-
63211080 BELT DRIVEBELT DRIVE
-
77542324 NUT, NYLOKNUT, NYLOK
-
85020837 SPACERSPACER
-
97555917 WASHERWASHER
-
107555864 WASHERWASHER
-
117556509 BUSHINGBUSHING
-
127558402 WASHER, FLATWASHER, FLAT
-
135241359 FLANGE, RELUBE W/ZERKFLANGE, RELUBE W/ZERK
-
137080561 FITTING, LUB/VENFITTING, LUB/VEN
-
145811095 GASKET, JACKSHAFT (BLACK)GASKET, JACKSHAFT (BLACK)
-
153514448 BEARING (25MM)BEARING (25MM)
-
165222751 FLANGETTEFLANGETTE
-
177512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
187721128 KEY (1/4X3/16X2.75)KEY (1/4X3/16X2.75)
-
191332457 JACKSHAFT ASSY., W/ BEARING (INCL. 14, 19)JACKSHAFT ASSY., W/ BEARING (INCL. 14, 19)
-
207710422 RING, RETAININGRING, RETAINING
-
217542423 NUT, FLANGENUT, FLANGE
-
225020588 SLEEVE, SEALSLEEVE, SEAL
-
235410613 O-RINGO-RING
-
247558403 WASHER, WROUGHTWASHER, WROUGHT
-
257518002 SCREWSCREW
-
267515428 BOLT, CARRIAGEBOLT, CARRIAGE
-
271590346 DRSHAFT ASSY. W/SMOOTH (INCL. 27, 28)DRSHAFT ASSY. W/SMOOTH (INCL. 27, 28)
-
281012945 FLANGETTE ASSY., W/SCREWSFLANGETTE ASSY., W/SCREWS
-
293514525 BEARINGBEARING
-
303280019 BUSHING METAL SPEEDOMETERBUSHING METAL SPEEDOMETER
-
315243529 FLANGETTE OFFSET, W/HOLEFLANGETTE OFFSET, W/HOLE
-
323280017 KEY, SPEEDOMETER, SQUAREKEY, SPEEDOMETER, SQUARE
-
335830012 GASKET, DRIVE ADAPTORGASKET, DRIVE ADAPTOR
-
343280116 ADAPTER, DRIVE, W/ZERKADAPTER, DRIVE, W/ZERK
-
347080433 FITTING, LUBRICATION THREADEDFITTING, LUBRICATION THREADED
