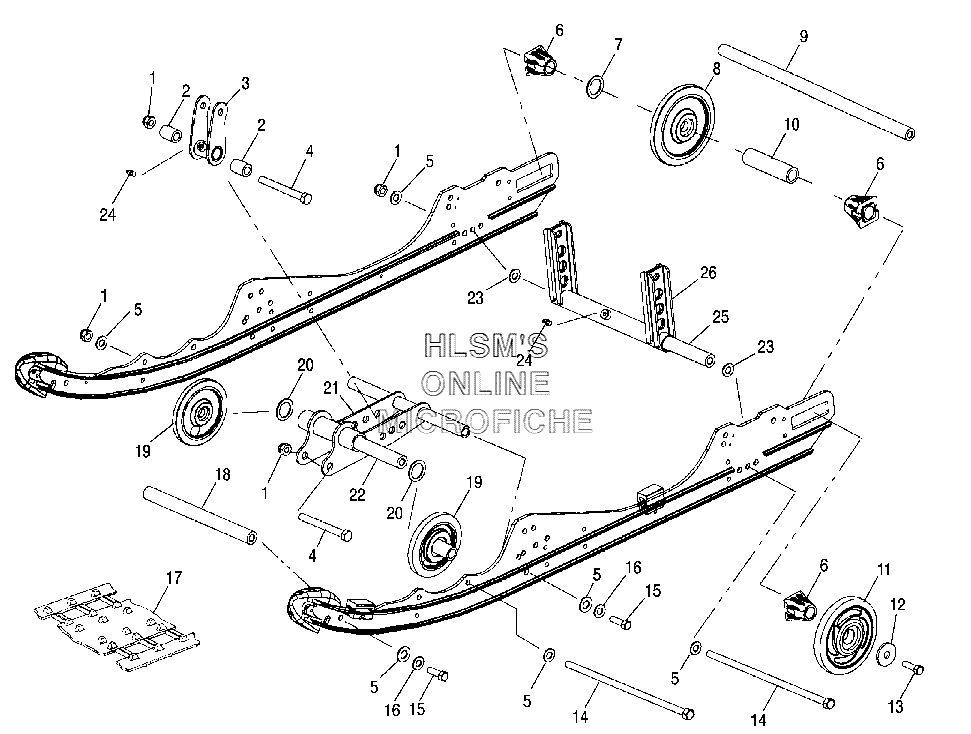

SUSPENSION - REAR для Polaris 500 XC SP (S07NP5CS) - 2007 года выпуска
-
№АртикулНазвание
-
17542439 NUT, NYLOKNUT, NYLOK
-
25133233 BUSHINGBUSHING
-
31541477-067 SHOCK PIVOT ARM (2.5) (BLACK)SHOCK PIVOT ARM (2.5) (BLACK)
-
47515417 SCREWSCREW
-
57555806 WASHER, FLATWASHER, FLAT
-
65432535 SPACER, IDLERSPACER, IDLER
-
77555918 BUSHINGBUSHING
-
81594087 WHEEL ASSY, PLAIN (6.38 O.D.)WHEEL ASSY, PLAIN (6.38 O.D.)
-
95020744 SHAFT, IDLERSHAFT, IDLER
-
105333285 SPACER, IDLER, LONGSPACER, IDLER, LONG
-
111590303-244 WHEEL IDLER ASSY. (SLIVER METAL)WHEEL IDLER ASSY. (SLIVER METAL)
-
117710444 RING, RETAININGRING, RETAINING
-
113514384 BEARINGBEARING
-
127556130 WASHERWASHER
-
137517731 BOLTBOLT
-
147517921 SCREWSCREW
-
157517247 SCREWSCREW
-
167552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
175412281 TRACK (121''X 15''X.91)TRACK (121''X 15''X.91)
-
175222840 CLIP, GUIDECLIP, GUIDE
-
185020723 SHAFT, PIVOT ARMSHAFT, PIVOT ARM
-
191541485 WHEEL ASSY, W/ HOLEWHEEL ASSY, W/ HOLE
-
207556301 BUSHINGBUSHING
-
211541711-067 WELD MOUNT SHOCK (BLACK)WELD MOUNT SHOCK (BLACK)
-
225132490 SHAFTSHAFT
-
237555893 WASHER, FLATWASHER, FLAT
-
247080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
255333404 SHAFTSHAFT
-
261541707-067 WELD ARM, PIVOT, 3.75 (REAR/BLACK)WELD ARM, PIVOT, 3.75 (REAR/BLACK)
