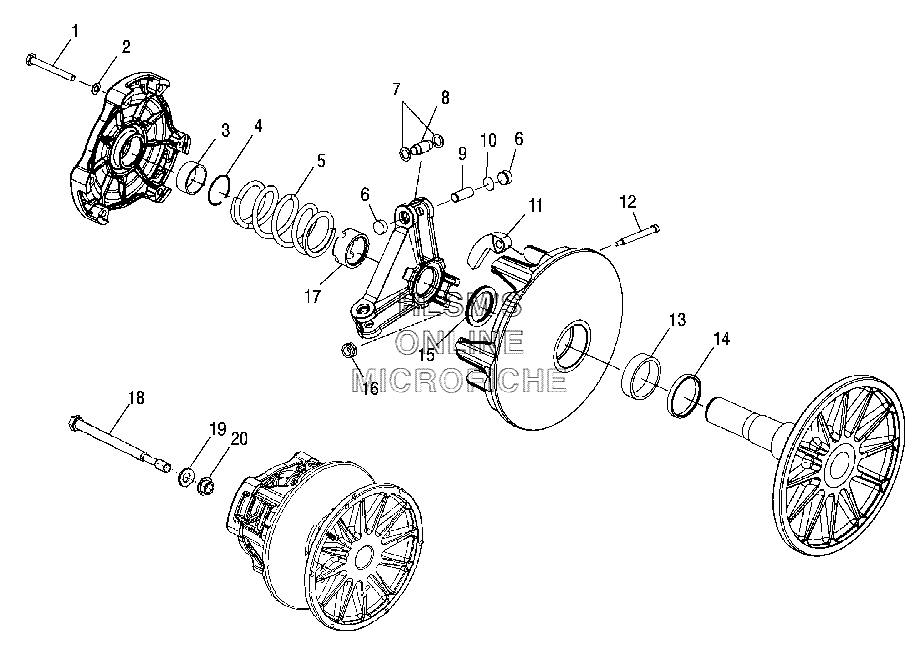

CLUTCH - DRIVE для Polaris 500 XC SP (S07NP5CS) - 2007 года выпуска
-
№АртикулНазвание
-
17512265 BOLTBOLT
-
27552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
33576516 BEARING, COVERBEARING, COVER
-
47710417 RING, RETAINING, COVERRING, RETAINING, COVER
-
57042083 SPRING CLUTCH (BLACK/GREEN)SPRING CLUTCH (BLACK/GREEN)
-
65430445 BUTTON, GUIDEBUTTON, GUIDE
-
75430945 WASHERWASHER
-
81321622 ROLLER AND BUSHING ASSYROLLER AND BUSHING ASSY
-
95133079 PIN ROLLER (1'')PIN ROLLER (1'')
-
102200387 SHIM KIT, DRIVE CLUTCHSHIM KIT, DRIVE CLUTCH
-
111321684 WT/BUSHING ASSY.WT/BUSHING ASSY.
-
127515105 PIN, WEIGHT HARDENEDPIN, WEIGHT HARDENED
-
133576502 BEARING, SLEEVEBEARING, SLEEVE
-
145010188 INSERT, MOVEABLEINSERT, MOVEABLE
-
155210754 SPACER (.050)SPACER (.050)
-
155210753 SPACER (.032)SPACER (.032)
-
155242981 SPACER (.025)SPACER (.025)
-
155210752 SPACER (.020)SPACER (.020)
-
155134018 SPACER (.130)SPACER (.130)
-
167541906 NUT FLEXLOCNUT FLEXLOC
-
175020425 NUT, JAMNUT, JAM
-
187518412 SCREWSCREW
-
197556003 WASHERWASHER
-
205132441 WASHER, CLUTCH RETAINERWASHER, CLUTCH RETAINER
-
-1321928 DRIVE CLUTCH ASSY, BASIC (LESS 5, 11)DRIVE CLUTCH ASSY, BASIC (LESS 5, 11)
