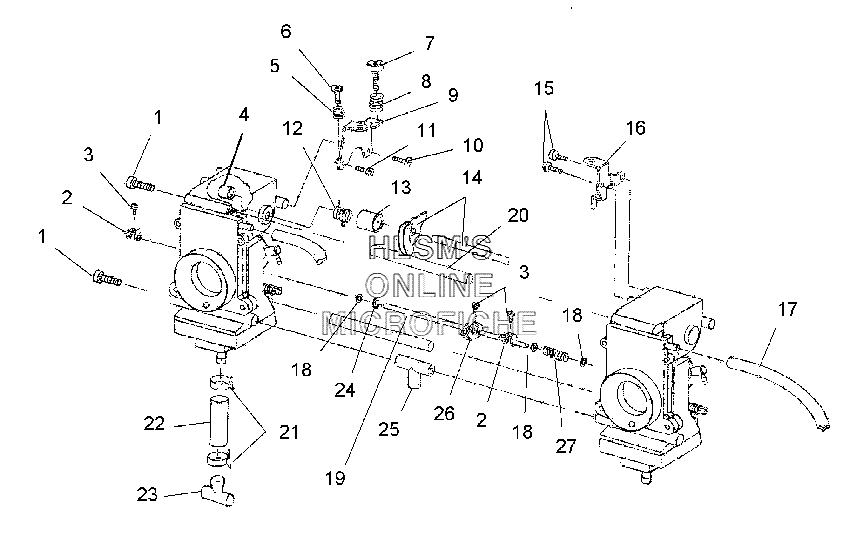

CAREBURETOR ASSEMBLY для Polaris 500 XC SP (S07NP5CS) - 2007 года выпуска
-
№АртикулНазвание
-
13130834 BOLTBOLT
-
23130832 LEVERLEVER
-
33130833 SCREWSCREW
-
43140032 RINGRING
-
53130817 SPRINGSPRING
-
63130816 SCREWSCREW
-
73131285 ADJUSTERADJUSTER
-
83131284 SPRINGSPRING
-
93131380 BRACKETBRACKET
-
103130810 SCREWSCREW
-
113130809 SCREWSCREW
-
123130950 SPRINGSPRING
-
133130853 RINGRING
-
143131370 SHAFT ASSYSHAFT ASSY
-
153130821 SCREWSCREW
-
163130820 BRACKETBRACKET
-
173130826 HOSEHOSE
-
183130842 PACKING, SHAFTPACKING, SHAFT
-
193130840 SHAFTSHAFT
-
203130852 RINGRING
-
217080003 CLAMP, HOSECLAMP, HOSE
-
228350017-600 FUEL, LINE (ETHER/RED) (5/16")FUEL, LINE (ETHER/RED) (5/16")
-
235431893 PLUG, TRAPPLUG, TRAP
-
243130839 E RINGE RING
-
253131374 NIPPLE ASSYNIPPLE ASSY
-
263130819 LEVER, STARTERLEVER, STARTER
-
273130841 SPRING, SHAFTSPRING, SHAFT
-
1253444 CARBURETOR ASSYCARBURETOR ASSY
