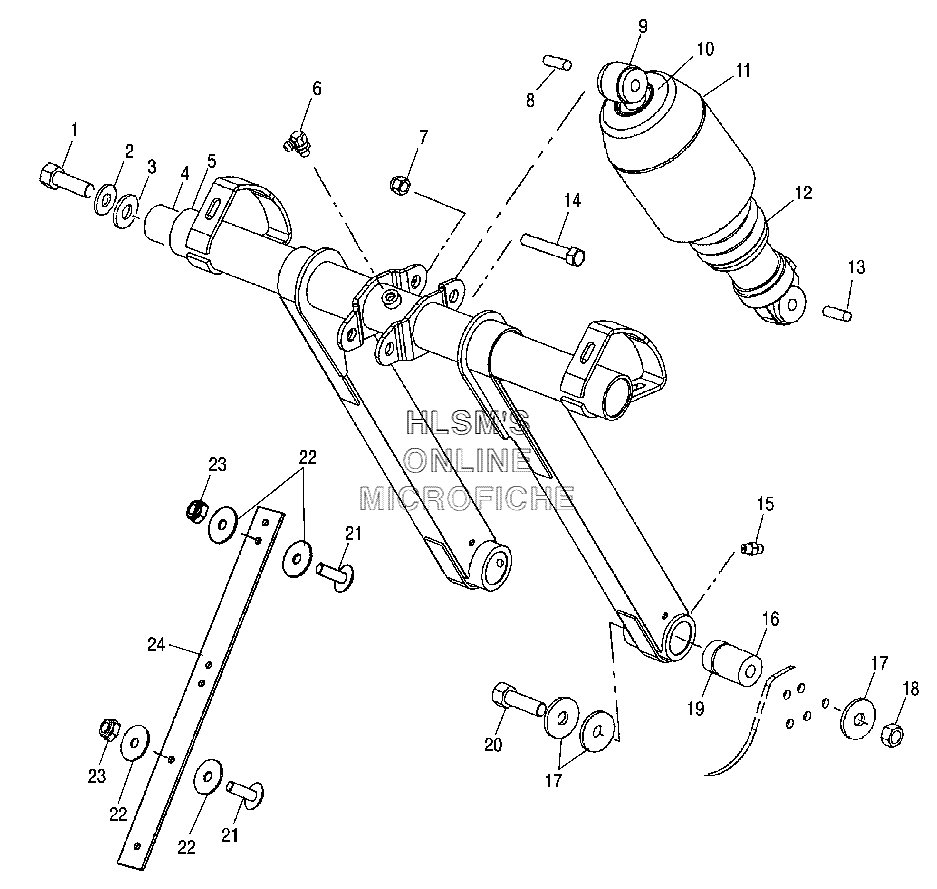

SUSPENSION - FRONT TORQUE ARM ASSEMBLY для Polaris 500 XC SP (S07NP5CS) - 2007 года выпуска
-
№АртикулНазвание
-
17517435 SCREWSCREW
-
27552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
37555893 WASHER, FLATWASHER, FLAT
-
45132067 SHAFT (UPPER)SHAFT (UPPER)
-
51541779-067 WELD ARM, TORQUE (FRONT/BLACK)WELD ARM, TORQUE (FRONT/BLACK)
-
67080510 FITTING, ZERKFITTING, ZERK
-
77542439 NUT, NYLOKNUT, NYLOK
-
85333905 SLEEVESLEEVE
-
97041975 SHOCK F/T IFPSHOCK F/T IFP
-
105020618 RETAINER, SPRINGRETAINER, SPRING
-
115433503 SHIELD SPRINGSHIELD SPRING
-
127041914-067 SPRING, COMP (150#/175#) (BLACK)SPRING, COMP (150#/175#) (BLACK)
-
135333906 SLEEVESLEEVE
-
147515415 SCREWSCREW
-
157080424 FITTING, LUBRICATIONFITTING, LUBRICATION
-
165133308 SHAFTSHAFT
-
177556156 WASHERWASHER
-
187547066 NUTNUT
-
195412022 O-RINGO-RING
-
207512597 BOLTBOLT
-
217517313 SCREWSCREW
-
227556175 WASHERWASHER
-
237542344 NUT, NYLOKNUT, NYLOK
-
245412140 STRAP LIM, FRONTSTRAP LIM, FRONT
Все узлы модели:
- BRAKE ASSEMBLY
- CARBURETOR - LOWER
- CARBURETOR - UPPER
- CAREBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - MAGNETO ASSEMBLY W/ COIL
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- FRAME - CHASSIS
- FUEL SYSTEM
- HANDLEBAR ASSEMBLY W/ CONTROLS
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ HEADLING
- HOOD ASSEMBLY W/ WINDSHIELD
- NOSEPAN ASSEMBLY #1
- NOSEPAN ASSEMBLY #2
- OIL TANK W/ AIR BOX ASSEMBLY
- PISTON AND CRANKSHAFT
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STARTER - RECOIL ASSEMBLY
- STEERING LINKAGE
- STEERING POST - HOOP
- SUSPENSION - FRONT SHOCK TRACK
- • SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - FRONT W/ STEERING
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - SHOCK IFS
- TOOL KIT
- WATER PUMP
