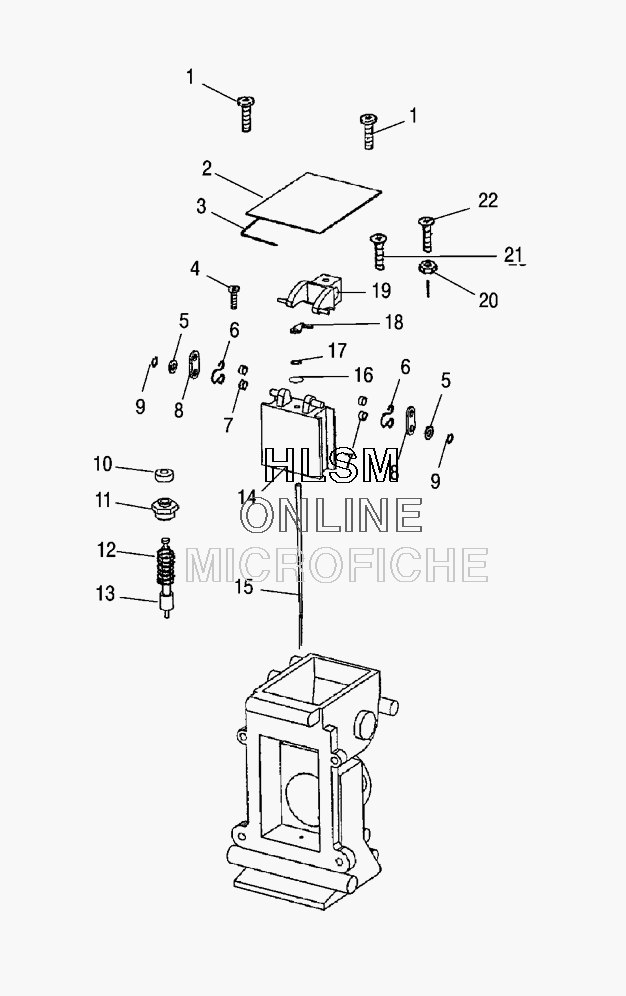

CARBURETOR - UPPER для Polaris 600 IQ RACER AND EURO (S08MX6JS/JE) - 2008 года выпуска
-
№АртикулНазвание
-
1203644 ASM-CARB TM40ASM-CARB TM40
-
13130951 SCREWSCREW
-
23130872 CAP, TOPCAP, TOP
-
33130871 GASKETGASKET
-
43130844 SCREWSCREW
-
53130846 WASHER, PACKINGWASHER, PACKING
-
63130856 CLIPCLIP
-
73130845 RINGRING
-
83130857 PLATEPLATE
-
93130847 E-RINGE-RING
-
103130831 CAP, RUBBERCAP, RUBBER
-
113130830 HOLDER, GUIDEHOLDER, GUIDE
-
123130829 SPRINGSPRING
-
133130828 PLUNGER ASM./258PLUNGER ASM./258
-
143130940 VALVE, PISTON 1.5VALVE, PISTON 1.5
-
153130794 JET, NEEDLE, (J8-9FH04-57)JET, NEEDLE, (J8-9FH04-57)
-
163130867 PACKINGPACKING
-
173130868 E-RINGE-RING
-
183130843 PLATEPLATE
-
193130855 LEVER ASM.LEVER ASM.
-
193130849 LEVER ASM.LEVER ASM.
-
203130848 RINGRING
-
213130854 SCREWSCREW
-
223130850 SCREWSCREW
