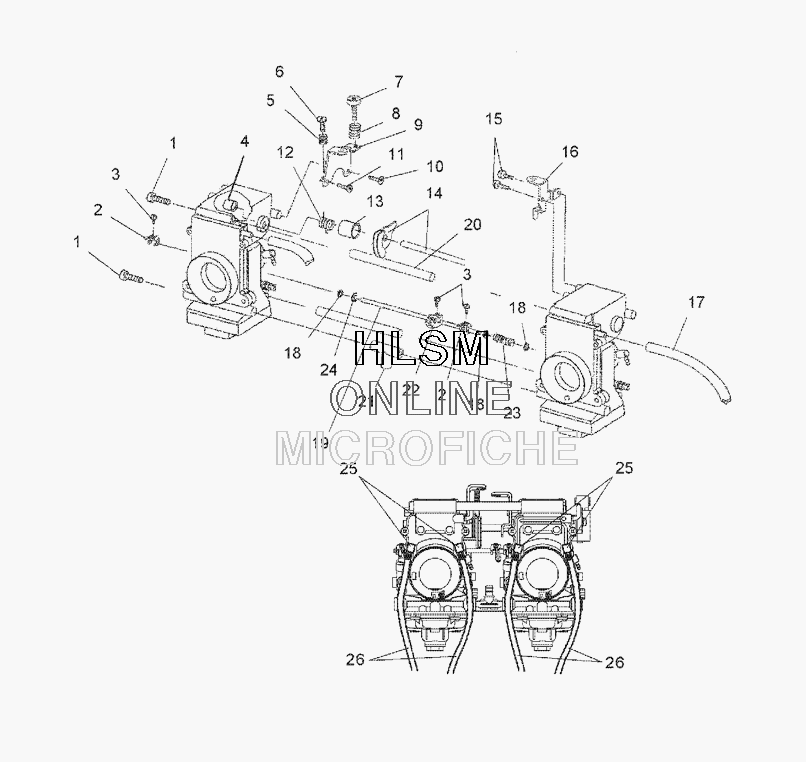

CARBURETOR ASSEMBLY для Polaris 600 IQ RACER AND EURO (S08MX6JS/JE) - 2008 года выпуска
-
№АртикулНазвание
-
-1203644 ASM-CARB TM40ASM-CARB TM40
-
13130834 BOLTBOLT
-
23130832 LEVERLEVER
-
33130833 SCREWSCREW
-
43140032 RINGRING
-
53130817 SPRINGSPRING
-
63130816 SCREWSCREW
-
73131285 ADJUSTERADJUSTER
-
83131284 SPRINGSPRING
-
93131380 BRACKETBRACKET
-
103130810 SCREWSCREW
-
113130809 SCREWSCREW
-
123130950 SPRINGSPRING
-
133130853 RINGRING
-
143131370 ASM-SHAFTASM-SHAFT
-
153130821 SCREWSCREW
-
163130820 BRACKETBRACKET
-
173131137 HOSEHOSE
-
183130842 PACKING, SHAFTPACKING, SHAFT
-
193130840 SHAFTSHAFT
-
203130852 RINGRING
-
213131374 ASM-NIPPLEASM-NIPPLE
-
223130819 LEVER, STARTERLEVER, STARTER
-
233130841 SPRING, SHAFTSPRING, SHAFT
-
243130839 E-RINGE-RING
-
253131694 FITTING-VENTFITTING-VENT
-
263130826 HOSEHOSE
