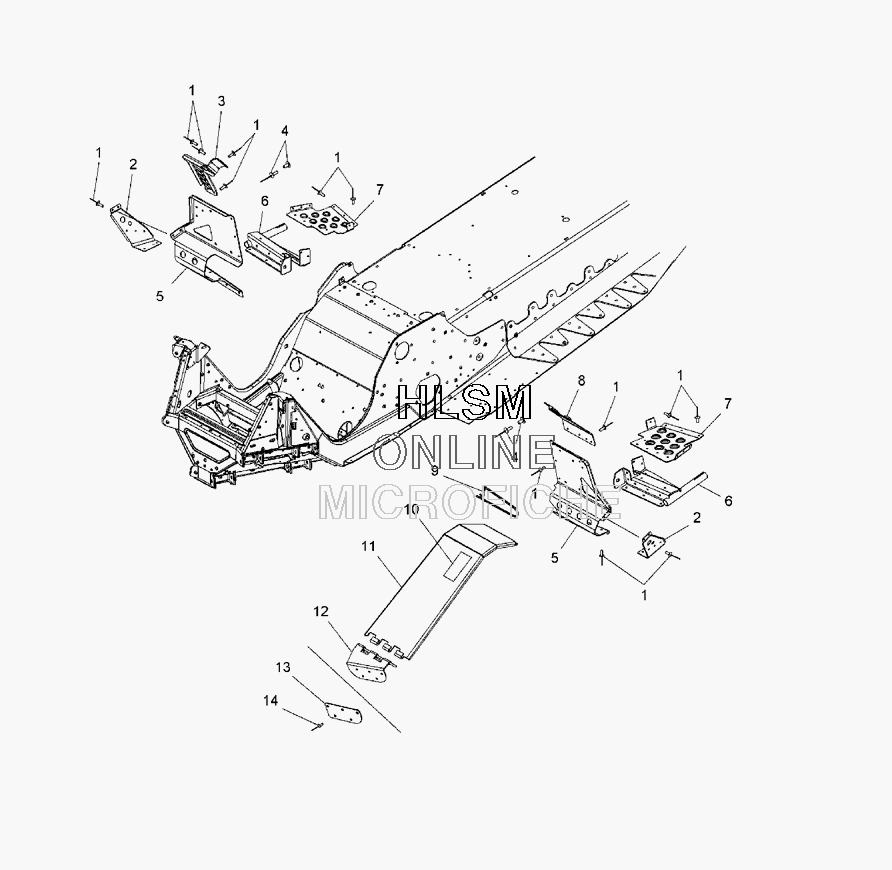

CHASSIS ASSEMBLY W/FOOTRESTS для Polaris 600 IQ RACER AND EURO (S08MX6JS/JE) - 2008 года выпуска
-
№АртикулНазвание
-
17661637 RIVET, INTERLOCKRIVET, INTERLOCK
-
25248308 SUPPORT-FOOTREST/PAN MNT, LEFT HANDSUPPORT-FOOTREST/PAN MNT, LEFT HAND
-
25248309 SUPPORT-FOOTREST/PAN MNT, RIGHT HANDSUPPORT-FOOTREST/PAN MNT, RIGHT HAND
-
35249983 SHIELD-HOOP/UPPER FOOTRESTSHIELD-HOOP/UPPER FOOTREST
-
47621601 ASM-RIVET/RETAINERASM-RIVET/RETAINER
-
55249697 FOOTREST-UPPER, LEFT HANDFOOTREST-UPPER, LEFT HAND
-
55249698 FOOTREST-UPPER, RIGHT HANDFOOTREST-UPPER, RIGHT HAND
-
61015344 WELD-SUPPORT FOOTREST, LEFT HANDWELD-SUPPORT FOOTREST, LEFT HAND
-
61015345 WELD-SUPPORT FOOTREST, RIGHT HANDWELD-SUPPORT FOOTREST, RIGHT HAND
-
75248549 FOOTREST-LOWER, LEFT HANDFOOTREST-LOWER, LEFT HAND
-
75248550 FOOTREST-LOWER, RIGHT HANDFOOTREST-LOWER, RIGHT HAND
-
85250566 BRKT-CLUTCH GUARD REARBRKT-CLUTCH GUARD REAR
-
97080698 PIN, CLUTCH GUARDPIN, CLUTCH GUARD
-
107079297 DECALDECAL
-
115240027 COVER-CLUTCH, GUARDCOVER-CLUTCH, GUARD
-
121010007 ASM., BRACKET, CLUTCH GUARDASM., BRACKET, CLUTCH GUARD
-
135249060 PLATE-BACKER, CLUTCH GUARDPLATE-BACKER, CLUTCH GUARD
-
147621402 RIVET, POPRIVET, POP
