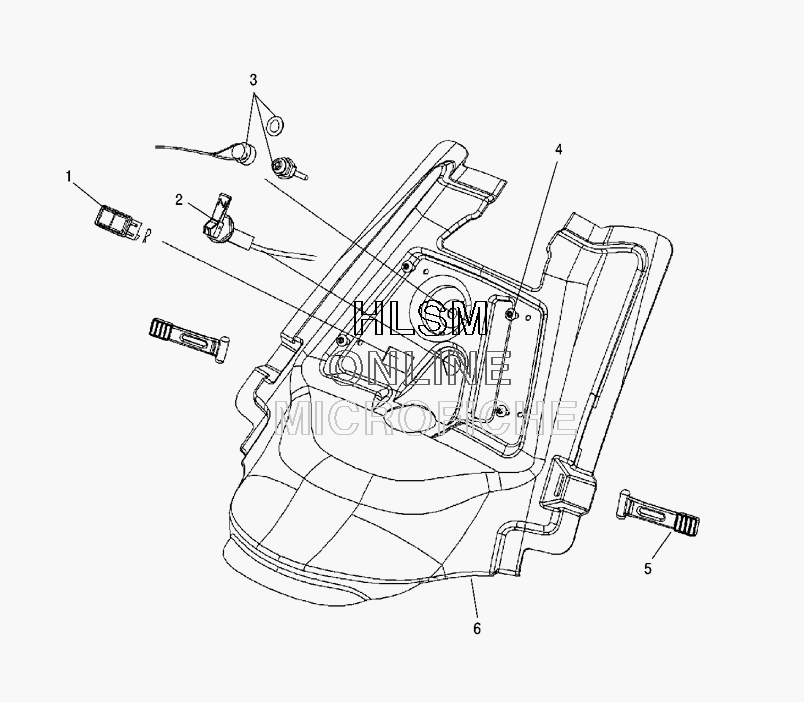

CONSOLE для Polaris 600 IQ RACER AND EURO (S08MX6JS/JE) - 2008 года выпуска
-
№АртикулНазвание
-
27081476 CABLE-CHOKE, 40MM RACECABLE-CHOKE, 40MM RACE
-
22201439 KIT, CHOKE LEVER REPAIRKIT, CHOKE LEVER REPAIR
-
27080922 NUT, CHOKE, M24X1.5 THD, M29 HEXNUT, CHOKE, M24X1.5 THD, M29 HEX
-
47517560 SCREWSCREW
-
55433150 STRAPSTRAP
-
65436359-070 CONSOLE, RACE, BLACKCONSOLE, RACE, BLACK
Все узлы модели:
- AIR BOX
- BRAKE ASSEMBLY
- CARBURETOR - LOWER
- CARBURETOR - UPPER
- CARBURETOR ASSEMBLY
- CHAINCASE ASSEMBLY
- CHASSIS ASSEMBLY W/FOOTRESTS
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- • CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CRANKSHAFT ASSY. W/ PISTON
- CYLINDER ASSEMBLY
- DECALS
- DRIVE TRAIN ASSEMBLY W/ DRIVE BELT
- ELECTRICAL - IGNITION SYSTEM
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FRAME - CHASSIS
- FUEL SYSTEM
- HANDLEBAR ASSEMBLY
- HARNESS W/ ACCESSORIES
- HOOD - FOAM/FOIL
- HOOD ASSEMBLY W/ WINDSHIELD
- HOOD MOUNTING W/ FRONT BUMPER
- NOSEPAN AND SIDEPANELS
- RECOIL STARTER
- SEAT W/ TAILLIGHT
- SKI ASSEMBLY
- STEERING - LOWER
- STEERING POST - HOOP
- SUSPENSION - FRONT
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SUSPENSION - WALKER EVANS - FRONT TRACK SHOCK
- SUSPENSION - WALKER EVANS - REAR TRACK SHOCK
- SUSPENSION - WALKER EVANS - SHOCK IFS
- THROTTLE ASSEMBLY
- TOOL KIT
- WATER PUMP
