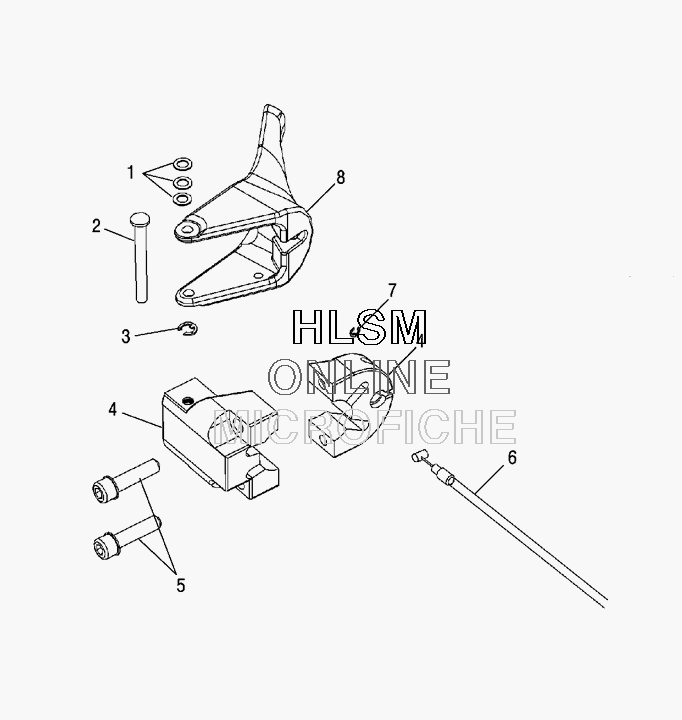

THROTTLE ASSEMBLY для Polaris 600 IQ RACER AND EURO (S08MX6JS/JE) - 2008 года выпуска
-
№АртикулНазвание
-
17555730 WASHERWASHER
-
27661624 PIN-RETAININGPIN-RETAINING
-
37710401 RING, RETAININGRING, RETAINING
-
45133636 BLOCK-THROTTLE, REARBLOCK-THROTTLE, REAR
-
45133639 BLOCK-THROTTLE, FRONTBLOCK-THROTTLE, FRONT
-
57512290 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
67081467 CABLE-THROTTLE, 600 RACECABLE-THROTTLE, 600 RACE
-
77710503 RING, RETAININGRING, RETAINING
-
85432970 THROTTLE, LEVER, 35.5MMTHROTTLE, LEVER, 35.5MM
-
82010271 ASM-LEVER, HTR, HI/LO 35.5MMASM-LEVER, HTR, HI/LO 35.5MM
-
82010313 ASM-THROTTLE CONT'L, 35.5MM, ALMASM-THROTTLE CONT'L, 35.5MM, ALM
