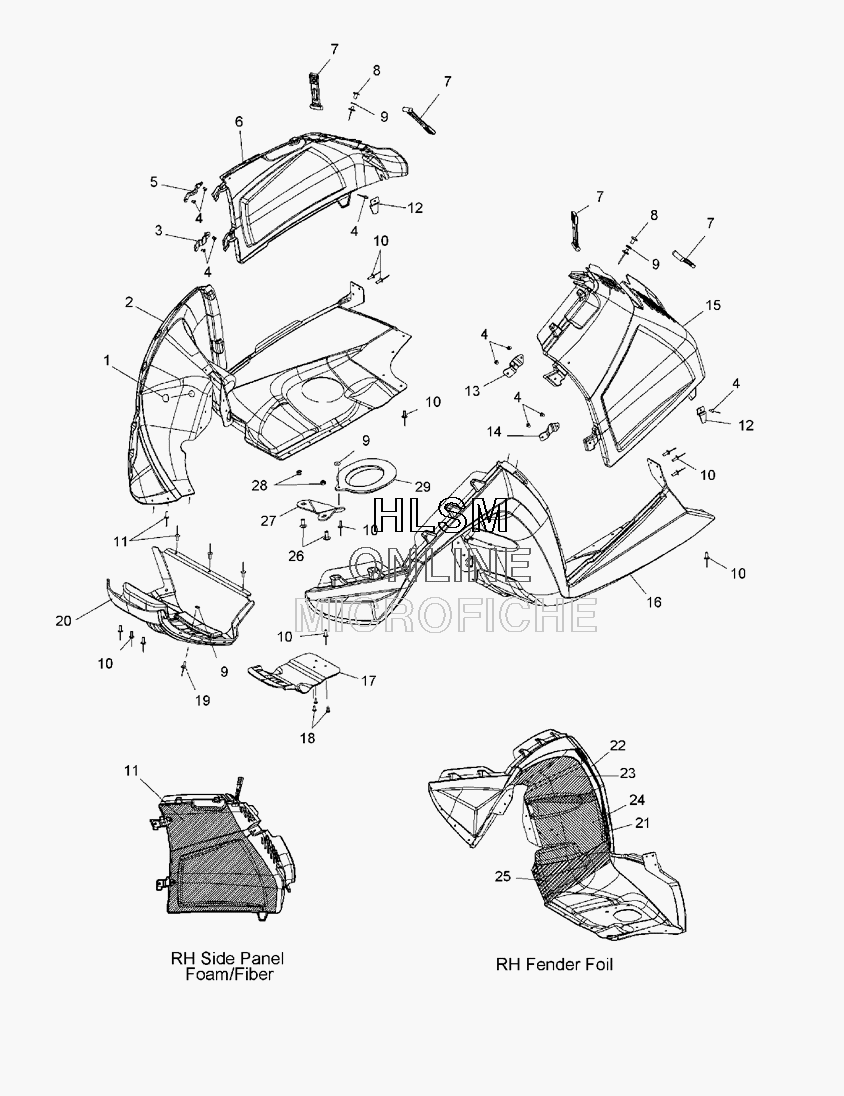

NOSEPAN AND SIDEPANELS для Polaris 600 IQ RACER AND EURO (S08MX6JS/JE) - 2008 года выпуска
-
№АртикулНазвание
-
15410582 PLUG, CATCH HOLEPLUG, CATCH HOLE
-
22633609-070 ASM-FENDER, W/FOIL, RIGHT HAND, BLACK (INCL. 3-5, 7-70, 21-25)ASM-FENDER, W/FOIL, RIGHT HAND, BLACK (INCL. 3-5, 7-70, 21-25)
-
35248923 SUPPORT-SIDE PANEL, LOWER, RIGHT HANDSUPPORT-SIDE PANEL, LOWER, RIGHT HAND
-
47621472 RIVET(50) *RIVET(50) *
-
55249036 SUPPORT-SIDE PANEL, UPPER, RIGHT HANDSUPPORT-SIDE PANEL, UPPER, RIGHT HAND
-
62633613-070 ASM-SIDE PANEL, RIGHT HAND, BLACK (INCL. 3-5, 7-9, 11, 12)ASM-SIDE PANEL, RIGHT HAND, BLACK (INCL. 3-5, 7-9, 11, 12)
-
75433150 STRAPSTRAP
-
81015421 ASM-RIVET/RETAINER (50)ASM-RIVET/RETAINER (50)
-
97555904 WASHERWASHER
-
107621467 RIVET, BLIND(50) *RIVET, BLIND(50) *
-
115813245 FOAM/FIBER-SIDEPANEL, RIGHT HANDFOAM/FIBER-SIDEPANEL, RIGHT HAND
-
125249245 BRKT-SIDE PANEL TABBRKT-SIDE PANEL TAB
-
135249035 SUPPORT-SIDE PANEL, UPPER, LEFT HANDSUPPORT-SIDE PANEL, UPPER, LEFT HAND
-
145248922 SUPPORT-SIDE PANEL, LOWER, LEFT HANDSUPPORT-SIDE PANEL, LOWER, LEFT HAND
-
152633287-070 ASM-SIDE PANEL, LEFT HAND, BLACK (INCL. 4, 7, 8, 12-14)ASM-SIDE PANEL, LEFT HAND, BLACK (INCL. 4, 7, 8, 12-14)
-
165436889-070 FENDER-LEFT HAND, BLACKFENDER-LEFT HAND, BLACK
-
175436882-070 PLATE-SKID, BLACKPLATE-SKID, BLACK
-
187518352 SCR-1/4X20X3/4, TR/TX, NYLONSCR-1/4X20X3/4, TR/TX, NYLON
-
197621418 RIVET, POPRIVET, POP
-
205436358-070 NOSEPAN-BSC, RACE, BLACKNOSEPAN-BSC, RACE, BLACK
-
215811948 FOIL-4.5X1.0FOIL-4.5X1.0
-
225812255 FOIL-10.00X1.00FOIL-10.00X1.00
-
235812837 FOIL-FENDER, UPPER, RIGHT HANDFOIL-FENDER, UPPER, RIGHT HAND
-
245812838 FOIL-FENDER, LOWER, RIGHT HANDFOIL-FENDER, LOWER, RIGHT HAND
-
255813308 FOIL-FENDER BOTTOM RIGHT HANDFOIL-FENDER BOTTOM RIGHT HAND
-
267512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
275251444 DEFLECTOR-SNOW, EXHAUSTDEFLECTOR-SNOW, EXHAUST
-
287542321 NUT, FLANGENUT, FLANGE
-
295436066 BOOT-EXHAUST, OUTLETBOOT-EXHAUST, OUTLET
