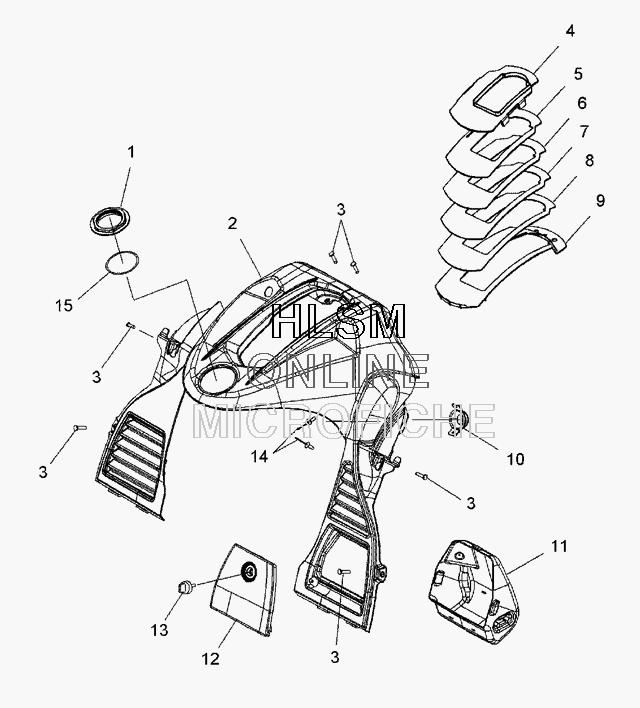

CONSOLE для Polaris 600 IQ TOURING AND EURO (S09PT6HS/HE) - 2009 года выпуска
-
№АртикулНазвание
-
15435156 NUT-FILLER NECKNUT-FILLER NECK
-
22633279-070 ASM-CONSOLE, SDI, BLACK (INCL WARNING DECALS)ASM-CONSOLE, SDI, BLACK (INCL WARNING DECALS)
-
37517916 SCR-1/4-20X3/4-TR/TX/TAP-MSCR-1/4-20X3/4-TR/TX/TAP-M
-
45436222 COVER-ADJ STEERING, TOPCOVER-ADJ STEERING, TOP
-
55436223 PLATE-ADJ STEERING, 1PLATE-ADJ STEERING, 1
-
65436224 PLATE-ADJ STEERING, 2PLATE-ADJ STEERING, 2
-
75436225 PLATE-ADJ STEERING, 3PLATE-ADJ STEERING, 3
-
85436226 PLATE-ADJ STEERING, 4PLATE-ADJ STEERING, 4
-
95436227 COVER-ADJ STEERING, BOTTOMCOVER-ADJ STEERING, BOTTOM
-
105248563 BRKT-ROPE GUIDEBRKT-ROPE GUIDE
-
115435944 COMPARTMENT-STORAGE, RIGHT HANDCOMPARTMENT-STORAGE, RIGHT HAND
-
122632858-070 DOOR ASM, CONSOLE, RIGHT HAND, BLACKDOOR ASM, CONSOLE, RIGHT HAND, BLACK
-
135435207-070 KEY-BLACK (INCL LOCK)KEY-BLACK (INCL LOCK)
-
147621323 POP RIVETPOP RIVET
-
155411174 O-RINGO-RING
