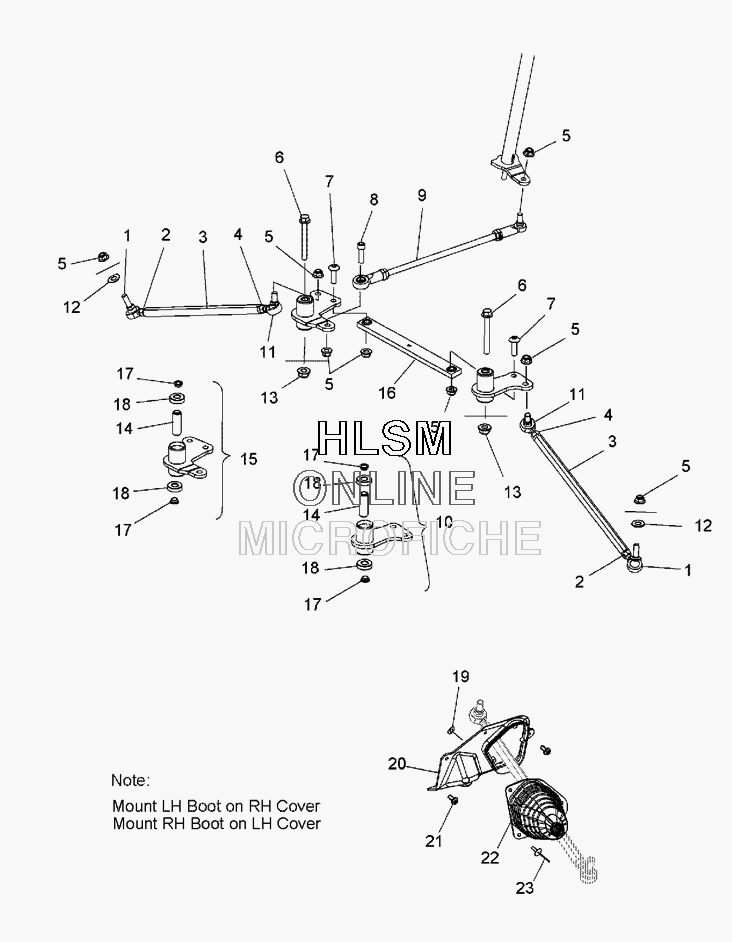

STEERING - LOWER для Polaris 600 IQ TOURING AND EURO (S09PT6HS/HE) - 2009 года выпуска
-
№АртикулНазвание
-
17061164 ROD END-3/8, PL, 75°, 1.00, RIGHT HANDROD END-3/8, PL, 75°, 1.00, RIGHT HAND
-
27542401 NUT, HEX, RIGHT HANDNUT, HEX, RIGHT HAND
-
35334667 ROD-TIEROD-TIE
-
47542424 NUT, LEFT HANDNUT, LEFT HAND
-
57547263 NUT-3/8-24 NYLOKNUT-3/8-24 NYLOK
-
67518277 SCR-3/8-16X3.25 FLG HG5 ZSCR-3/8-16X3.25 FLG HG5 Z
-
77518372 SCR-3/8-24X1.25 TX/TRUSS, GR5-YSCR-3/8-24X1.25 TX/TRUSS, GR5-Y
-
87515545 BOLTBOLT
-
91822921 ASM-DRAGLINK, 14.78 FIXEDASM-DRAGLINK, 14.78 FIXED
-
101821419 ASM., ARM-IDLERASM., ARM-IDLER
-
117061163 ROD END-3/8, PL, 75° LEFT HAND, 750 STUDROD END-3/8, PL, 75° LEFT HAND, 750 STUD
-
127555806 WASHER, FLAT(10)WASHER, FLAT(10)
-
137547180 NUT-FLANGED, 3/8-16 NYLON-ZNUT-FLANGED, 3/8-16 NYLON-Z
-
145135452 SPACER-TUBE PITMAN/IDLER ARMSSPACER-TUBE PITMAN/IDLER ARMS
-
151822624 PITMAN ARM ASM (INCL 17-19)PITMAN ARM ASM (INCL 17-19)
-
167061152 LINK-FIXED, 9.30LINK-FIXED, 9.30
-
175132106 BUSHING-REDUCER, 12MM TO .385BUSHING-REDUCER, 12MM TO .385
-
183514320 BEARING-BALL, 600ILLUBEARING-BALL, 600ILLU
-
197555904 WASHERWASHER
-
205436574 COVER-TIE ROD BOOT, LEFT HANDCOVER-TIE ROD BOOT, LEFT HAND
-
205436575 COVER-TIE ROD BOOT, RIGHT HANDCOVER-TIE ROD BOOT, RIGHT HAND
-
217512084 SCREWSCREW
-
225433532 BOOT, TIE ROD, LEFT HANDBOOT, TIE ROD, LEFT HAND
-
225433533 BOOT, TIE ROD, RIGHT HANDBOOT, TIE ROD, RIGHT HAND
-
237621467 RIVET, BLINDRIVET, BLIND
