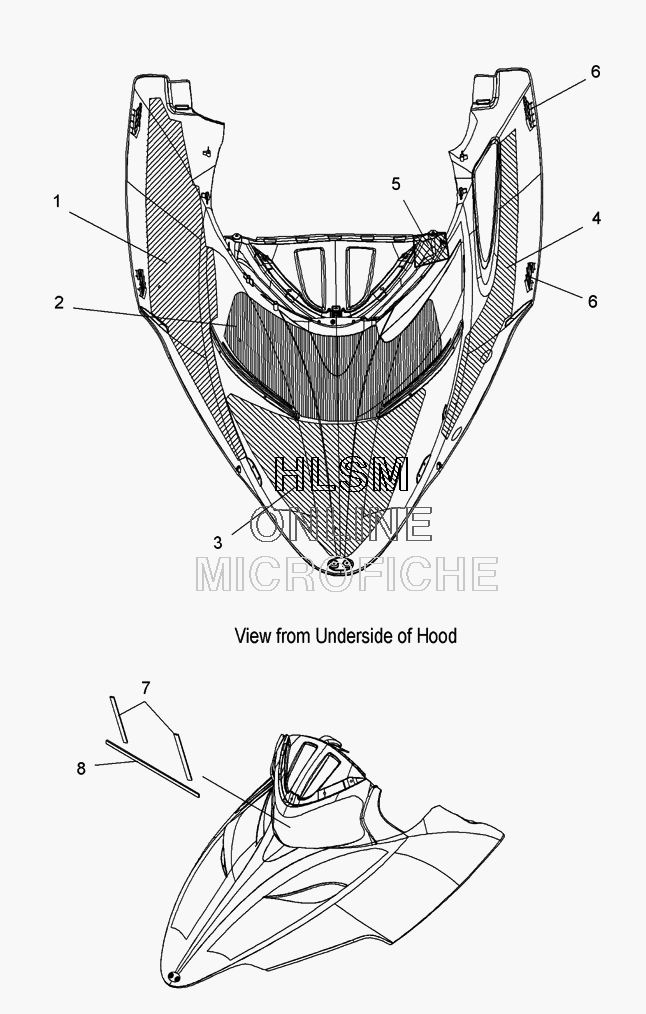

HOOD - FOAM/FOIL для Polaris 600 IQ TOURING AND EURO (S09PT6HS/HE) - 2009 года выпуска
-
№АртикулНазвание
-
15813139 FOAM-HOOD SIDE, LEFT HANDFOAM-HOOD SIDE, LEFT HAND
-
25813137 FOAM/FIBER-HOOD, UPPER, HI TEMPFOAM/FIBER-HOOD, UPPER, HI TEMP
-
35813138 FOAM/FIBER-HOOD, LOWER, HI TEMPFOAM/FIBER-HOOD, LOWER, HI TEMP
-
45812872 FOAM-HOOD SIDE, RIGHT HANDFOAM-HOOD SIDE, RIGHT HAND
-
55812929 FABRIC-HEAT RESFABRIC-HEAT RES
-
65812834 FOIL, RIB, SIDE PANELFOIL, RIB, SIDE PANEL
-
75813125 FOAM-INSTRUMENT POD, SEAL, 10''FOAM-INSTRUMENT POD, SEAL, 10''
-
85813126 FOAM-HEADLIGHT SEAL, 54''FOAM-HEADLIGHT SEAL, 54''
Все узлы модели:
- AIR INTAKE SYSTEM
- BACKREST W/GRAB HANDLE
- BATTERY W/CABLES
- BRAKE ASSEMBLY
- BUMPER - REAR W/HITCH AND SNOWFLAP
- CHAINCASE ASSEMBLY
- CHASSIS - FRONT
- CLUTCH - PRIMARY
- CLUTCH - SECONDARY
- CLUTCH GUARD W/COVER
- CONSOLE
- COOLING SYSTEM
- CRANKCASE ASSEMBLY
- CYLINDER ASSEMBLY
- DECALS
- DRIVESHAFT W/JACKSHAFT
- ENGINE MOUNTING W/ SHORT BLOCK
- EXHAUST SYSTEM
- EXHAUST VALVES W/SOLENOID
- FENDER - L.H.
- FENDER - R.H.
- FOOTRESTS
- FRONT BUMPER W/NOSEPAN
- FUEL TANK
- GAUGE - MULTI FUNCTION
- HANDLEBAR ASSEMBLY
- HEADLIGHT AND TAILLIGHT
- • HOOD - FOAM/FOIL
- HOOD - SCREENS - HINGES
- HOOD ASSEMBLY W/ HEADLIGHT
- IGNITION SYSTEM
- OIL PUMP W/LINES
- OIL TANK ASSEMBLY
- PISTON AND CRANKSHAFT
- REED VALVE W/THROTTLE BODY ADAPTOR
- SEAT W/ TAILLIGHT
- SENSORS - SWITCHES - COMPONENTS
- SIDE PANELS
- SKI ASSEMBLY
- SNOW SKIRTS
- STARTER - RECOIL ASSEMBLY
- STARTING MOTOR
- STEERING - LOWER
- STEERING POST - ADJUSTABLE
- SUSPENSION - FRONT
- SUSPENSION - FRONT SHOCK TRACK (7043328)
- SUSPENSION - FRONT TORQUE ARM ASSEMBLY
- SUSPENSION - IFS SHOCK (7043289)
- SUSPENSION - RAIL MOUNTING
- SUSPENSION - REAR
- SUSPENSION - REAR SHOCK TRACK (7043327)
- SUSPENSION - REAR TORQUE ARM ASSEMBLY
- SWAY BAR
- THROTTLE BODY ASSEMBLY W/FUEL LINES
- THROTTLE CONTROL ASSEMBLY
- TOOL KIT W/CARGO STORAGE BAG
- WATER PUMP
- WINDSHIELD W/ MIRRORS
- WIRING HARNESS
