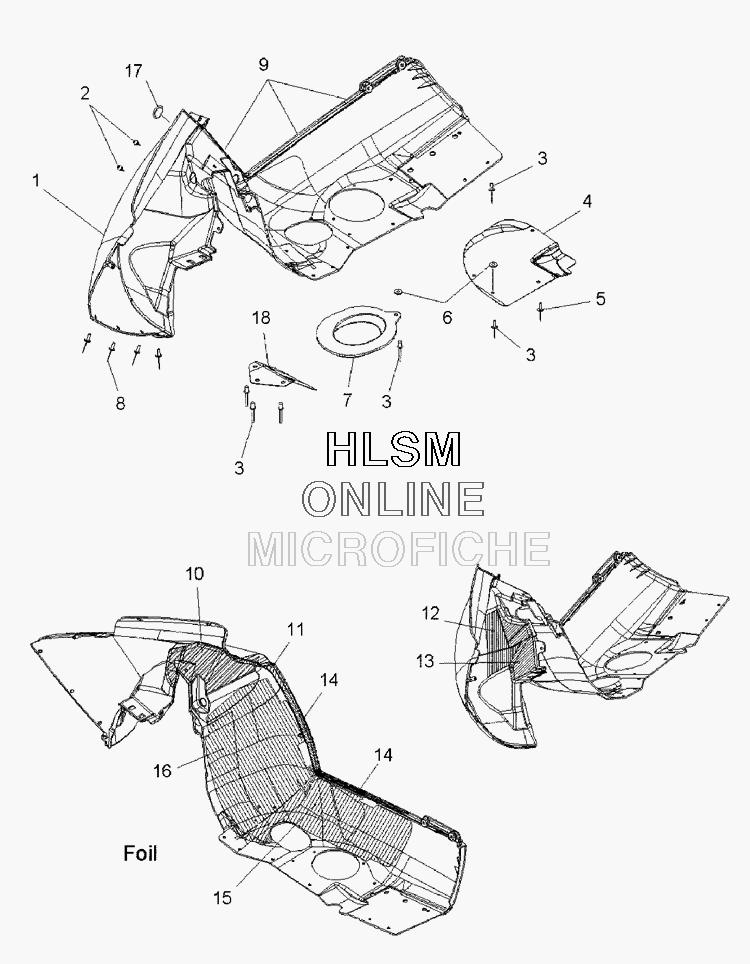

FENDER - R.H. для Polaris 600 IQ TOURING AND EURO (S09PT6HS/HE) - 2009 года выпуска
-
№АртикулНазвание
-
12633289-070 ASM-FENDER, RIGHT HAND, 600 TOUR, BLACKASM-FENDER, RIGHT HAND, 600 TOUR, BLACK
-
15521697-350 SEAL-BULB, .375, 350CMSEAL-BULB, .375, 350CM
-
25412465 BUMPER-GROMMET, 1/4''BUMPER-GROMMET, 1/4''
-
37621467 RIVET, BLINDRIVET, BLIND
-
45249116-329 PLATE-PROTECTION, FENDER, BLACKPLATE-PROTECTION, FENDER, BLACK
-
57661136 RVT-3/16 (.376-.500) ST-ST-LF-ZRVT-3/16 (.376-.500) ST-ST-LF-Z
-
67556044 WASHER, (10)WASHER, (10)
-
75436066 BOOT-EXHAUST, OUTLETBOOT-EXHAUST, OUTLET
-
87661859 RIVET-NYLON, 1/4 (.06-.50) AL-BRIVET-NYLON, 1/4 (.06-.50) AL-B
-
95521697-350 SEAL-BULB, .375, 350CMSEAL-BULB, .375, 350CM
-
105812746 FOIL-FENDER, RIGHT HANDFOIL-FENDER, RIGHT HAND
-
115812255 FOIL-10.00X1.00FOIL-10.00X1.00
-
125812744 FOIL-FENDER, RIGHT HANDFOIL-FENDER, RIGHT HAND
-
135812745 FOIL-FENDER, RIGHT HANDFOIL-FENDER, RIGHT HAND
-
145812971 FOAM/FIBER-HOOD, LOWER, HI TEMPFOAM/FIBER-HOOD, LOWER, HI TEMP
-
155812973 FOAM/FIBER, FEND LOWER, RIGHT HAND, HITMPFOAM/FIBER, FEND LOWER, RIGHT HAND, HITMP
-
165812972 FOAM/FIBER, FEND UPPER, RIGHT HAND, HITMPFOAM/FIBER, FEND UPPER, RIGHT HAND, HITMP
-
175411009 PLUG, HOLEPLUG, HOLE
-
185249759 DEFLECTOR-EXHAUST, W/HOLES, 600DEFLECTOR-EXHAUST, W/HOLES, 600
