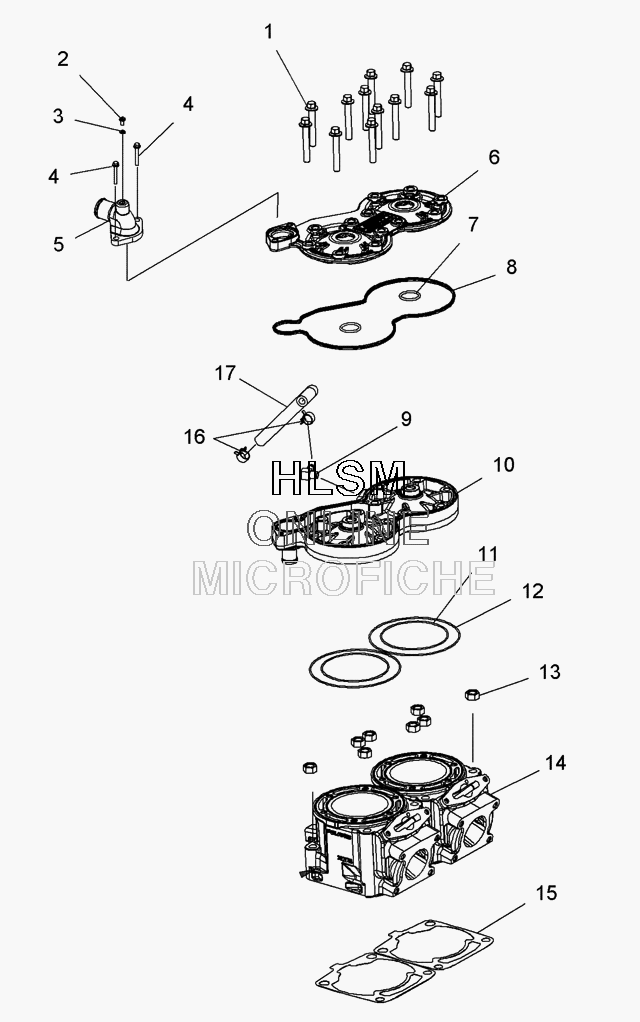

CYLINDER ASSEMBLY для Polaris 600 IQ TOURING AND EURO (S09PT6HS/HE) - 2009 года выпуска
-
№АртикулНазвание
-
17517533 SCREW, M8X1.25X55SCREW, M8X1.25X55
-
27517679 SCREW, M6X1.0 X 13, SL/HX/FL-ZSCREW, M6X1.0 X 13, SL/HX/FL-Z
-
37555998 WASHER, FLATWASHER, FLAT
-
47516822 SCREWSCREW
-
55136512 COVER-THERMOSTAT M6 BLEED MACHCOVER-THERMOSTAT M6 BLEED MACH
-
65631822-329 CVR-HEAD, SDI, BLACKCVR-HEAD, SDI, BLACK
-
75411411 O-RINGO-RING
-
85413036 SEAL-GLAND, HEADSEAL-GLAND, HEAD
-
97052157 FITTING-5/16''HOSE BARB, 1/8-90°FITTING-5/16''HOSE BARB, 1/8-90°
-
103021736 HEAD-CYL 77.25 TWIN SDI MACHHEAD-CYL 77.25 TWIN SDI MACH
-
115410932 O-RINGO-RING
-
125411359 O-RINGO-RING
-
137547013 NUT(10)NUT(10)
-
143021718 CYLINDER-77.25CYLINDER-77.25
-
155813312 GASKETGASKET
-
167081432 CLAMP-HOSE, 17/32, GREENCLAMP-HOSE, 17/32, GREEN
-
175413080 HOSE-COOLANT, THROTTLE BODYHOSE-COOLANT, THROTTLE BODY
